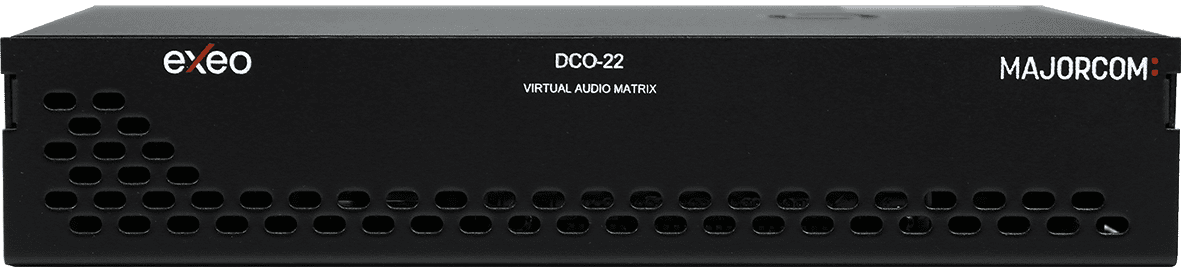

DCO-22

IP Audio Interface (Cobranet) for EXEO

IP audio interface (Cobranet) for EXEO

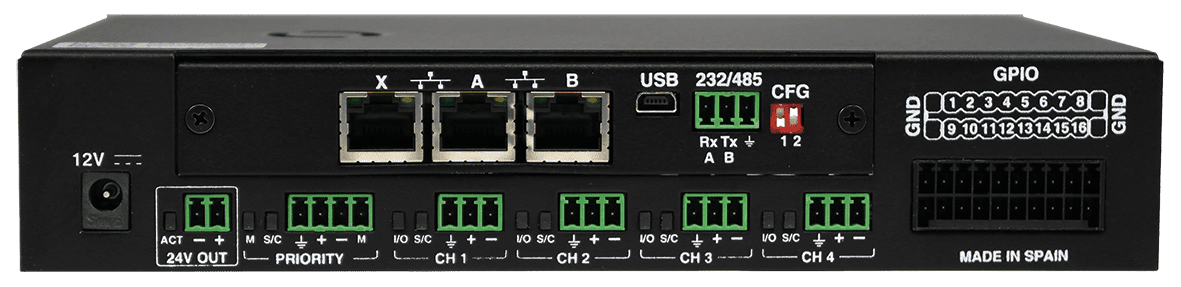

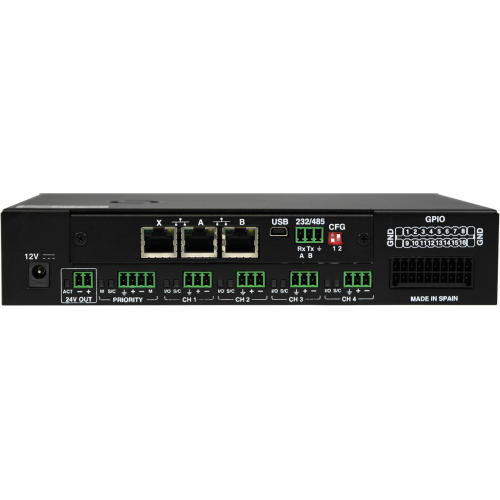

• The DCO-22 is an IP audio interface with 4 symmetrical audio ports that can be configured as inputs or outputs according to the needs of the installation: (2 x 2), (4 x 0) or (0 x 4) .
• The DCO-22 allows you to transport 4 configurable audio streams into Ethernet inputs or outputs via the COBRANET® protocol, including a redundant Ethernet interface, which offers the possibility of designing distributed, redundant and flexible audio systems.

Specifications

ATT output24V 50mA, Monitored and protected
Audio ConnectorsEuroblock connector
Audio inputAnalog, balanced
Consumption<20W
Dimensions (W x H x D)218 x 155 x 42mm (1U height, width ½ rack unit)
DSP48kHz 24bits
Ethernet y Cobranet Interface2 x RJ-45. Redundant
FinishBlack - RAL 9005
Frequency response20Hz-20kHz +/-0,05dB
GPIO16 I/O configurable TTL 5V
Input sensibility1Vp, 0,707Vrms
Phantom12V (in all inputs, configurable)
Power source110 - 240V ~ 50/60 Hz
S/N ratio>94dB @1Vrms
Sensibility+20dB / 0dB / -10dB
Weight1kg
