EVP

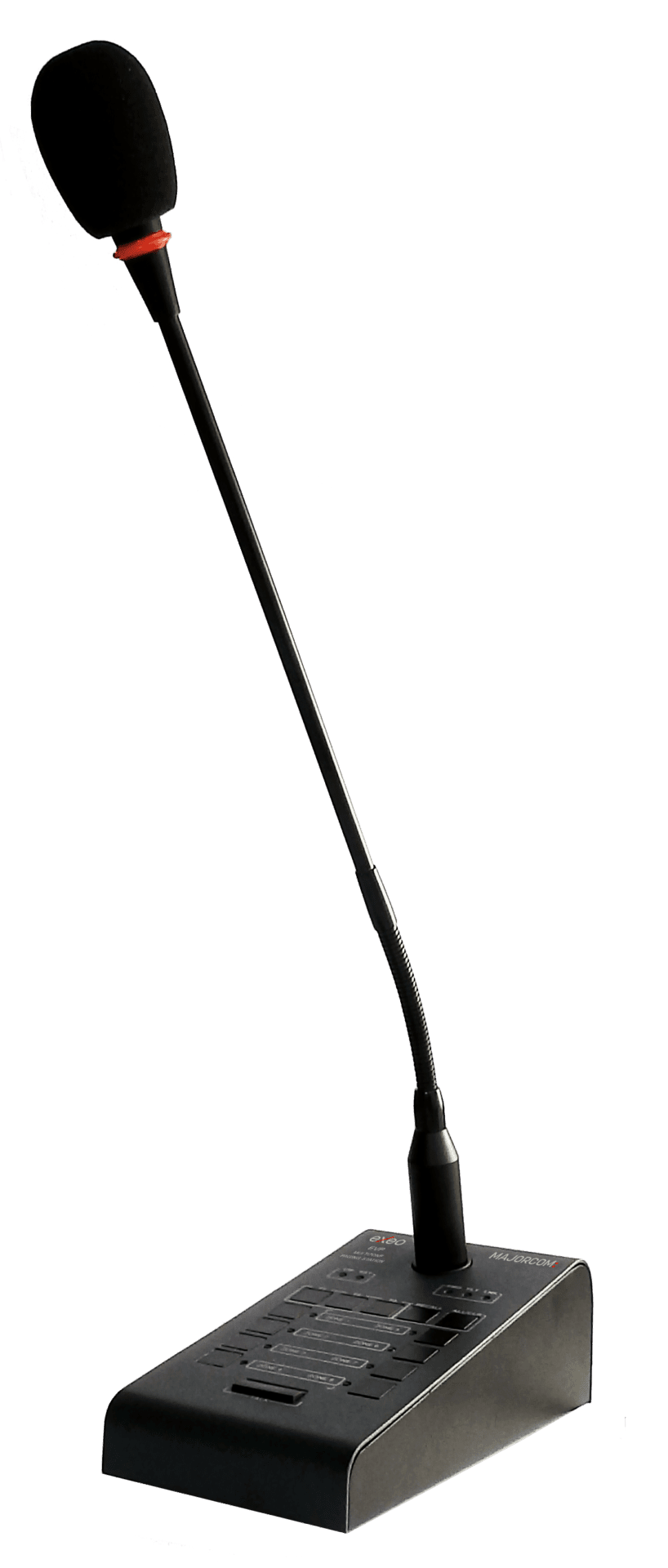

Selective Calls paging microphone 8 Zones for Exeo and Exeone System

Selective Calls paging microphone 8 Zones for Exeo and Exeone System

• 8 zone programmable buttons
• Event activator
• LED indications for zone selection
• LED indicators of the state of the exeo system (EMG, FLT, or LINK)
• LED lines of busy line and waiting for lyrics
• Direct power supply from EXEO using the UTP cable
• Up to 8 micro-EVP desks can be connected via the EXEO ACSI bus via a CAT5 / 6 cable.
• The ACSI bus allows a maximum distance of 1km and provides priority levels between devices connected to the bus.
• It has 8 buttons for calling calls to 8 zones, and additional zone buttons can be added by EVP / E units.
• It has a "General Call" button, a busy line signal and an automatic lock function.
• Wiring of micro cascading desks (Daisy-Chain).
• The EVP has an "Event" button that combined with the zone buttons allows a wide variety of system functions.

Specifications

ACSI Bus2 x Balanced Audio (In+Loop)1Vp, 0,707Vrms. 10 KΩ, 2 x RJ-45 Female, Total 800m
Aux Mic Input1 x Unbalanced input, 15mV, 47 KΩ, 1 x Minijack Mono 2,5mm
Buttons3 x programmable functions, 1 x recall, 1 x select / unselect all zones, 8 x zone selection, 1 x Talk
Consumption1A
Dimensions without gooseneck95 x 65 x 190 mm
DirectivityAxial with hipercardioid polar diagram response
FinishBlack - RAL 9005
Frequency response200- 15000 Hz (+/-2dB)
Gooseneck length350 mm
IndicatorsState: Emergency, Failure, Link, Busy, Busy Line, Conceded Word. 8 indicators Zone selected. Gooseneck includes illuminated ring for conceded word.
Operating condition-5 ºC to +45 ºC / 5% to 95% Relative Humidity (no condensation)
Power source5V dc, Type A/B MiniUSB connector
S/N ratio> 98dB, A-weighted
Sensitivity-43 dB. at 1kHz
TransducerCondenser
Weight0,93 kg
