QD-4960

Professional, 4 Channels, 4x170W (8Ω) amplifier

Professional, 4 Channels, 4x170W (8Ω) amplifier

• The QD-4960 is a four-channels amplifier under 4Ω. Its quality of sound makes it ideal for a fixed or nomadic professional installation.

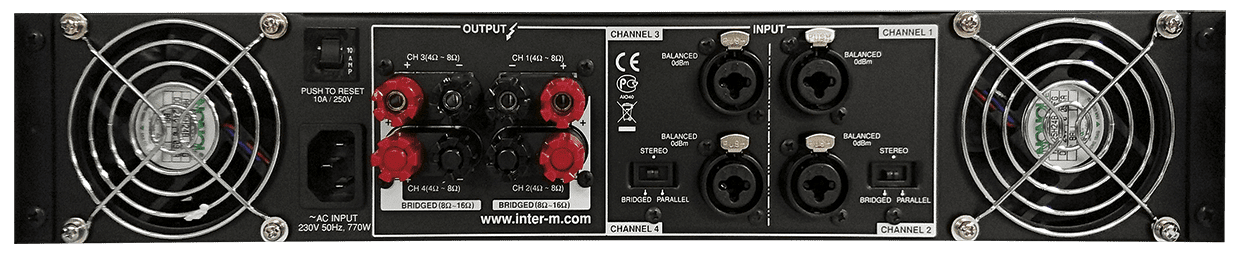

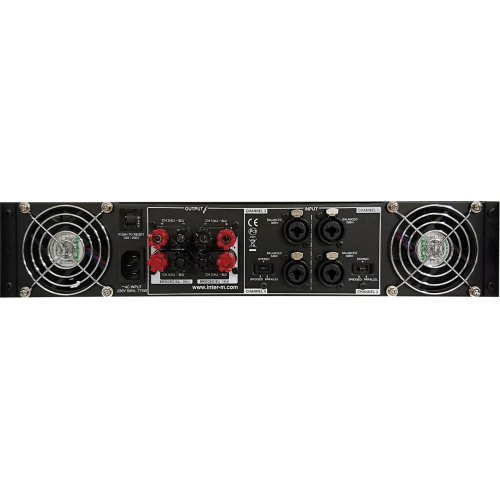

• The input connectors are XLR / TRS "Combo" type. Those of outputs are robust screw terminal blocks.
• Limiters are present on each channel to avoid distortions due to excessive signal levels.

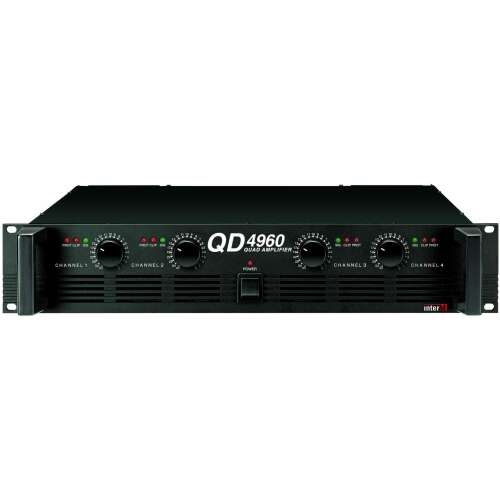

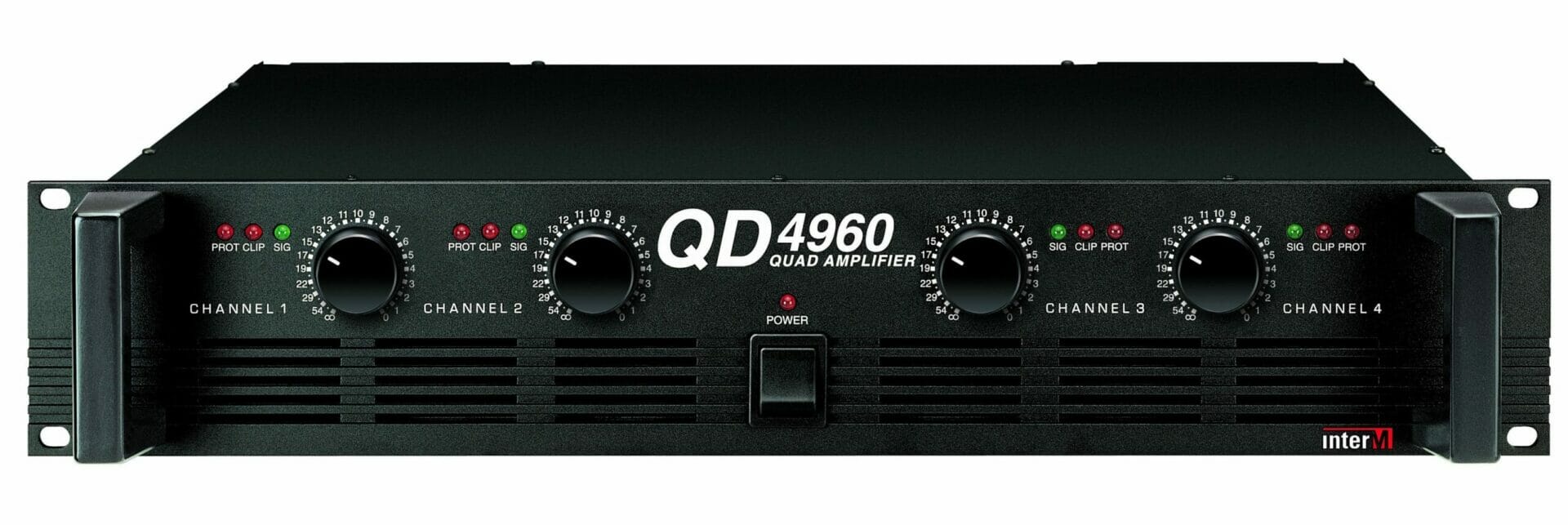

• It has a protective circuit at startup and POWER indicators, signal, protection and clip on the front panel.
• For more versatility, it can be used in stereo, double mono or mono bridged.

Specifications

Bandwidth (Hz) (LINE IN balanced)20 to 50,000
Dimensions (W x H x D) (mm)482 x 88 x 369
Input impedance20k? (Balance/Unbalance)
PowerQUAD RL=8? 4 x 170 W, QUAD RL=4? 4 x 240 W, BRIDGED STEREO RL=8? 2 x 480 W
Power consumption770W
Power source100-120V AC or 220-240VAC; 50/60Hz
Signal / Noise? 100dB
THDQUAD RL=8? ? 0.05%, QUAD RL=4? ? 0.07%, BRIDGED STEREO RL=8? ? 0.07%
Weight (Kg)17
