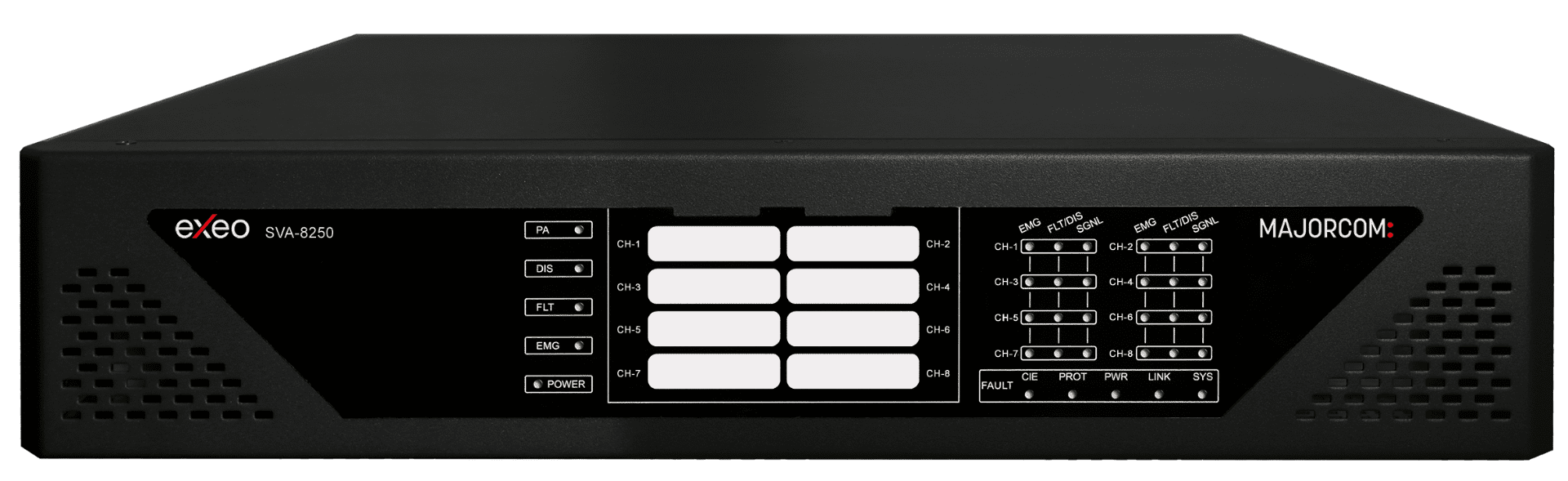

SVA-8250

Extension unit with 8x250W amps – 8 x 120Wrms (Total Max 960Wrms) – EN54-16

Extension unit with 8x250W amps for EXEO MVA-8120 – 8 x 120Wrms (Total Max 960Wrms) – EN54-16 system

• The SVA-8250 is an extension unit for the EXEO MVA-8120 EN 54-16 system.

• This extension unit equips the EXEO system with 8 additional zones because it includes 8 250 W class D power amplifier channels with 100 or 70 V.

• The audio signal is transmitted from the main unit to this extension unit via a cascade connection by FLEXNET and using the audio on Ethernet. This ensures maximum integrity and audio quality.

• The SVA-8250 extension is fully configurable from the EXEO-CONFIGURATOR software (included with EXEO). It is possible to configure the remote equipment within the EXEO network and create events, to perform actions in the system, triggered by conditions of: Input Level, Date and Time, UDP command, a GPIO or The EVS / EVP microphone button

Specifications

Accessories (Provided)2 x Rack mounting, Male Euroblock connectors, installation screws, 4 x Rubber foot, 1 x Power cable 2m (EU Type), 1 x Ethernet Cable 2m
Amplifier8 x 250W Class D (8 x125Wrms) @ 70/100V. Min. load per channel: 40 ?
ATT Control8 x Override 24V DC, 8 x 40mA, 2 Pin, Euroblock Type (4 pin connector)
Consumption900W max / 300W at 1/8 output power/ 40W Standby
Dimensions (W x H x D)483 x 88 x 455mm
DSPIntegrated. 48 kHz, 24 bits - 344 MIPS
Emergency Control Inputs10 x 0 - 5V DC, Monitored inputs, 2 Pin, Euroblock Type (4 pin connector)
Emergency Control Outputs2 x Relay contact Isolated Output, NO, Max 60V DC 130mA, 2 Pin Euroblock Type (4 pin connector)
Emergency Power Input1 x 20 - 28V DC, 32A, Fused (32A), 2 Pin, Euroblock Type (2 pin connector)
Emergency Power Status Inputs3 x NO - NC, 3 Pin, Euroblock Type
FinishBlack - RAL 9005
FlexNet/Cobranet3 x FlexNet Redundant (automatic switching), Ethernet10/100Mbits. Female RJ-45
Frequency response80 - 20.000Hz +/-3dB
Gain adjustment per channel-100dB -0dB, 1dB steps
Operating condition-5ºC to +45ºC / 5% to 95% Relative humidity (No condensation)
Power source110-120V / 220-240V~ 50/60Hz
Pre-amp Audio Outputs8 x Balanced audio 1Vp, 0,707Vrms. 100?, 3Pin Euroblock Type
ProtectionOver-temperature, DC, infrasonic, short circuit, slow start-up, overload. Start-up test
REC output1 x Balanced audio, 1Vp, 0,707Vrms. 100 ? / 0 - 5V DC output 100 ?, 4Pin, Euroblock Type
Signal / Noise>98dB, A-weighted
Spare Amplifier Inputs8 x 250W @ 70/100V 1, 2 Pin, Euroblock Type (4 pin connector)
Speaker Loop Input16 (8 dual) x No Voltage Contact inputs, 3 Pin, Euroblock Type
Speaker Outputs16 (8 dual managed lines) x 70 /100V. 2 Pin, Euroblock Type (4 pin connector)
THD< 0,05%
Weight15 kg
