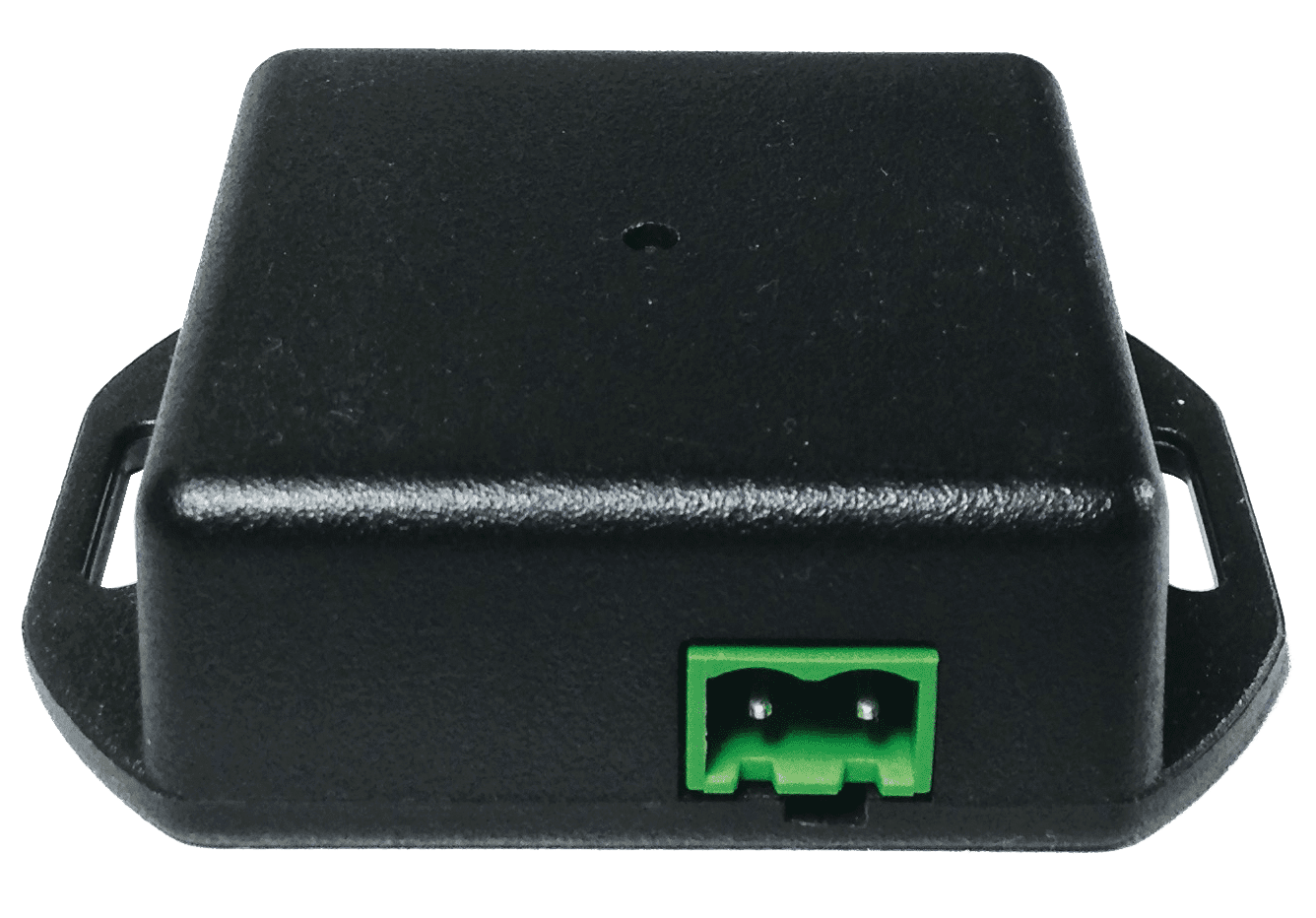

TFL-2

End of Line Element for Exeo & Exeone

Exeo & Exeone System End of Line Element - Without Line Return



  • The TFL-2 end-of-line element allows a precise measurement of the impedance of the speaker line (configurable charge 400R / 200R), in order to test the integrity of the line between the speakers and the PA / PA system / GO.
  • It controls the line to the last speaker without return of cable even if the line has a low load with just one or two speakers.

Specifications

Input100V or 70V PA line input. MAX. consumption 15mA 2 pin Euroblock type
Selector2 positions 400R/200R
Enclosure MaterialABS Black RAL 9005
Weight35g
Dimension (LxHxP)66.3 x 20 x 50mm
Accessories (Provided)Male Euroblock Connector

Video
