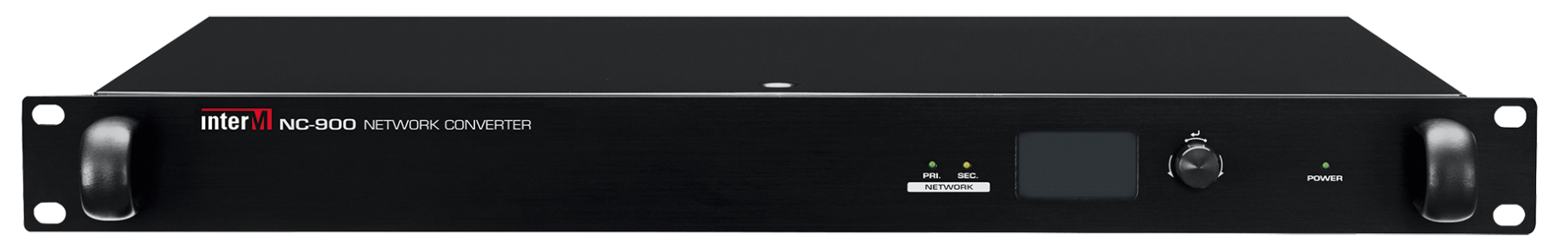

NC-900

Boitier de commutaion IP pour système NCS

Boitier de commutaion IP pour système NCS

Téléchargements

Fichiers DAO

NC-900_CAD

Spécifications techniques

Audio input1 Channel
Audio output1 Channel
Input sensibility0dBV
Frequency response20Hz ~ 20kHz
THD< 0,1%
S/N ratio> 80dB
Scanning frequency44.1, 48kHz
ContactsIntput : 16 Channel – Output : 16 Channell
Communication10/100/1000 Base-T (RJ-45)
Operating temperature0°C ~ +40°C
Power source24V DC, 350mA
Dimensions (W x H x D)482 x 44 x 280mm
Weight3kg
