SWITCH POE 5P

Switch 5 ports Gigabit dont 4 ports PoE

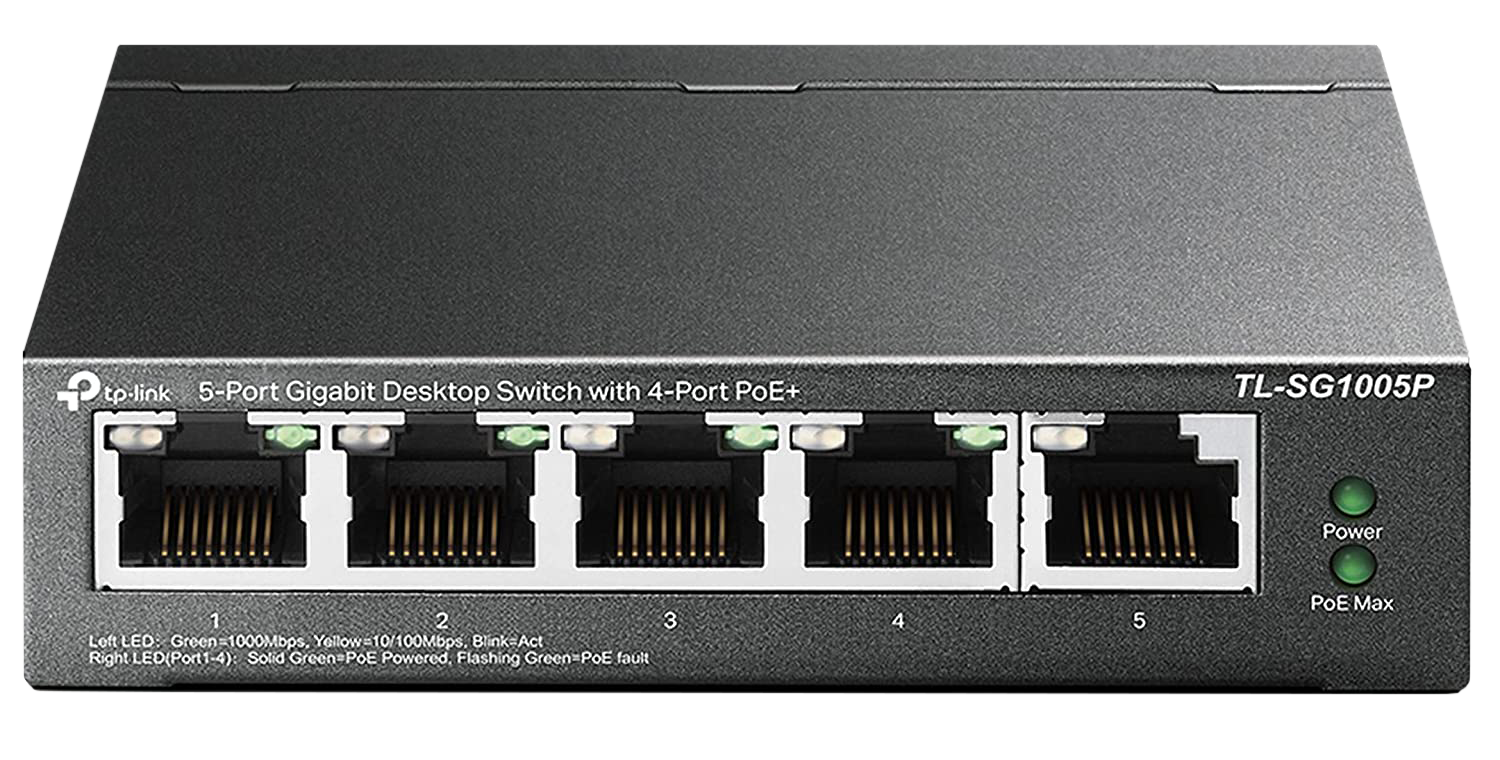

  • 5 ports RJ45 Gigabit 10/100/1000 Mbps
  • 4 ports PoE permettant le transfert des données et l’alimentation via un seul câble
  • Conforme à la norme IEEE 802.3af
  • Prise en charge de l’alimentation PoE jusqu’à 15,4 W pour chaque port PoE
  • Prise en charge de l’alimentation PoE jusqu’à 56 W pour tous les ports PoE
  • Ne nécessite aucune configuration. Facile à utiliser.

Détails du produit

Fiche Technique

SWITCH-POE-5P-FR

Spécifications techniques

NormesIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af
Interface5 x 10/100/1000Mbps RJ45 Ports avec 4 x Ports PoE+ (Port 1 à Port 4) / AUTO Negotiation/AUTO MDI/MDIX
Interface réseau10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m) / 100BASE-TX: UTP category 5, 5e cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m) / 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m)
Consommation maximale4.26 watts (max. sans périphérique connecté) / 63.31 watts (max. avec 56w de périphérique(s) connecté(s))
PoE Ports (RJ45)Conforme à la norme 802.3 af / PoE Ports : Port1- Port4 / Power Supply : 56W
Méthode de transfertStore-And-Forward
Bande passante en retour10Gbps
Tableau d’adresses MAC2K
Nombre de ventilateursSans ventilateur

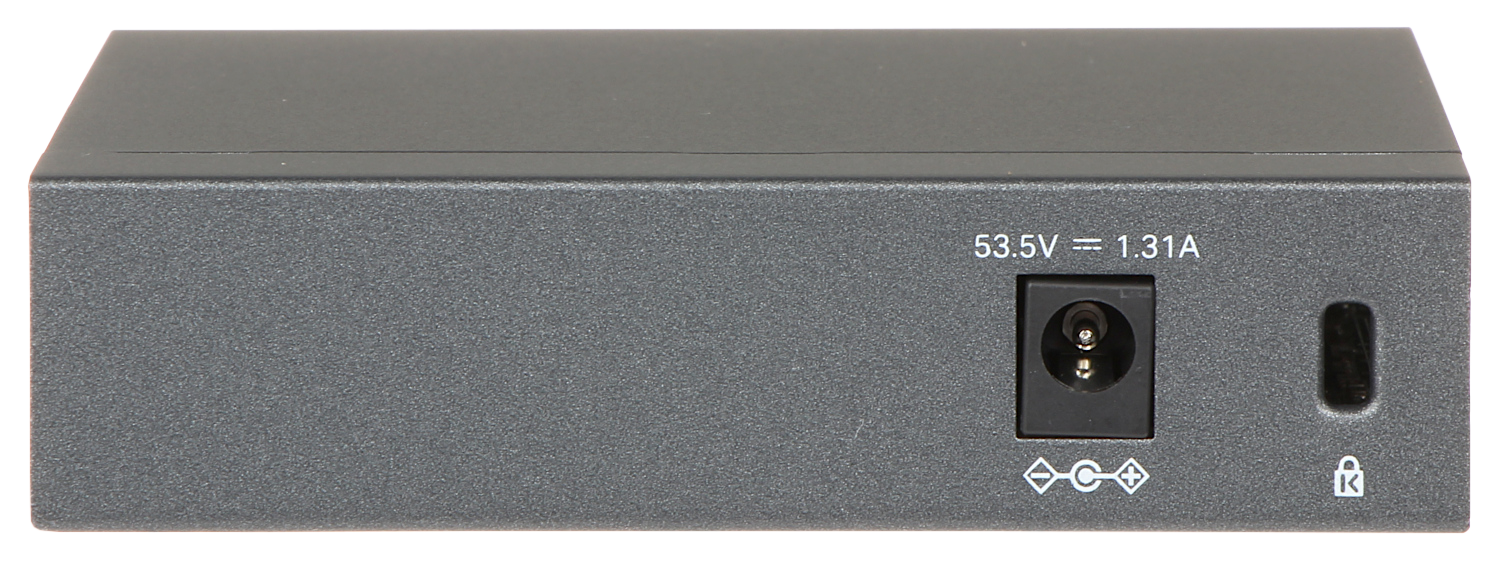

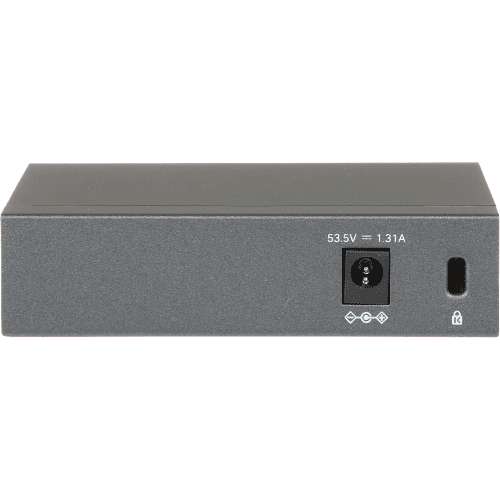

Alimentation externeAdaptateur d’alimentation externe (sortie : 48 VDC / 1,25 A)
LEDPower, Link/Act, PoE Status, PoE Max
Dimensions (LxPxH)99.8 x 98 x 25 mm
CertificationFCC, CE, RoHS
Contenu de l’emballageSWITCH POE 5P, Adaptateur secteur, Guide utilisateur
EnvironnementTempérature de fonctionnement : 0°C~40°C / Température de stockage: -40°C~70°C / Humidité de fonctionnement : 10% ~ 90%RH, sans condensation / Humidité de stockage: 5%~90%RH, sans condensation
