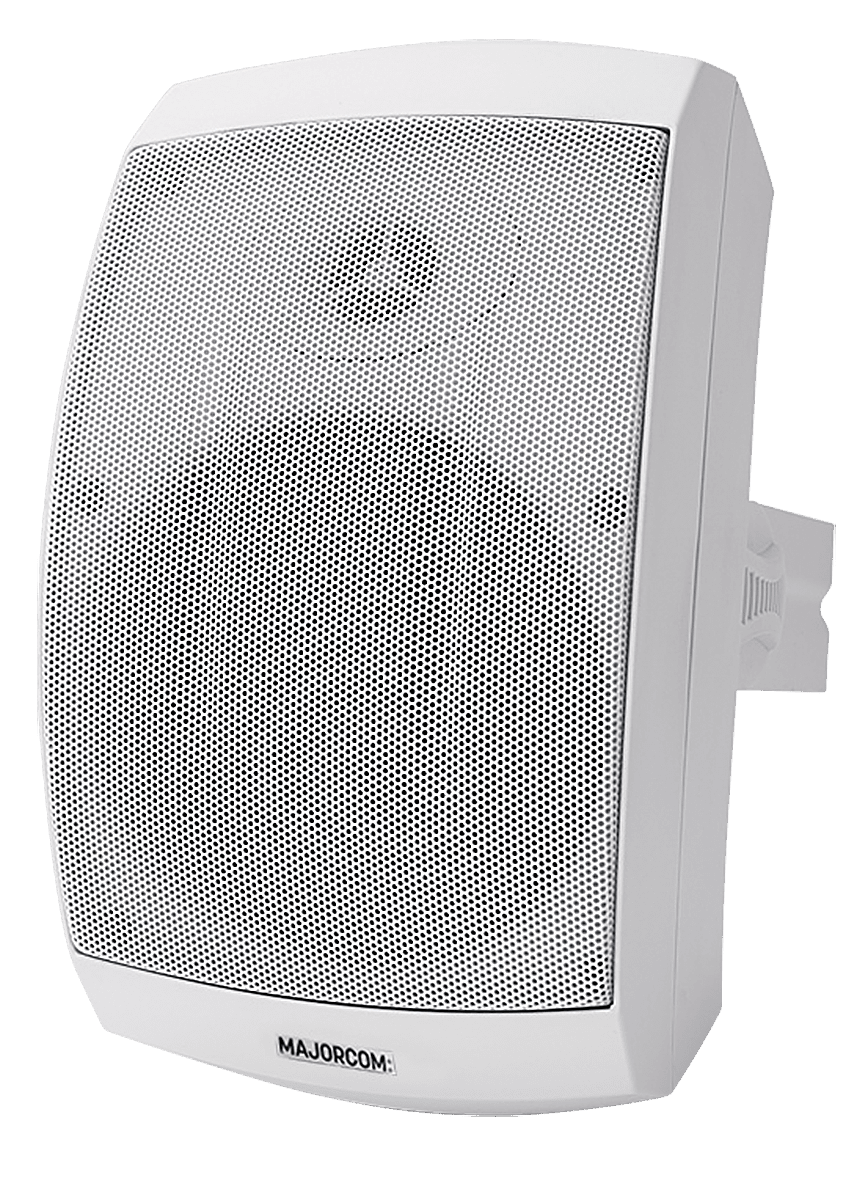

- This Hi-Fi quality 2-way wall speaker is appropriate for broadcasting music and voice in small and medium-sized installations: reception halls, restaurants, pubs, meeting rooms, shopping malls

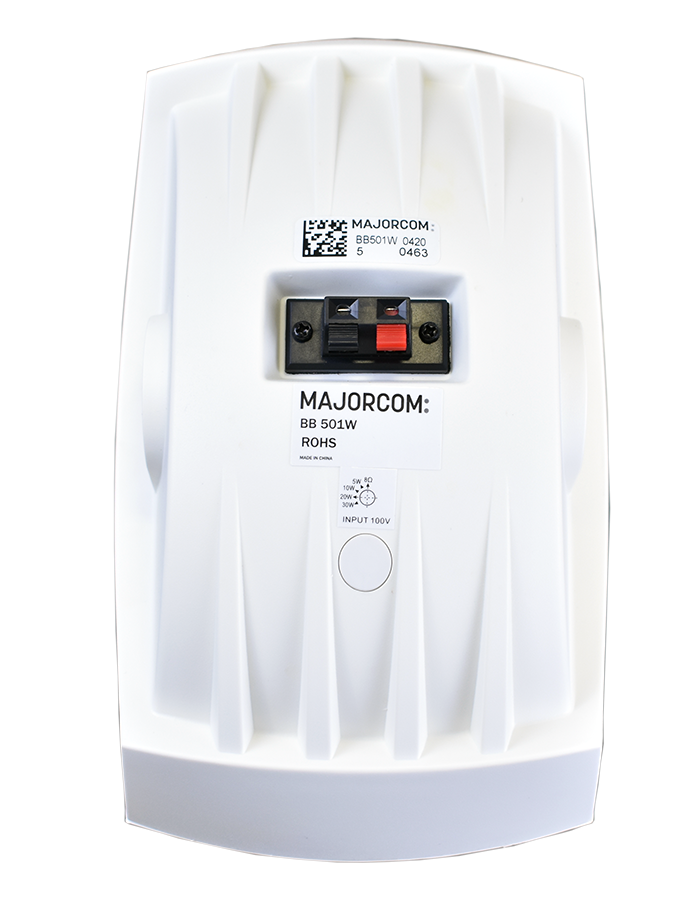

- It is equipped with a swiveling fastener, clip-type terminals and a 100V line or 8Ω power selector.
- It can be installed both indoors and outdoors.
Downloads
Data Sheet
CAD Files
Specifications
| 100V line power / Impedance | 5/10/20/30W 8 Ω |
| Bandwidth (Hz) | 63 – 20000 |
| Cone (material) | Polypropylene |
| Body grill (material) | ABS / aluminium |
| Dimensions (WxHxD) (mm) | 155 x 261 x 170 |
| Directivity @ 1 KHz | 95° H x 165° V |
| Nominal power RMS (W) | 30 |
| Protection rating | IP 55 |
| Sensitivity dB (1W/1m) | 91 |
| Speaker | 5″ + tweeter |
| Weight (Kg) | 1.7 |
