CSE 56T VA

Wall mounted Speaker 6 W EN54-24 certified

  • The 6W powered speaker is equipped with a 165mm fullrange loudspeaker and a 100V transformer with 3 power adjustments 6/3/1.5W.
  • The high-density, shock-resistant MDF wood housing in white provides a low resonance sound. A sturdy front grille made of steel guarantees enduring stability.

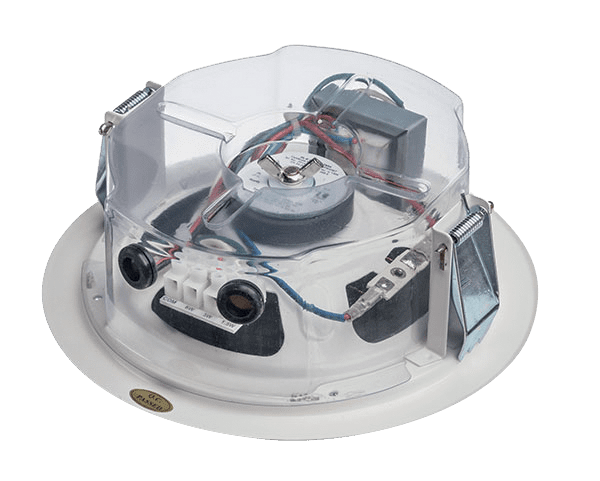

  • For additional reliability, a 2 pin-ceramic block, a thermal fuse is provided and the speaker chassis is impregnated against wetness.
  • The speaker is also secured with the high protection class IP54 against the security risks of environmental influences.
  • The proven spring clamp on the rear plate ensures a quick mounting on walls.
  • PEINT PLAFONNIER : painting for ceiling speaker RAL classic (Minimum Order Quantity 14 pcs)

Specifications

Body & grillMDF, Steel
Nominal power6 W
Nominal Impedance666 Ω
Power 100V Line6 / 3 / 1,5 W
Impedance1667 / 3333 / 6667 Ω
Bandwidth104 - 17 200 Hz
Sensitivity (1W/1m)86,8 dB
SPL MAX 1m98,3 dB
Directivity (H-V) @ 500Hz180°
Directivity (H-V) @ 1kHz180°
Directivity (H-V) @ 2kHz140°
Directivity (H-V) @ 4kHz85°
Speaker5’’
ConePaper

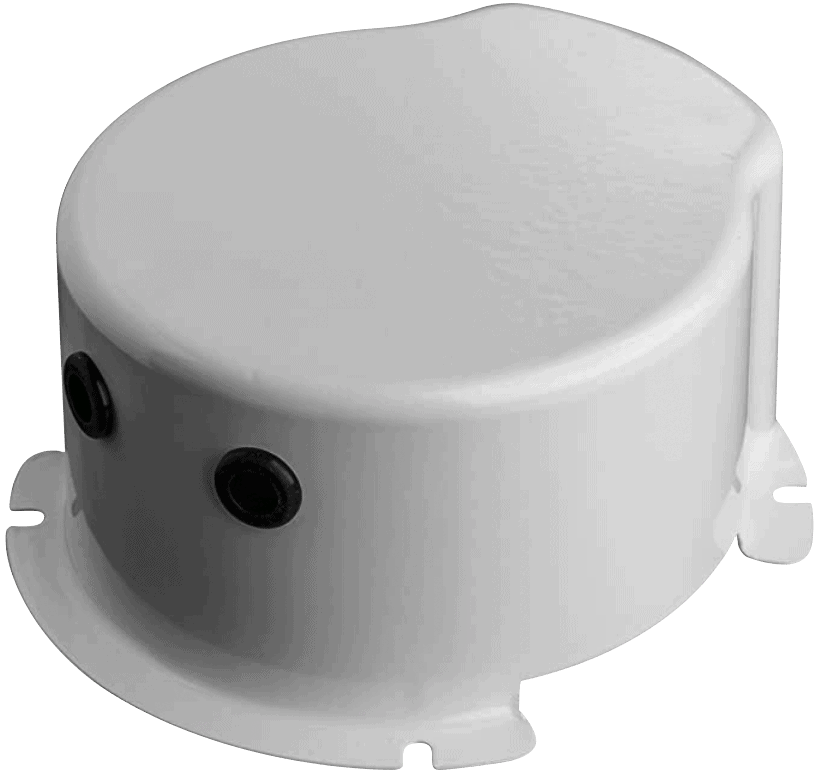

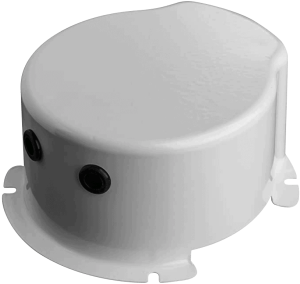

Dimensions (WxHxD)Ø 181,5 x P 65 mm (181,5 x 91,5 mm capot métal)
Weight0,51 kg (0,71 kg avec capot métal)
Operating temperature-10°C / +55°C
Protection IndexIP 21C
ColorRAL 9016
