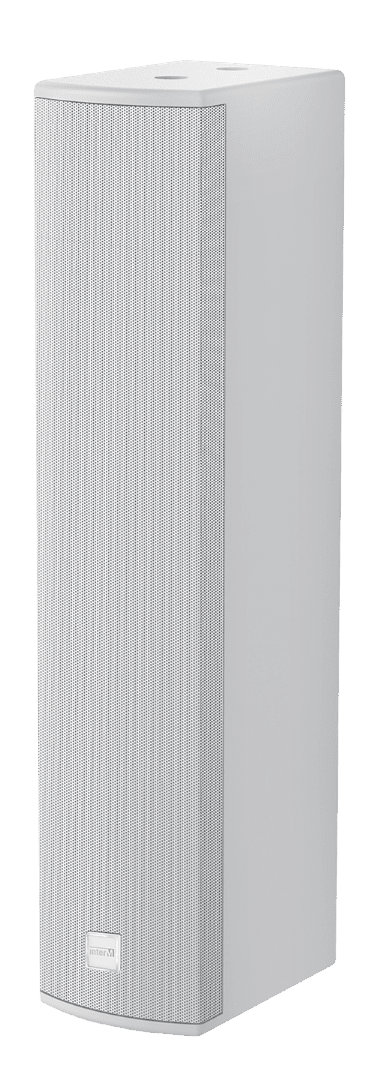

- The CU-7000 Series is an indoor column loudspeaker designed specifically for use in locations where high and high quality music reproduction are required.
- Designed to minimise driver-to-driver interference, it delivers clear and rich sound with high frequency and low high-frequency, low-loss, professional-quality sound. It is suitable for for indoor spaces such as churches, houses of worship, hotel lobbies, restaurants, etc.
Downloads
Data Sheet
CAD Files
Specifications
Mode | CU-7120 |
Type | Dual 4’’ 2Way Column Speaker |
LF Driver | 4’’x 4 |
HF Driver | 0.5’’x 2 |
Power Handling (AES) | 120W |
Input Power 100V | 120/60W |
Impedance 100V | 83/166Ω |
Impedance LOW | 8Ω |
Power Selection | By Terminal |
Frequency Range(-10dB) | 95Hz ~ 20kHz |
Frequency Range(-20%) | 70Hz ~ 20kHz |
Sensitivity (1W/1m, 1kHz) | 94dB |
Maximum SPL[Cont] | 116dB |
Nominal Dispersion(HxV) 1kHz | 150° / 50° |
Nominal Dispersion(HxV) 4kHz | 70° / 20° |
Input Connection | 4P Screw Terminal |
Enclosure Material | 15T MDF Polyurea Coating |
Enclosure Color | White |
Grille Material | EGI 0.8T |
Grille Color | White |
Weight (kg) | 8.02kg |
Dimensions (Net, WxHxD, mm) | 130 x 620 x 195 |
Included Accessories | Wall Bracket |
