DL-SE 20-200/T+ EN54

20 W Ceiling Speaker

  • The frameless design of this 2-way loudspeaker is inspired by the look of contemporary LED lights.

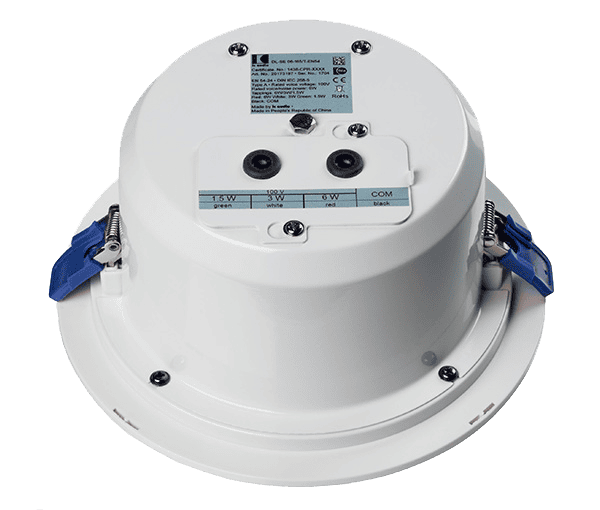

  • The 20W powered speaker is equipped with a 200mm full-range loudspeaker and a 100V transformer with 3 power adjustments.

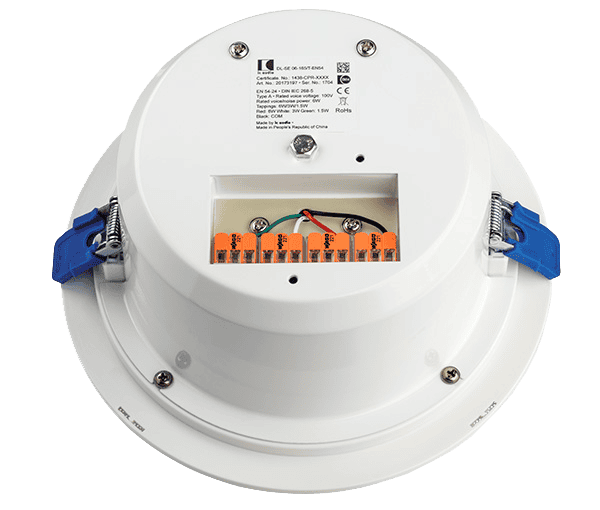

  • Fast and easy installation through WAGO 221 connector and strong spring clamps with protective caps for vibration damping.
  • The fire dome is included in the delivery.
  • This speaker is suitable for a ceiling strength of approx. 1-45 mm.

Product details

Data Sheet

FT DL-SE 20-200 T+ EN54 EN

User Manual

DL-SE 20-200 T+ EN54 MU-EN

Certificate

    Certificate DL-SE 20-200/T+ EN54

    Technical specifications

    Power (100V)20 / 10 / 5 W
    Impedance (100V)500 / 1000 / 2000 Ω
    Frequency Range60 – 20.050 Hz
    Frequency Response47 – 22.000 Hz
    SPL IEC268-5, 1W/1m96,8 dB
    SPL EN54-24, Pmax/4m93,9 dB
    Sensitivity EN54-24, 1W/4m81,1 dB
    Sensitivity EN54-24, 1W/1m93,1 dB
    Dispersion -6dB, 500Hz180°
    Dispersion -6dB, 1KHz180°
    Dispersion -6dB, 2KHz77°
    Dispersion -6dB, 4KHz47°
    Dimensions265 X 115 mm
    Ceiling Cut-outØ 240 mm
    Weight1,6kg
    Operating temperature-10 to +55°C
    Protection IndexIP21
    ColorRAL 9016
