DPS-240D

2x 240W / 100V Class-D amplifier

2x 240W / 100V Class-D amplifier

The DPS series has several 2U class-D numeric amps, having a yield greater than 90%, thus allowing the reduction of heat dissipation, noise and weight compared to traditional analog amps.

This range is divided into several models ranging from simple, double-channel, from 240 to 720W.

These amps comprise 2 audio inputs including a priority input for cutting the current program for disseminating a priority message by dry contact, for example.

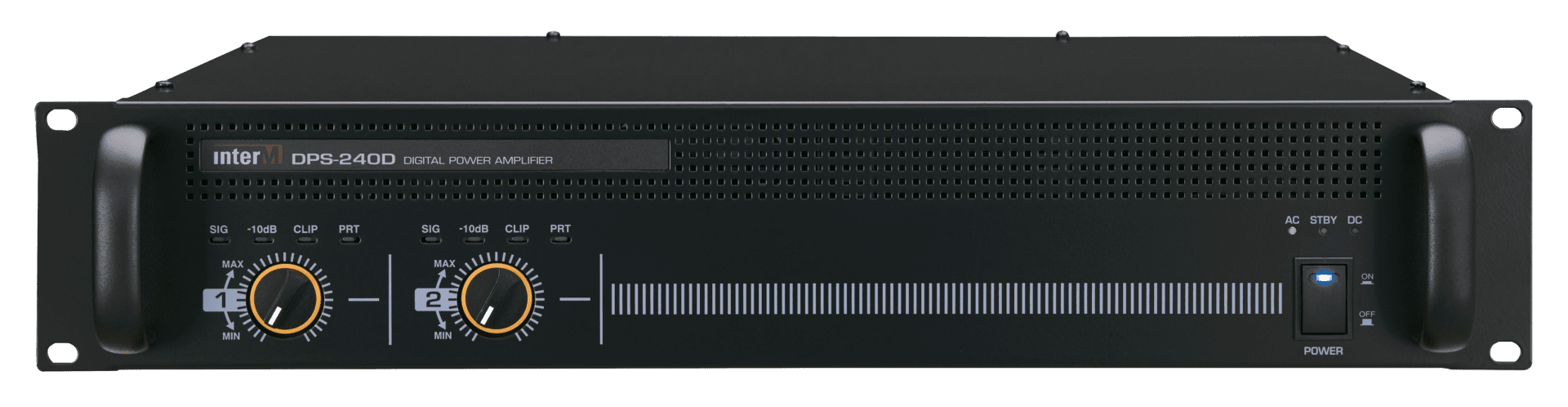

LEDs in front face allow instant control of the state of the amp.

24 V DC terminal block for use with backup battery.

Specifications

Dimension (LxHxP)482(W) × 88(H) × 371(D)mm
Frequency response60Hz~20kHz
Impedance70V/20.42Ω
Input sensibility1V/10kΩ
Operating temperature-10°C~40°C
Output impedance100V/41.6Ω
Power240W x 2
Power consumption130W
Signal / NoiseMore than 100dB
THDLess than 0.5%
Weight7.4kg
