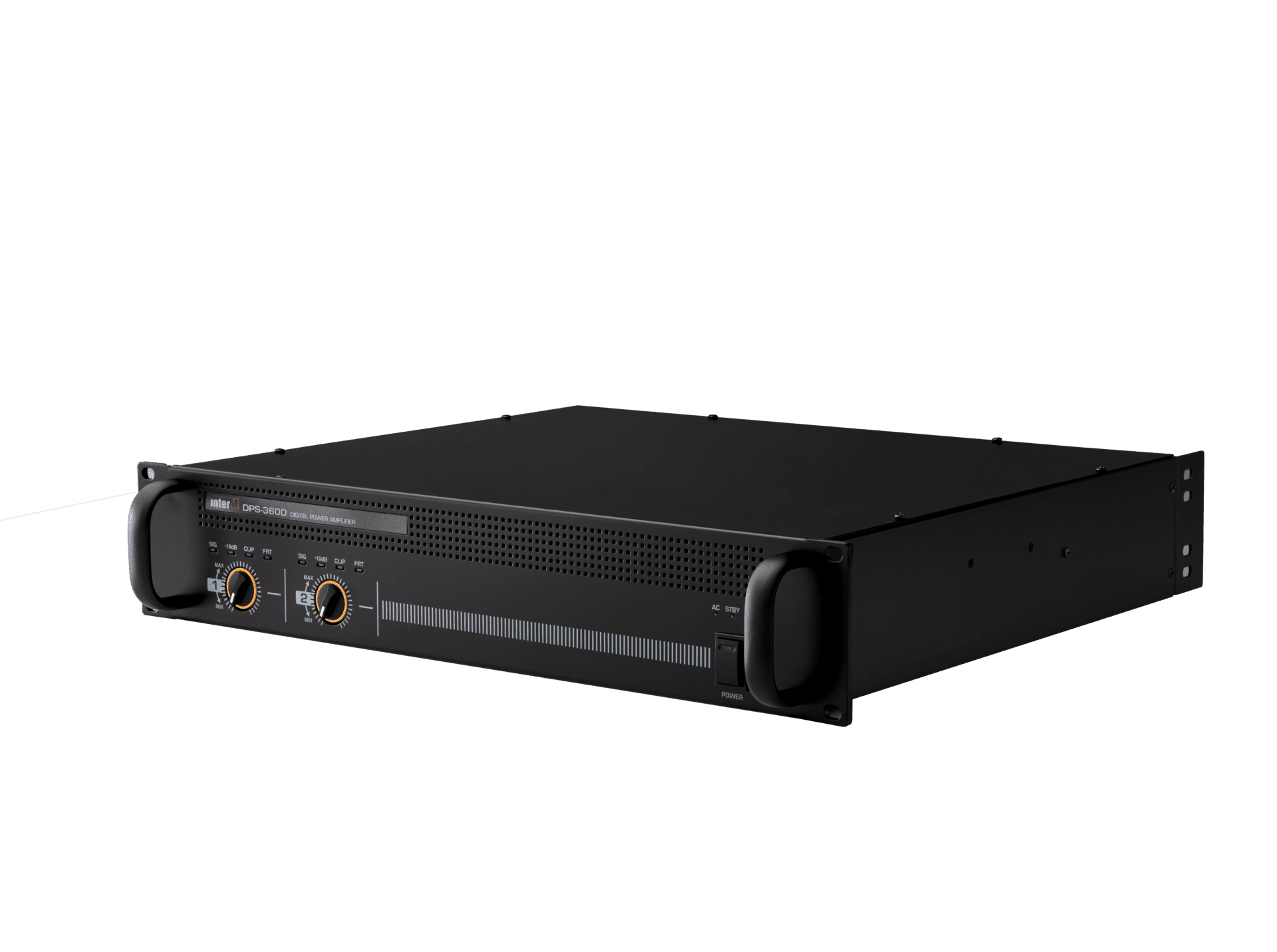

DPS-360D

Class-D 2x 360W / 100V amplifier

Class-D 2 x 360W / 100V Amplifier

The DPS series offers a range of 2U Class-D numerical amplifiers with over 90% efficiency, reducing heat dissipation, noise and weight compared to traditional analogue amplifiers.

This range is divided into several models, from single to dual channel, from 240 to 720W.

These amplifiers have 2 audio inputs, including a priority input that can be used to interrupt the programme in progress, for example to transmit a priority message via a floating contact.

LEDs on the front panel allow instant checking of amplifier status.

24V DC terminal block for use with back-up battery.

Specifications

Dimension (LxHxP)482(W) × 88(H) × 424(D)mm
Frequency response60Hz~20kHz
Impedance70V/20.42Ω
Input sensibility1V/10kΩ
Operating temperature-10°C~40°C
Output impedance100V/41.6Ω
Power360W x 2
Power consumption250W
Signal / NoiseMore than 100dB
THDLess than 0.5%
Weight8.25 kg
