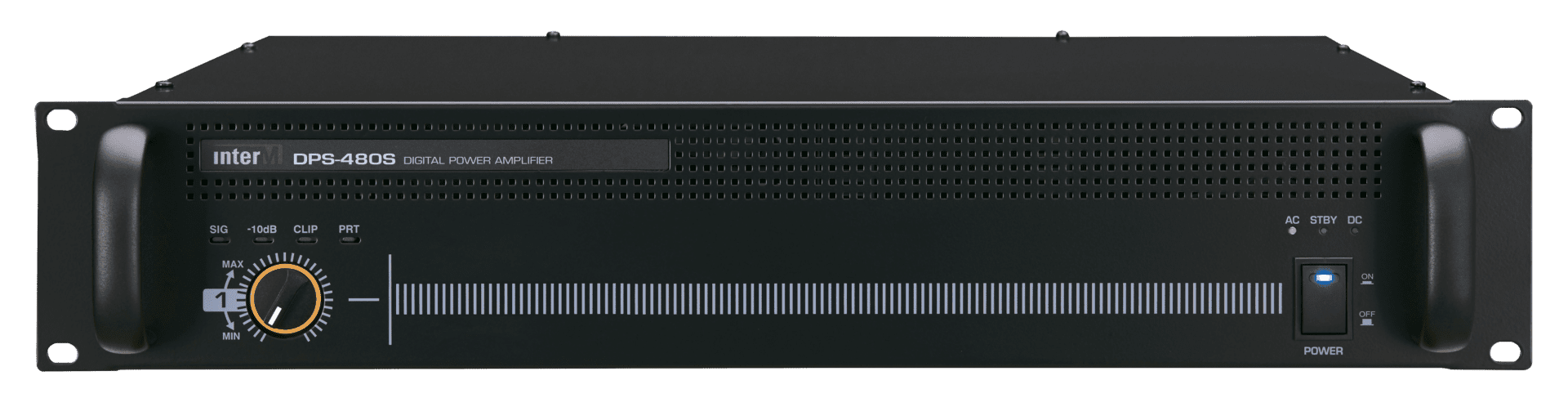

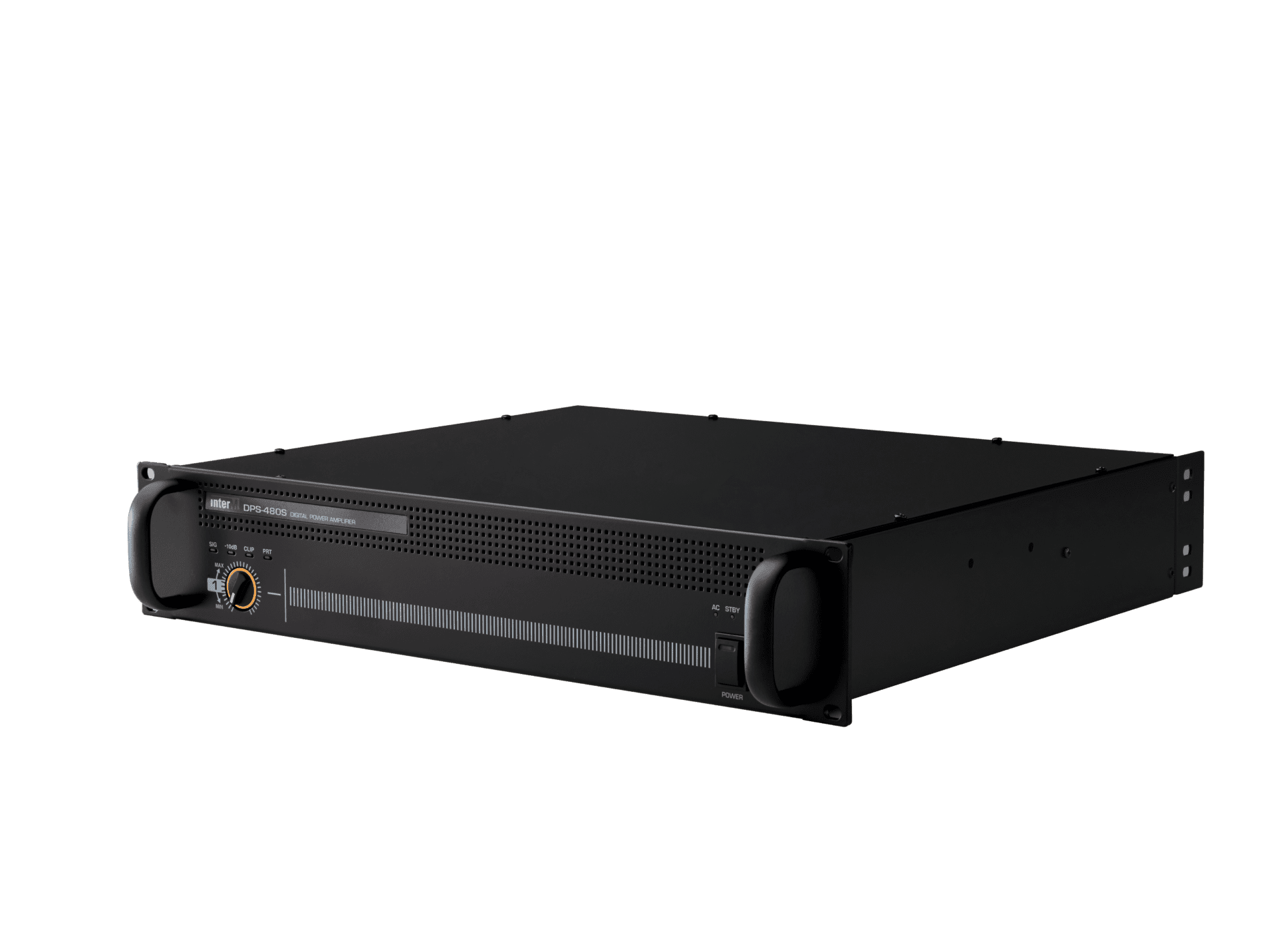

DPS-480S

Class-D 1x 480W / 100V amplifier

Class-D 1x 480W / 100V Amplifier

The DPS Series is a range of 2U Class-D numerical amplifiers with over 90% efficiency, reducing heat dissipation, noise and weight compared to traditional analogue amplifiers.

This range is divided into several models, from single to dual channel, from 240 to 720W.

These amplifiers have 2 audio inputs, including a priority input that can be used to interrupt the programme in progress, for example to transmit a priority message via a floating contact.

LEDs on the front panel allow instant checking of amplifier status.

24V DC terminal block for use with back-up battery.

Specifications

Dimension (LxHxP)482(W) × 88(H) × 371(D)mm
Impedance70V/10.2Ω
Input sensibility1V/10kΩ
Output100V/20.8Ω
Signal / NoiseMore than 100dB
Temperature-10°C~40°C
THDLess than 0.5%
Voltage480W
Weight6.9kg
