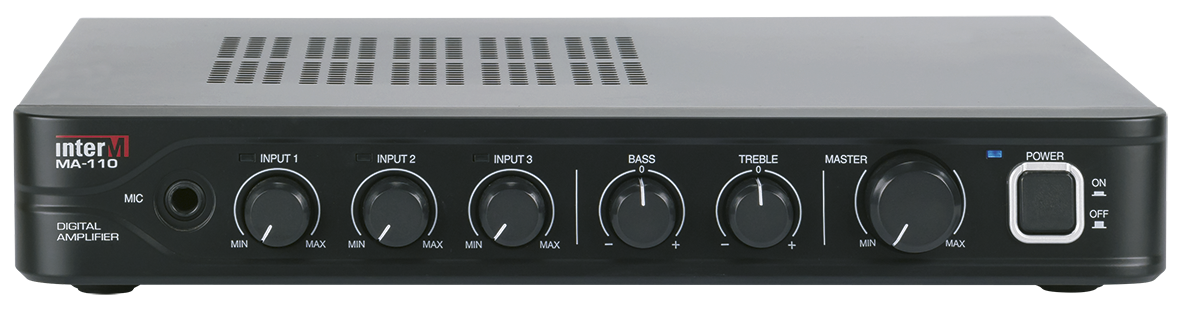

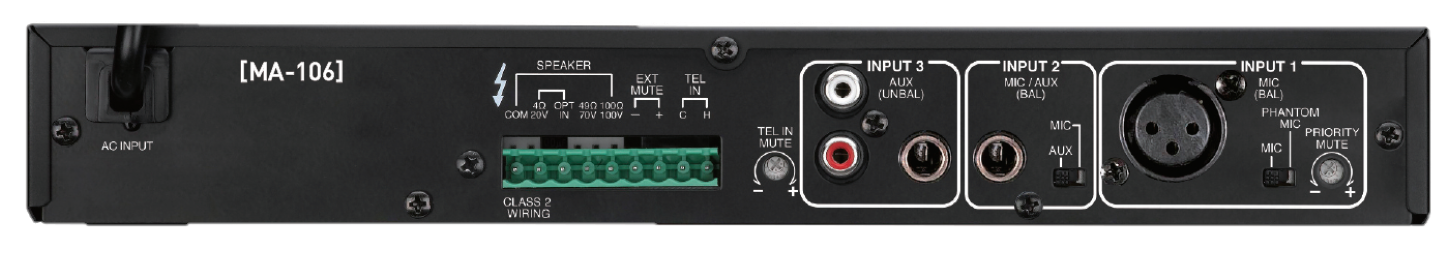

- The MA-106 and MA-110 are compact 1U pre-amplifiers with an output power of 60W and 100W, perfectly suited for small facilities such as conference rooms, restaurants, cafes…
- Thanks to their highly efficient electronic circuitry, the MA-106 and MA-110 are reliable, lightweight and have low heat dissipation.
- The volume of inputs 1 to 3 is independently adjustable.
- The signal modulations on inputs 1 to 3 are indicated by LEDs to check the operation of each channel.
- Automatic standby. If there is no signal for 5 minutes, the preamplifier automatically switches to standby mode until a new input signal is received, which takes less than 0.5 seconds.
- Tone control (low and high)
- The mute function can be remotely controlled and linked to the fire alarm system.
- Other features such as micro-phantom power and the like are available.
Downloads
Data Sheet
User Manual
Leaflet
CAD Files
Specifications
| Bandwidth (Hz) | 80 to 18,000 |
| Dimensions (W x H x D) (mm) | 300 x 44 x 230 |
| Input sensibility | INPUT 1 -50dB, INPUT 2 (MIC) -50dB, INPUT 2 (LINE) -10dB, INPUT 3 -10dB, TEL IN 0.775V |
| Operating temperature (°C) | -10°C ~ 40°C |
| Output level / impedance | 15.5V/4Ω, 25V/10.5Ω, 70V/82Ω, 100V/167Ω |
| Power | 100W RMS |
| Power consumption | 30W |
| Power source | AC 220~240V, 50/60Hz |
| S/N ratio | INPUT 1, 2 : Better than 60dB, INPUT 3, TEL IN : Better than 70dB |
| Tonality control | BASS (100Hz) ±12dB, TREBLE (10kHz) ±12dB |
| Weight (Kg) | 3 |
