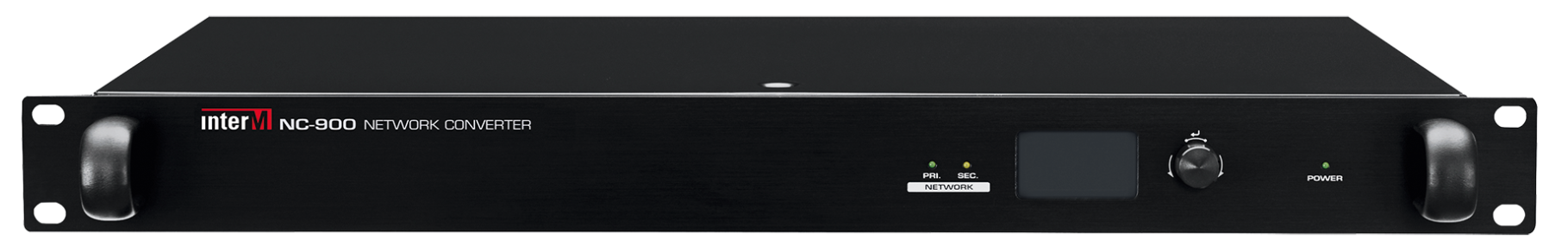

The NC-900 is a device for sending and receiving audio signals and contacts from the network for integrated control of the 6000 system.
Controls ES-6116, PS-6116, RG-6116, EP-6216 via network
Transmittes/receives audio (MP3, PCM, RTSP) over the network
Supports DHCP, STATIC IP (default: STATIC IP, 192.168.1.99).
Supports network redundancy
Downloads
Leaflet
CAD Files
Specifications
Audio input | 1 Channel |
Audio output | 1 Channel |
Input sensibility | 0dBV |
Frequency response | 20Hz ~ 20kHz |
THD | < 0,1% |
S/N ratio | > 80dB |
Scanning frequency | 44.1, 48kHz |

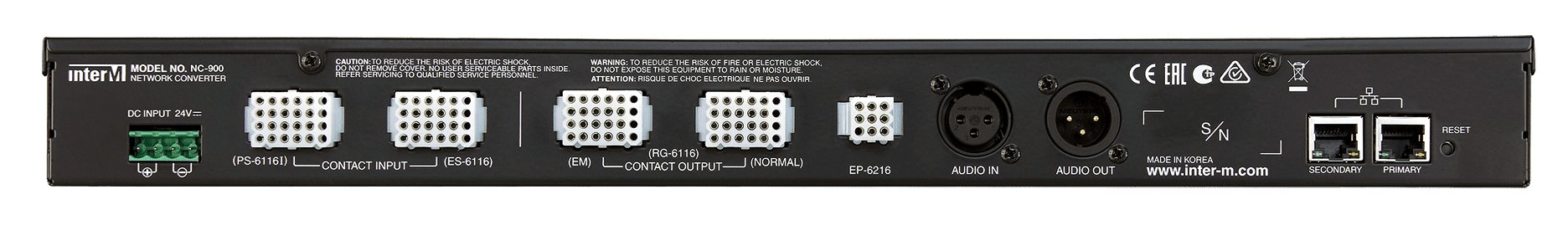

Contacts | Intput : 16 Channel – Output : 16 Channell |
Communication | 10/100/1000 Base-T (RJ-45) |
Operating temperature | 0°C ~ +40°C |
Power source | 24V DC, 350mA |
Dimensions (W x H x D) | 482 x 44 x 280mm |
Weight | 3kg |
