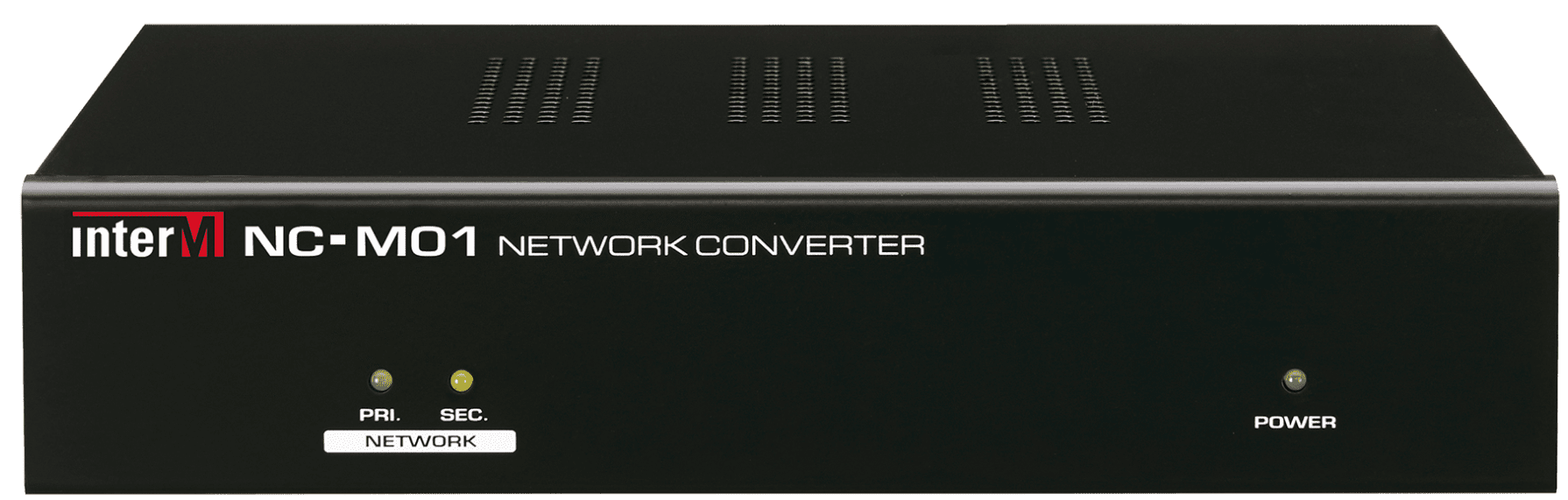

The NC-M01 is a network audio, contact and data transmission device for integrated network control of remote microphones and the RM-6016.
Contact interface to RM-6016 via network.
Sends audio (MP3, PCM, RTSP) over the network.
Supports DHCP, IP STATIC (default: IP STATIC, 192.168.1.99)
Supports network redundancy
Half rack size 1U.
Downloads
Leaflet
CAD Files
Specifications
Audio inputs | 1 Channel |
Input sensibility | 0dBV |
Frequency response | 20Hz ~ 20kHz |
THD | < 0,1% |
S/N ratio | > 80dB |
Sampling | 44.1, 48kHz |
Contact ouputs | 16 Channel |
Network | 10/100/1000 Base-T (RJ-45) |
Operating temperature (°C) | 0°C ~ +40°C |
Power source | Input : DC 24V, 800mA // Output : DC 24V, 500mA |
Dimensions (W x H x D) | 210 x 44 x 180mm |
Weight | 1kg |
