P 101T

Ceiling speaker – 1 way – 3 / 6W – 100 volts – diam 168

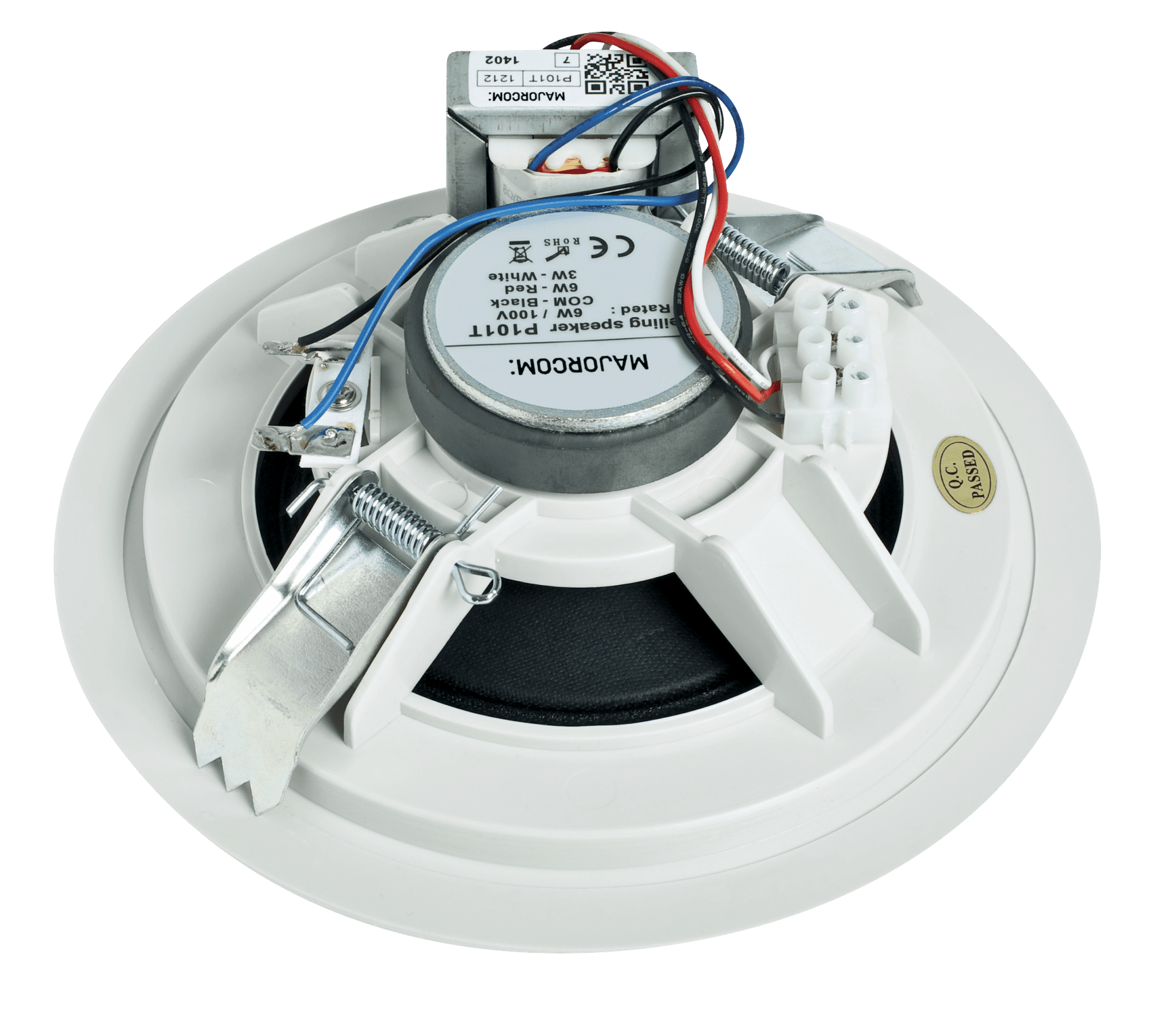

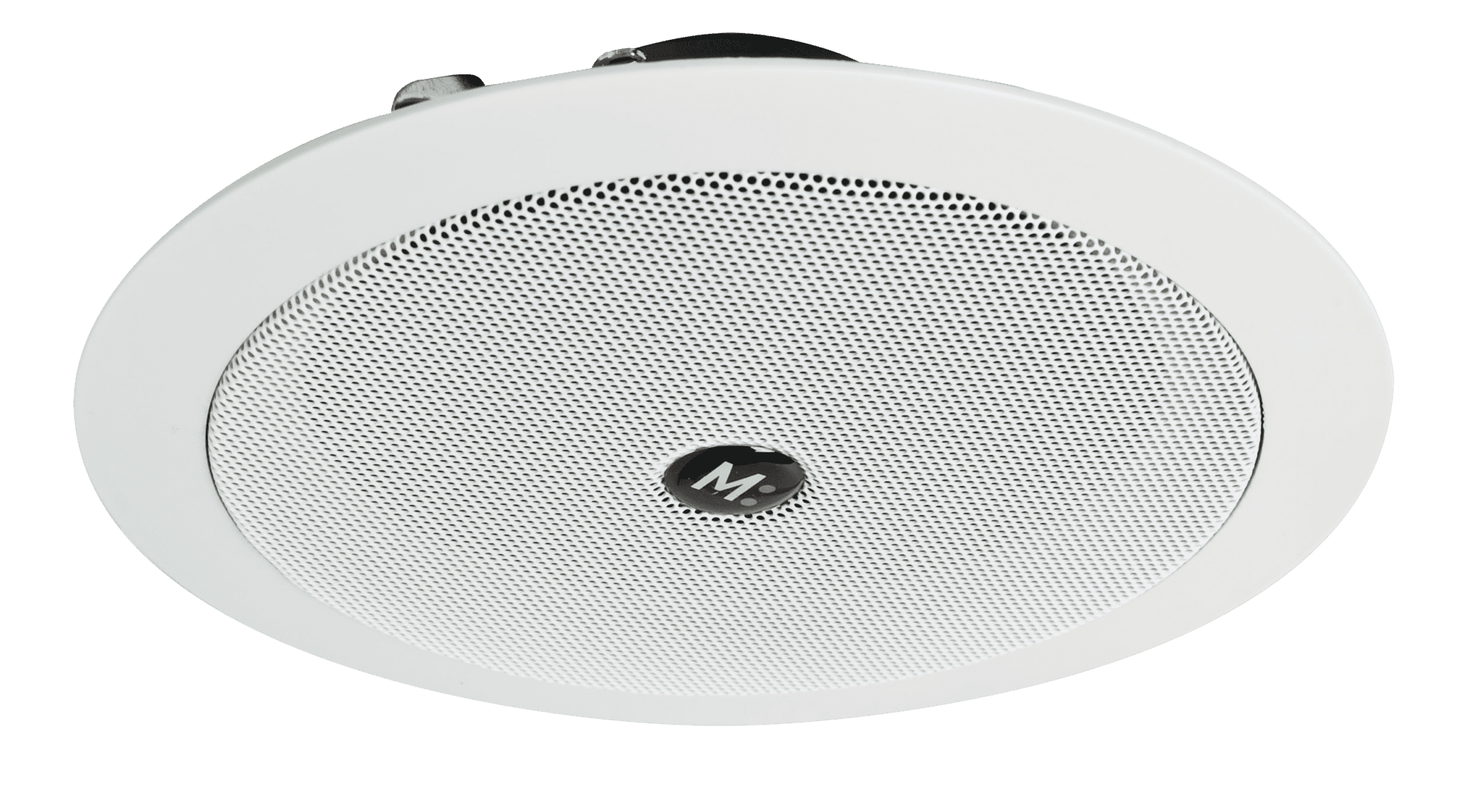

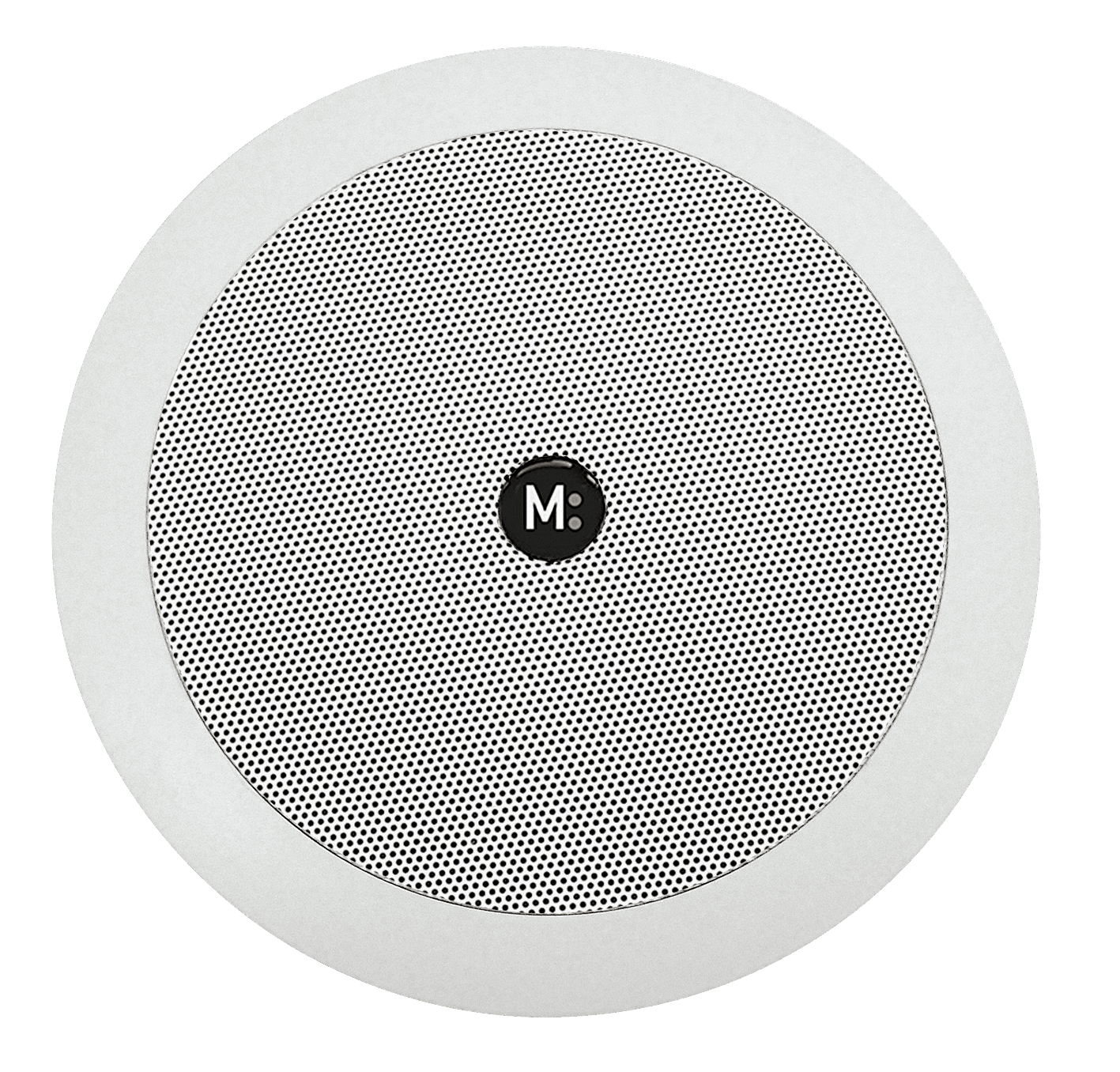

  • Ceiling speaker with high quality 100V transformer integrating most decorations.
  • The sound quality and the price make this product an element of choice to achieve a so-called economical sound system.

Downloads

Data Sheet

FT P 101T EN

CAD Files

P 101T_CAD

Specifications

100V line power / Impedance3/6W
Bandwidth (Hz)85 – 15 000
Cone (material)Paper
Corps grill (material)ABS / Metal
Dimensions (ØxP) (mm)174 x 60
Directivity @ 1 KHz90°
Embedding (mm)155
Nominal power RMS6W
Sensitivity dB (1W/1m)87
Speaker4″
Weight (Kg)0,5
