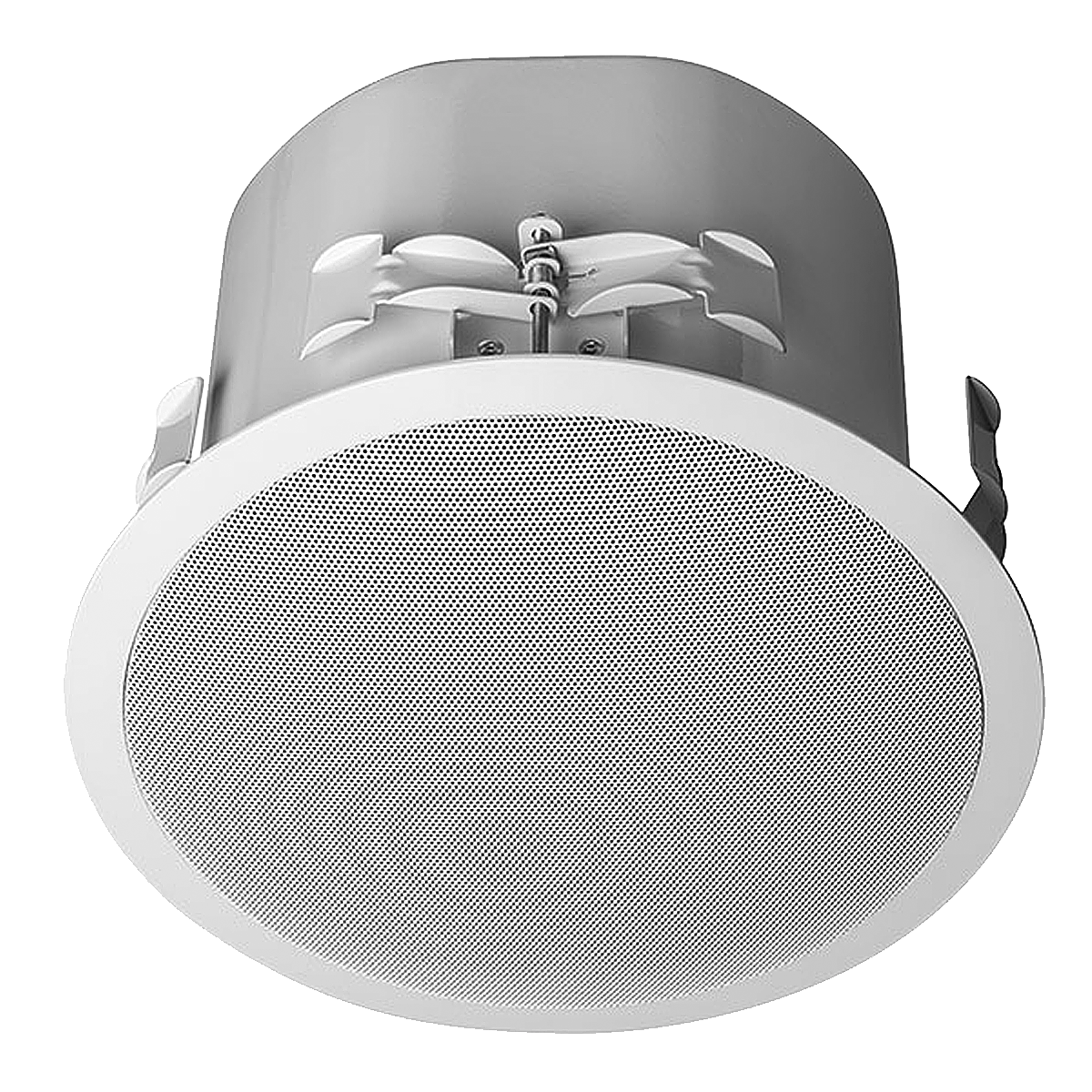

P 860T VA

• P 860T VA is a 2 way bass reflex ceiling speaker suitable for high quality installation.
• Fitted with a 8” speaker, a neodymium tweeter and a 100V transformer with 4 power taps, it offers a very high sound quality.
• Easy installation via screw mounting system.
• PEINT PLAFONNIER : painting for ceiling speaker RAL classic (Minimum Order Quantity 14 pcs)

All product details

Data Sheet

FT-P 860T VA-EN

User Manual

P 860T VA_MU-EN

EASE files

P 860T VA-V10

BIM files

BIM Data_P 860T VA-EN

DoP

DoP 1438-CPR-0854 – P 860T VA

Specifications

Body & grill	Metal
Nominal power	60 W
Nominal Impedance	167 Ω
Power 100V Line	60 / 30 / 15 / 7,5 W
Impedance	167 / 333 / 667 / 1 333 Ω
Bandwidth	50 – 24 000 Hz
Sensitivity (1W/1m)	91,2 dB
SPL MAX 1m	110,7 dB
Directivity (H-V) @ 500Hz	180°
Directivity (H-V) @ 1kHz	165°
Directivity (H-V) @ 2kHz	130°
Directivity (H-V) @ 4kHz	80°
Speaker	8’’
Dimensions (mm)	Ø 319 x P 254
Ceiling Cut-out	Ø 302 mm
Weight	4,7 kg
Operating temperature	-10°C ~+55°C
Protection Index	IP 21C
Color	RAL 9016
