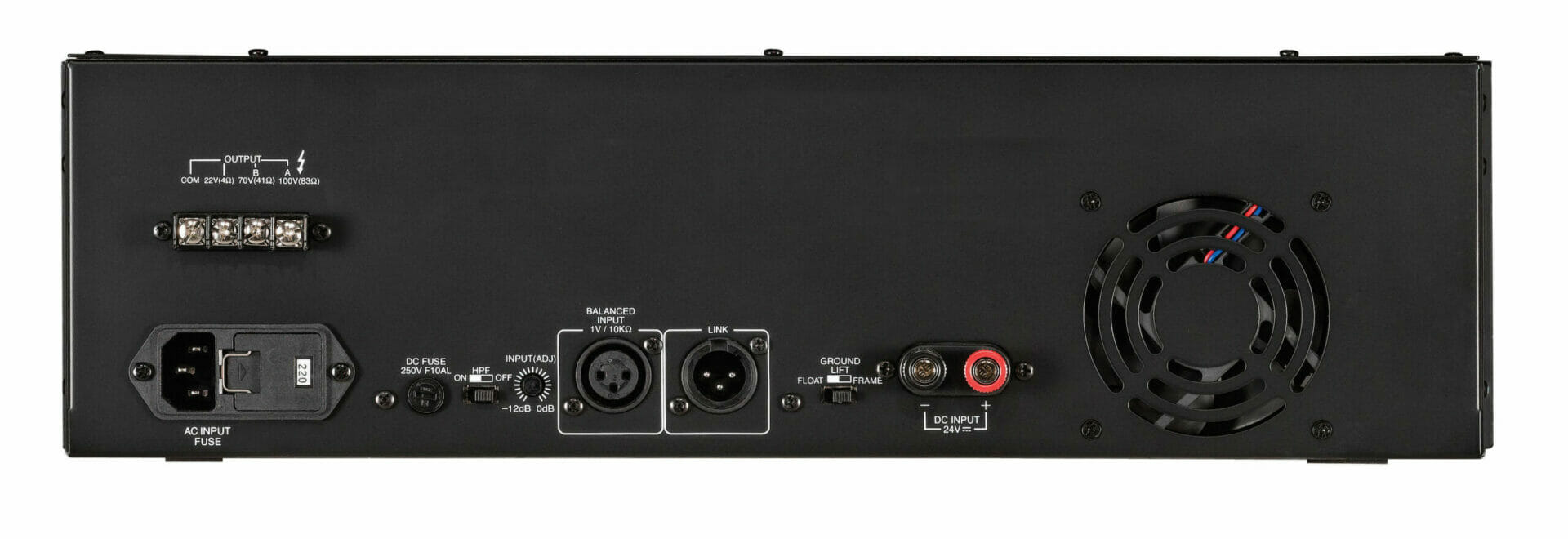

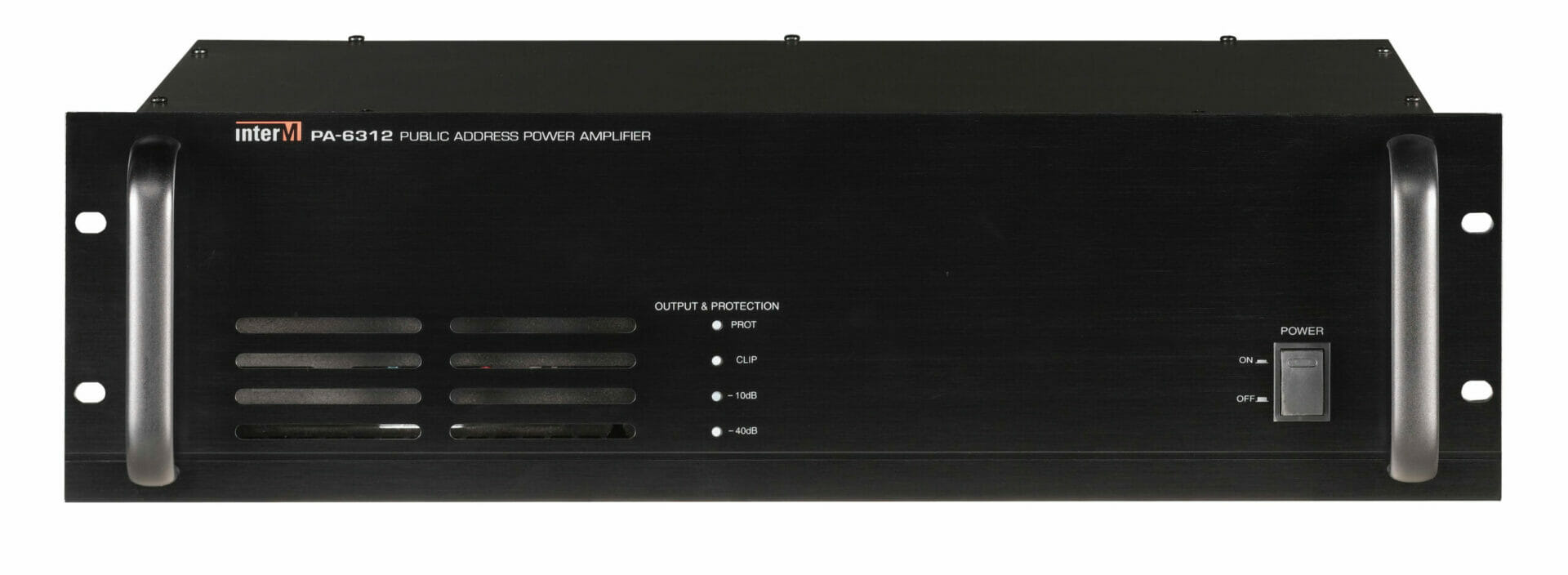

PA-6312

Amplifier 1x120W / 100V 8 / 4Ω – 220VAC – 24VDC

  • The models are available in a variety of output power, 120, 360 and 480 watts 8/4 OHM low impedance output power and high impedance 70 / 100V using low distortion transformers. They are the ideal choice for sound reinforcement, background music and microphone calls.
  • With low distortion and low noise electronic circuits, it provides a high signal / noise ratio.
  • The PA 6300 series offers external versatility, long-term reliability and a remarkable value for installation application.

Specifications

Dimensions (LxHxP)482(W) x 132(H) x 280(D)mm
Frequency response70Hz-18kHz
Gain0dB ~ -12dB
Input sensibility1V/10kΩ Balanced
Operating temperature-10°C ~ +40°C / 14°F ~ 104°F
Output level / impedance83Ω/100V
Power consumption130W
S/N ratio> 95dB
THDLess than 1%
Weight14kg/30.8lb
