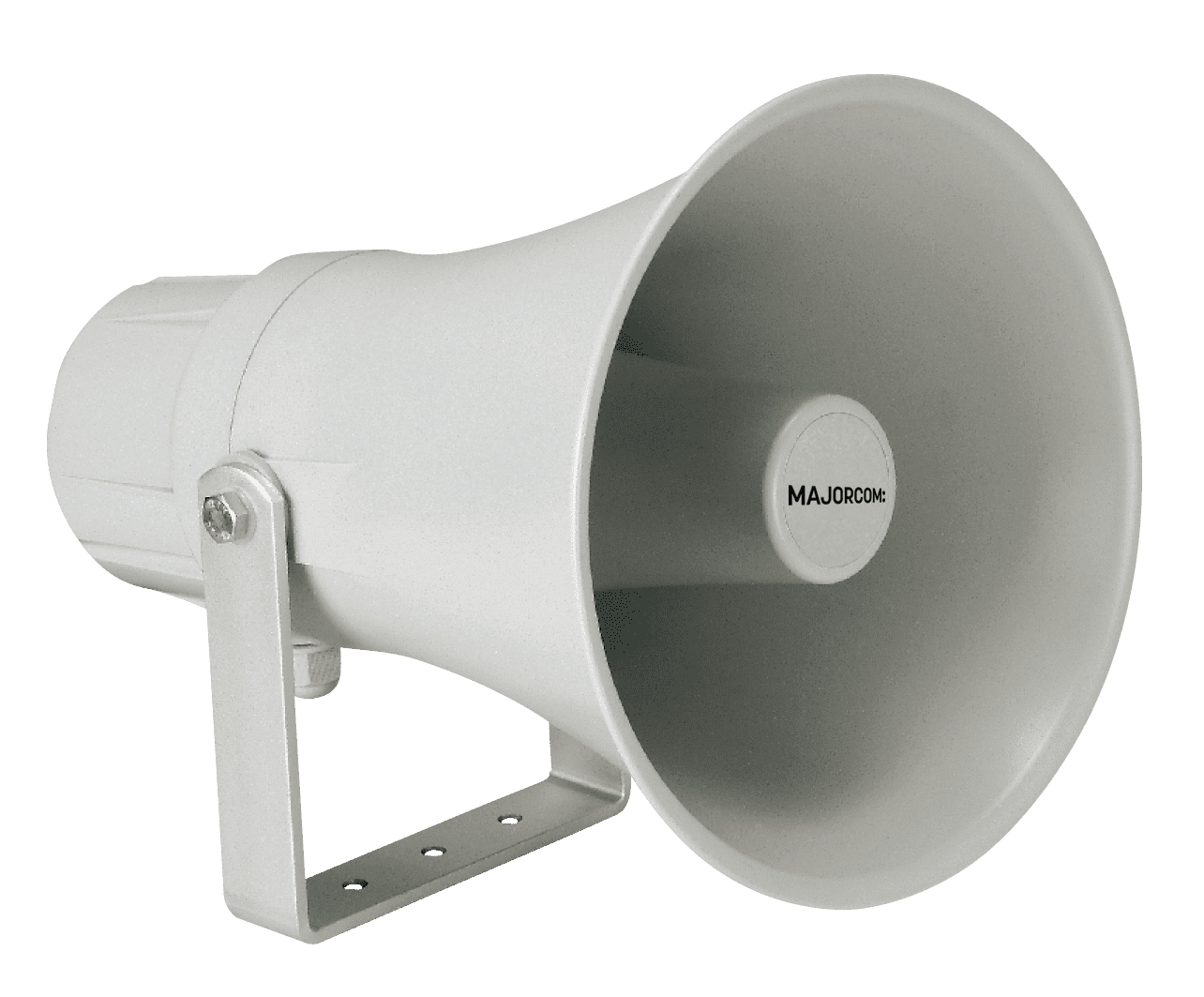

PHS-81T30BS

Horn speaker, 30/15/7.5 / 3.75W EN54-24

  • High performance enclosure
  • High-quality vocal reproduction
  • Protection from water and dust, IP66
  • The high-performance horn speaker faithfully reproduces speech with excellent sound distribution and can be used in a wide range of outdoor applications.
  • The perfect solution for sports fields, parks, factories and outdoor pools.
  • The speaker is equipped with a ceramic terminal block, a thermal fuse and wires that can withstand high temperatures.
  • Included is a U-shaped, stainless steel universal mount and screws (both AISI 316) for flexible installation.

Specifications

100V line power / Impedance3,75/7,5/15/30W
Bandwidth (Hz)340 – 9000
Corps grill (material)ABS Fireproof
Dimensions (W x H x D) (mm)Ø 212 x L 280
Directivity @ 1 KHz120°
Nominal power RMS30W
Operating temperature (°C)-20°C to +70°C
Protection ratingIP 66
Sensitivity dB (1W/1m)108
StandardEN 54-24 (type B)
Weight (Kg)2,1
