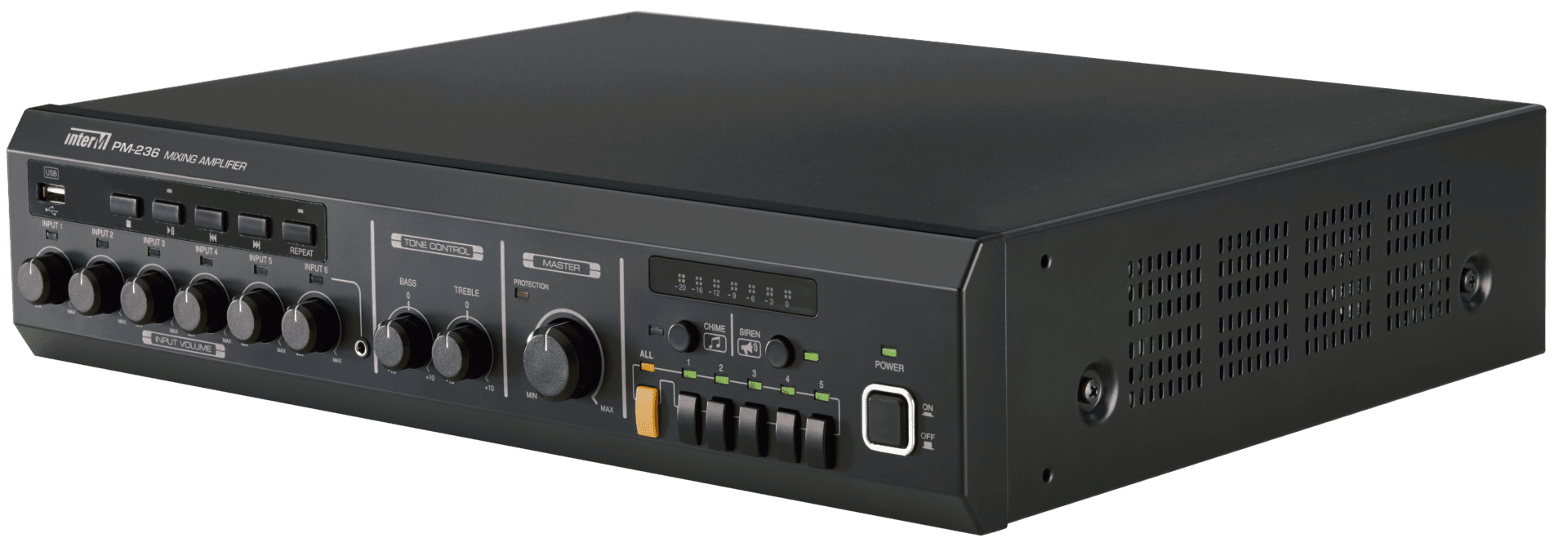

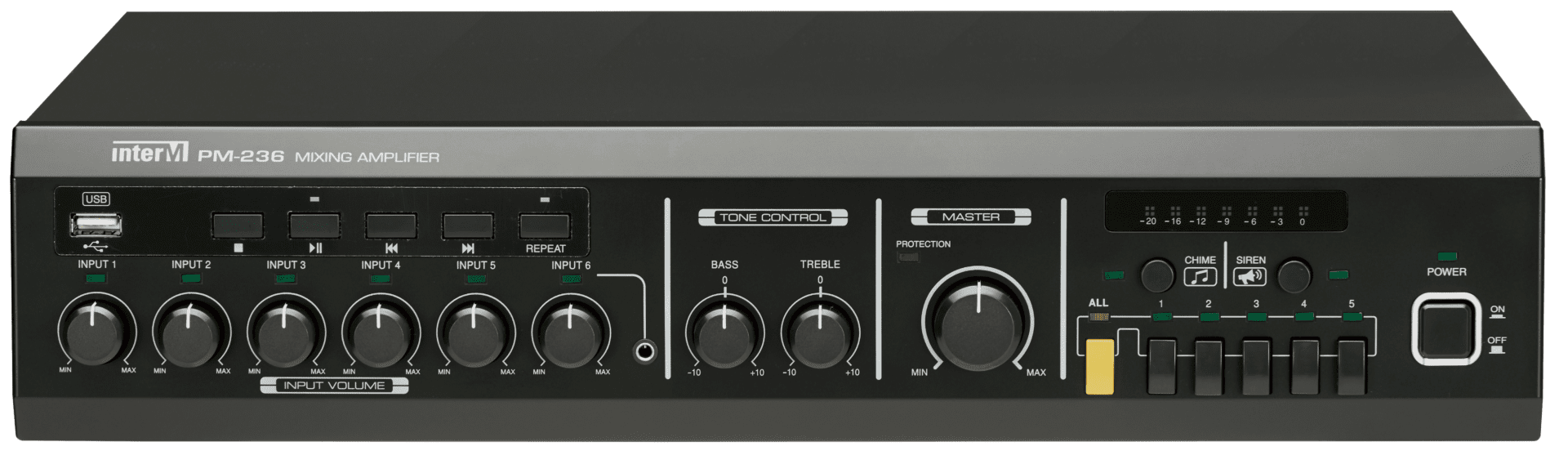

PM-236

Amp / Preamp 360W / 100V / 70W / 4Ω

  • Class-D amplifiers of 360W output power
  • HIGH-Z (100V / 70V) and Low-Z (8Ω / 4Ω)

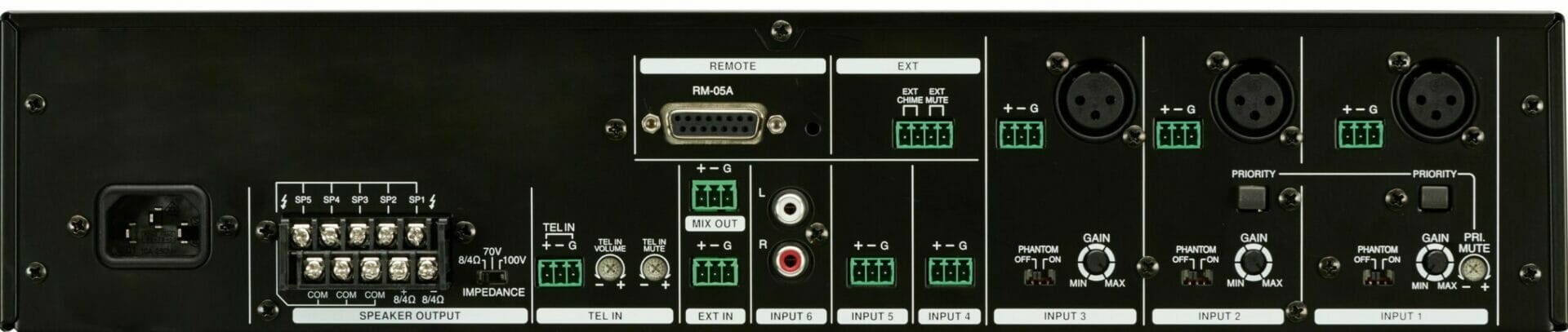

  • Multiple inputs (three microphones / lines, two lines, two stereo / line inputs, such in, USB) and a function to control the volume of each channel
  • Extin in and mix out
  • Display of the input signal controlled by the channel and the level of the output LED
  • Tone control (severe / acute)
  • 5 Switches (zone selection switch)
  • Broadcasting in priority
  • TEL IN> INPUT 1> INPUT 2 = INPUT 3 = Input 4 = Input 5 = INPUT 6
  • External sound cut and external carillon
  • Carillon and siren

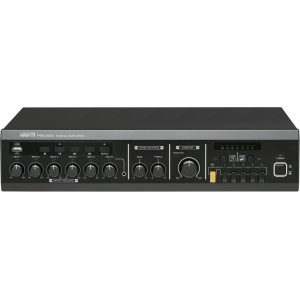

  • Optional set of brackets for racking PM-236 / PM-248 / PM-260 amplifiers in 19’’ racks (BKT-A120)

Specifications

Dimension (LxHxP)420(W) x 88(H) x 318.7(D)mm
MIX OUT0dBV
Output power360W
Temperature-10°C~+40°C
THDLess than 1%
Tonality control±10dB
Weight5.1kg
