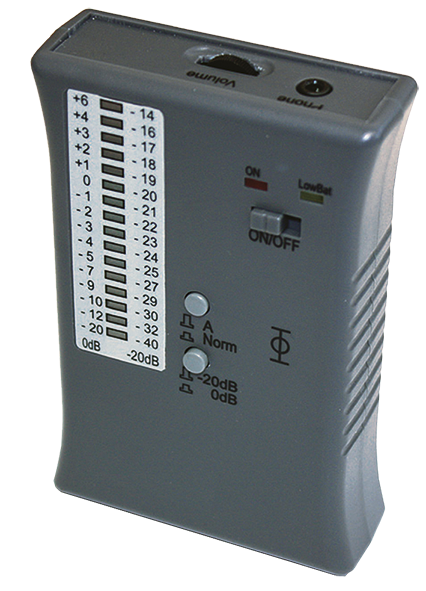

Magnetic field measuring device
Magnetic field tester that makes it possible to check the compliance of the installation of a magnetic loop and can also be used to capture and listener the sound of the inductive field (delivered without headphones).
Downloads
Data Sheet
User Manual
Specifications
| Provided accessories | 2 AA batteries – One test CD with normalized signals |
| Colour | Dark grey |
| Control | Measurement scale selection: 0 db/-30dB – Headphones level control |
| Dimensions (W x H x D) (mm) | 83 x 126 x 35 |
| Display | Battery status control via LED / field strength: via LED-scale (approx. 1 dB resolution) |
| Headphone out | Jack 3.5mm |
| Measuring range: | +6 dB to -40 dB (0 dB = 400 mA/m) |
| Power supply | 2x AA batteries |
| Standard | Compliant with IEC 60118-4:006 and BS for testing equipment used to evaluate induction loop systems |
| True RMS | 125 ms average |
| Weight | 170 g |
