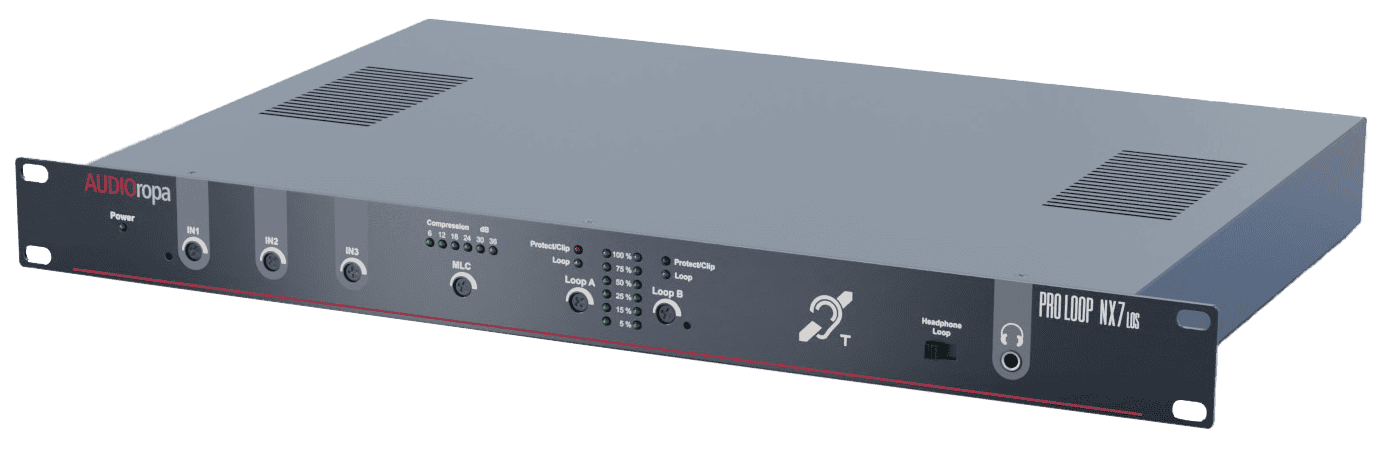

PROLOOP NX7 LOS

Induction loop amplifier for areas up 1 200 m2 (low crosstalk)

The PROLOOP NX7 LOS is designed for areas up to 1 200 m². It is is primarily designed for continuous use. The integrated switch mode power supply and the Class-D amplifier design enable high efficiency and low waste heat. Among other things, this results in the high reliability and operational safety.
The function of the induction loop and the amplifier is continuously monitored. A functional error is indicated via displays on the unit and at the error output.
Automatic Gain Control (AGC) ensures a consistent level on the listening loop.
Metal Loss Correction (MLC) can be used to correct the frequency response due to metal structures present in the building.
Link connections allow several PROLOOP NX Amplifiers to be combined into one unit.
Loop output B can be switched between 0° or 90° phase shift.
The output signal of both amplifier channels can be monitored via a switchable headphone output.
A screw-fixed cover plate prevents the setting from being changed.
The power switch on the back prevents the unit from being switched off unintentionally.
