PS 8250T/B VA

2-Way Horn Speaker 250 W

  • This 2-way coaxial horn speaker is designed for booth outdoor and outdoor applications !
  • EN54-24 certified, it delivers a superb foreground music.
  • The PS 8250T VA delivers a smooth and powerful beam type sound for a large range of venues, such as airports, mega-stores, stadiums and many more.
  • The 250W powered professional speaker is equipped with an impressing 2-way bassreflex system, consisting of a 12” woofer and a high performance HF-driver with crossover at 2.5kHz.
  • The speaker offers 3 different 100V power tapings 250/125/63W, low impedance operation is also possible.
  • The sturdy high-impact ABS housing with metal hexagon-shaped aluminium grille offers IP66 enclosure protection.

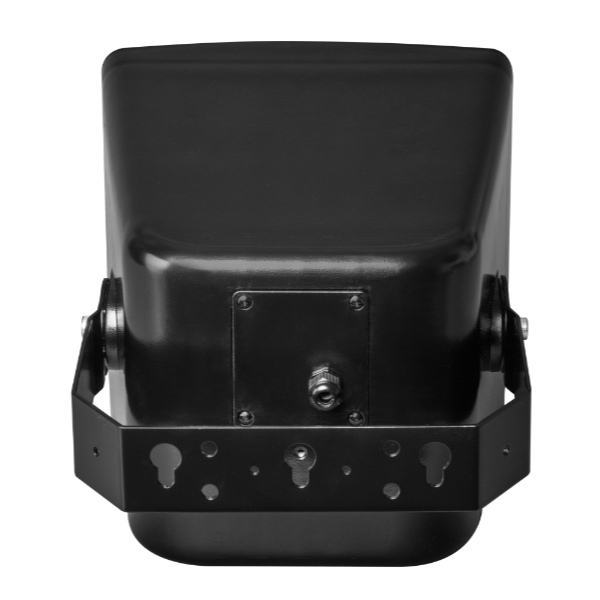

  • Connection is easily done by a screw-terminal at the rear of the speaker, protected by a cover plate with 2 x PG11 cable glands.
  • The metal mounting bracket with adjustable inclination enables simple and safe installation. A safety rope is included in the delivery.

Specifications

Body & grillABS, Aluminium
Nominal power250 W
Nominal Impedance40 Ω
Power 100V Line250 / 125 / 63 W (80 Ω)
Impedance40 / 80 / 158 Ω
Bandwidth75 – 20 000 Hz
Sensitivity (1W/1m)98,5 dB
SPL MAX 1m122.5 dB
Directivity (H-V) @ 500Hz138° – 152°
Directivity (H-V) @ 1kHz60° – 70°
Directivity (H-V) @ 2kHz90° – 110°
Directivity (H-V) @ 4kHz80° – 70°
Speaker12’’ + Driver
ConePP polypropylene
Dimensions (WxHxD)390 x 425 x 418 mm
Weight18,9 kg
Operating temperature-25 to +70°C
Protection IndexIP66
ColorBlack
