- 6 zone amplified matrix with 6 outputs of 120W
- 4 audio inputs, 1 integrated source and 1 super priority EMC input
- MP3/FM/Bluetooth player, 3 mic/line inputs, auxiliary input and EMC priority input
- The 6 amplifier channels can receive the chosen audio source or input individually, volume control of the zones

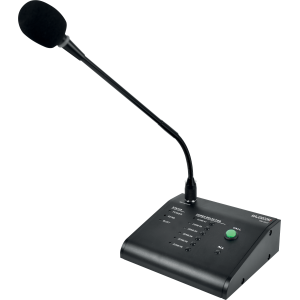

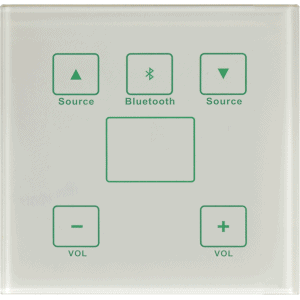

- 6 RJ45 connections that can accommodate remote microphones and/or wall volume plate up to 200 meters by cat5/6 cable
- 6 zones of loudspeaker outputs in 100V or 4/8 Ω
- 3 switchable XLR balanced mic/line inputs with 48V phantom power
- 1 auxiliary input and a built-in USB/SD/FM and Bluetooth player can be switched per matrix to one of the 6 zones independently
- USB/SD/FM audio player and remote control
- 24V control to trigger an alarm message (editable)
All product details
Data Sheet
User Manual
Specifications
| Zones | 6 |
| Rated output power | 6 x 120 W |
| Speaker output | 100V & 4/8 Ω |
| Inputs | Mic/line1-3: 2,5mV, balanced XLR input with 48V phantom power, Line 1-2: 250mV, RCA Mute: 250mV, Phoenix connector |
| Remote mic | Up to 6 RM-6000 per matrix PX-6120MX |
| Wall plate volume/source | Up to 6 LM-6000 per PX-6120MX matrix |
| Bandwidth | 80 Hz – 16 000 Hz |
| THD | < 0,1% |
| S/N ratio | > 70 dB |
| Protection | High temperature, short circuit and overload protection. |
| Power source | 230 V AC or 110 V AC, 50-60 Hz |
| Power consumption | 900 W |
| Dimensions (WxHxD) | 484 x 88 x 320 mm |
| Weight | 15,5 kg |
