- 24 speaker lines can be tested automatically at a configurable regular interval.

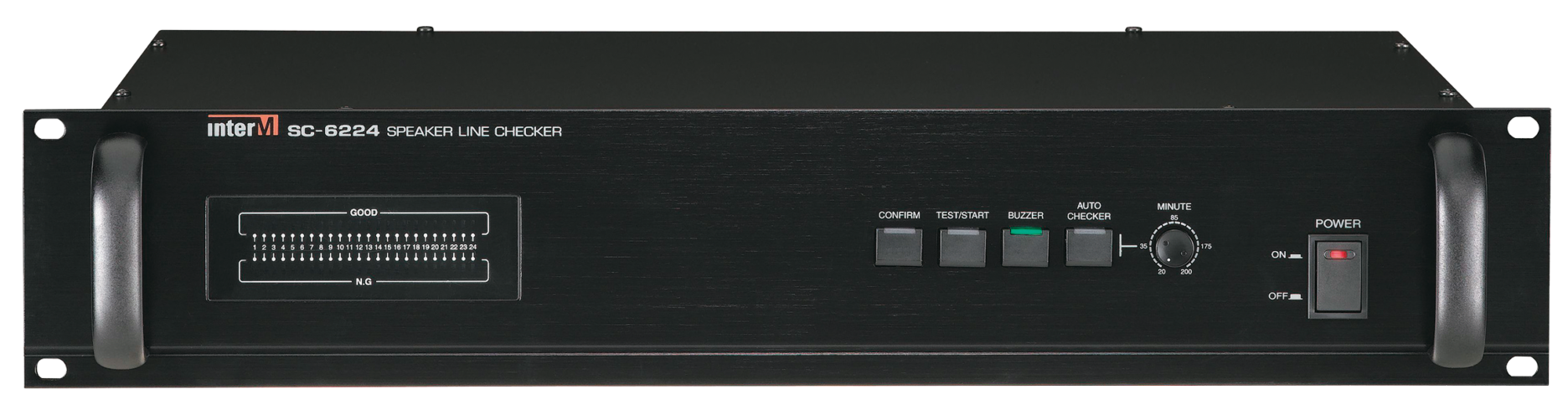

- Open line defects, short circuit, overload are indicated by front panel LEDs as well as by a sound signal.
Downloads
Specifications
Accessories (Optional) | ALIM 24VDC 1.25A |
Channels | 24 |
Dimensions (LxHxP) | 482 x 88 x 280 mm · 2U |
Line impedance test | 20 Ω – 3 k Ω |
Operating temperature | -10°C ~ 40°C |
Power source | 24 V DC, 200 mA |
Test duration / channel | < 100ms |
Test interval | 5-200 min |
Weight (Kg) | 4.4 |
