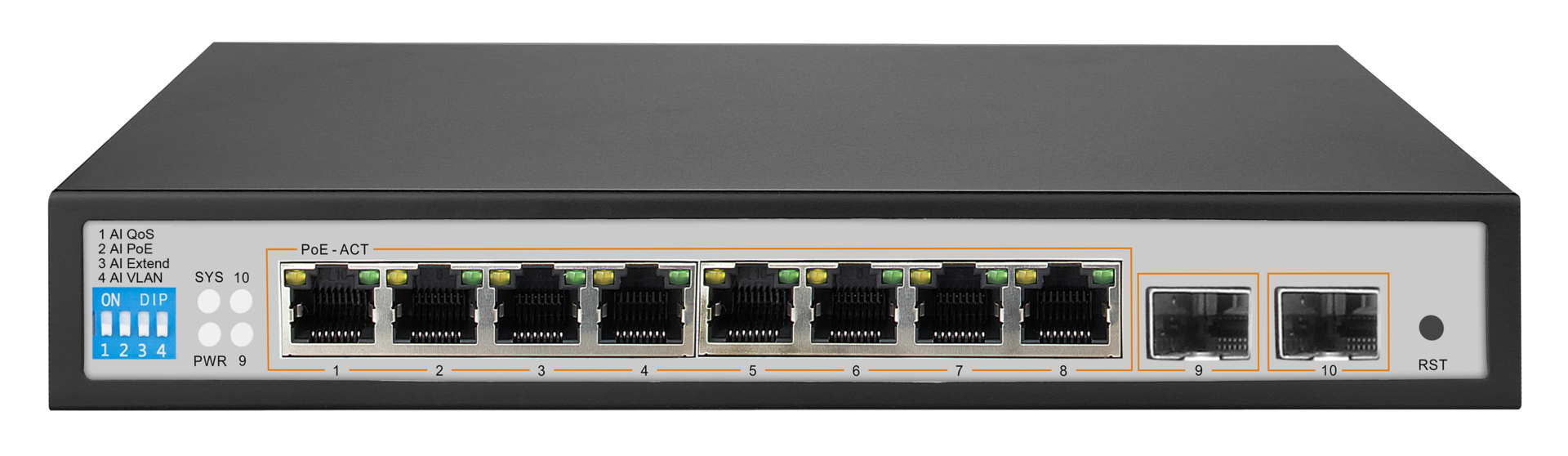

The SWCH POE 8P+2SFP D is a managed AI PoE switch specially designed for security transmission. It supports PoE power supply requirements and Gigabit uplink ports, supports complete security protection mechanisms, complete ACL/QoS policies and rich VLAN functions.
All product details
Data Sheet
Specifications
| Network Interface | • 8 10/100/1000Mbps RJ45 ports • 2 Gigabit SFP fiber ports |
| Protocol standard | IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3ad, IEEE802.3x, IEEE802.3af/at, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.1s |
| Dimensions (LxWxH) | 225mm×120mm×35mm |
| Working temperature | 0°C~40°C |
| Storage temperature | -40~70°C |
| Working humidity | 10%~ 90% RH without condensation |
| Storage humidity | 5%~90% RH without condensation |
| Safety regulations | CE/ROHS/FCC |
| Performances | |
| Backplane bandwidth | 20Gbps (non-blocking) |
| Packet forwarding rate | 14.9Mpps |
| MAC address table | 8K |
| Port cache | 4.1Mb |
| Forwarding mode | Store and forward |
| LED indicators | • 10 Link/Act indicator • 8 PoE indicator • 1 Power indicator • 1 SYS indicator |
| PoE pin | 1/2 (+), 3/6/(-) |
| Power support | • Single port maximum output power : 30W • The maximum power of the whole machine : 96W |
