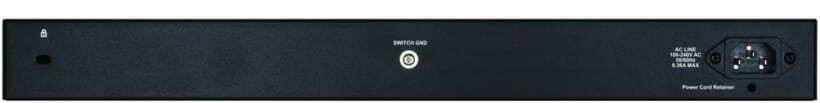

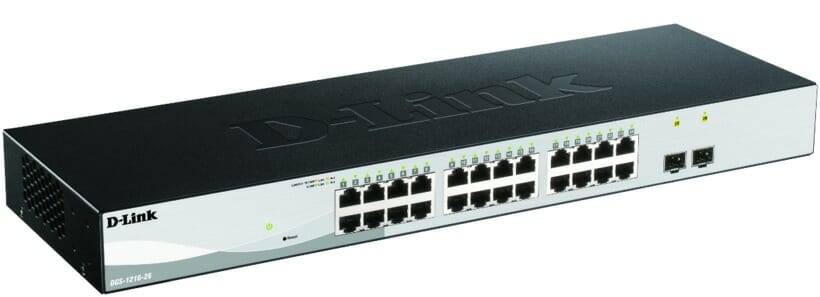

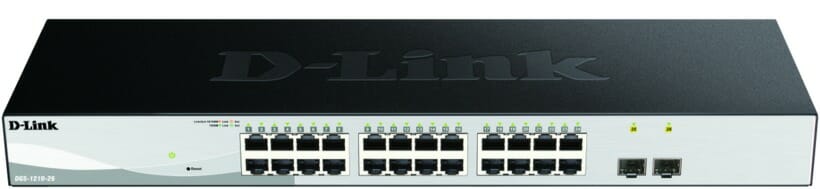

SWITCH GIGABIT 24P

Gigabit switch 24 ports 10/100/1000 Mbps

  • Economical and high performance GbE layer 2 switching.
  • It gives to small businesses 10 times the performance of Fast Ethernet with the simplicity of unmanaged plug and play.
  • Unmanaged switches are a cost-effective solution for small businesses and are suitable for sites that only need basic Layer 2 switching in a flat, single-level network.
  • The half-duplex / full-duplex auto-negotiation feature on each port doubles the throughput of each port.
  • This model has silent fanless operation, automatic functionsfor standalone use and low power consumption.

Specifications

TypeSwitch – 24 ports – unmanaged
Chassis typeDesktop computer, Rack mountable – 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP
PerformancesSwitching capacity: 52 Gbps / Flow: 38.7 Mpps
MAC address8 192 entries
Jumbo frame support9216 bytes
FeaturesControl flow, auto-negotiation, auto-uplink (auto MDI/MDI-X), half-duplex mode, full-duplex, quality of service (QoS), fanless, buffer packets 512 KB, support DiffServ Code Point (DSCP)
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Flash memory1 Mo
Interfaces24x RJ45 in 1000Base-T and 2xSFP Gigabit LAN
Power supply120/230 V AC ( 50/60 Hz )
TemperatureOperating : 0 to 40°C // Storage : -40 to 70°C
HumidityOperating: 10% to 90% without condensing // Storage : 5% to 90% without condensing
Dimensions (W x H x D)440 x 44 x 173mm
Weight2.2kg
