- Optimal cooling.

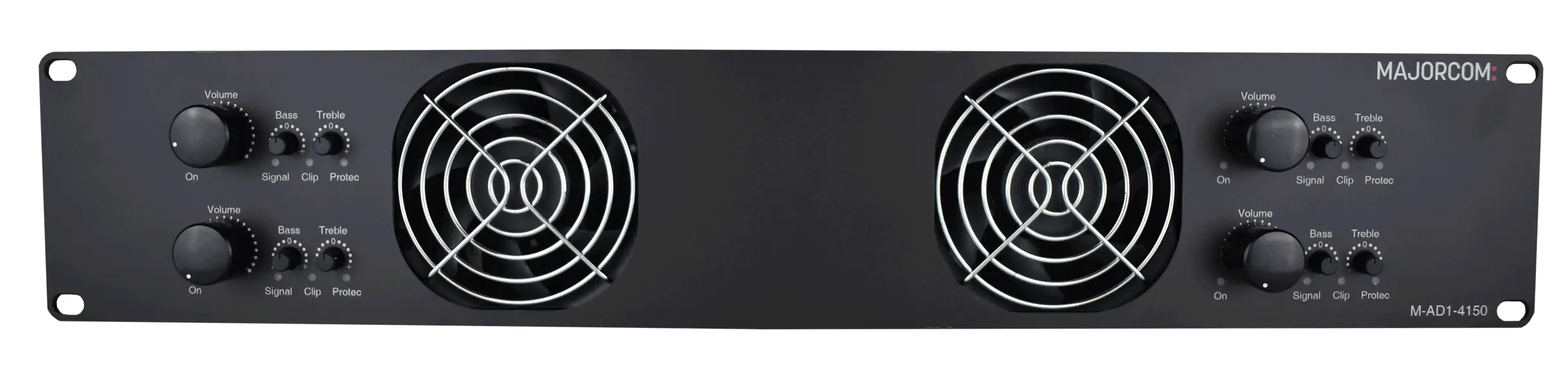

- Easy to use : basic settings on the front panel.
- Space saving : 2U
- High performance > 91 % (class D technology).
- Made in France
All product details
Data Sheet
Specifications
| Power | 4 x 150W | |
| Nominal Power consumption | 720W | |
| 1/8 Pmax Pink noise Consumption | 120W | |
| INPUT | Input sensitivity | 0 dBu |
| Input type | Balanced | |
| Connectivity | Combo : XLR + 6,35mm Jack | |
| OUTPUT | Voltage | 100V/70V (dip switch selection) |
| Bandwidth | 20Hz à 20kHz (-3dB @ -10dB ref rated output) | |
| Distorsion | < 0,5% @ rated output, 1kHz | |
| S/N ratio | > 80dB | |
| Connectivity | 2 pts removable terminal block (pitch 5,08mm) | |
| OTHER | Mute input | Dry contact |
| Connectivity | 2 pts removable terminal block (pitch 3,81mm) | |
| Power supply | Mains: 110V-265V AC 50Hz/60Hz | |
| Material | Metal | |
| Color | Black | |
| Weight | 6,5 kg | |
| U-dimension | 2 U | |
| Dimensions (LxWxD) mm | 422 x 328 x 44 | |
| Fixing distance | 465 mm |
