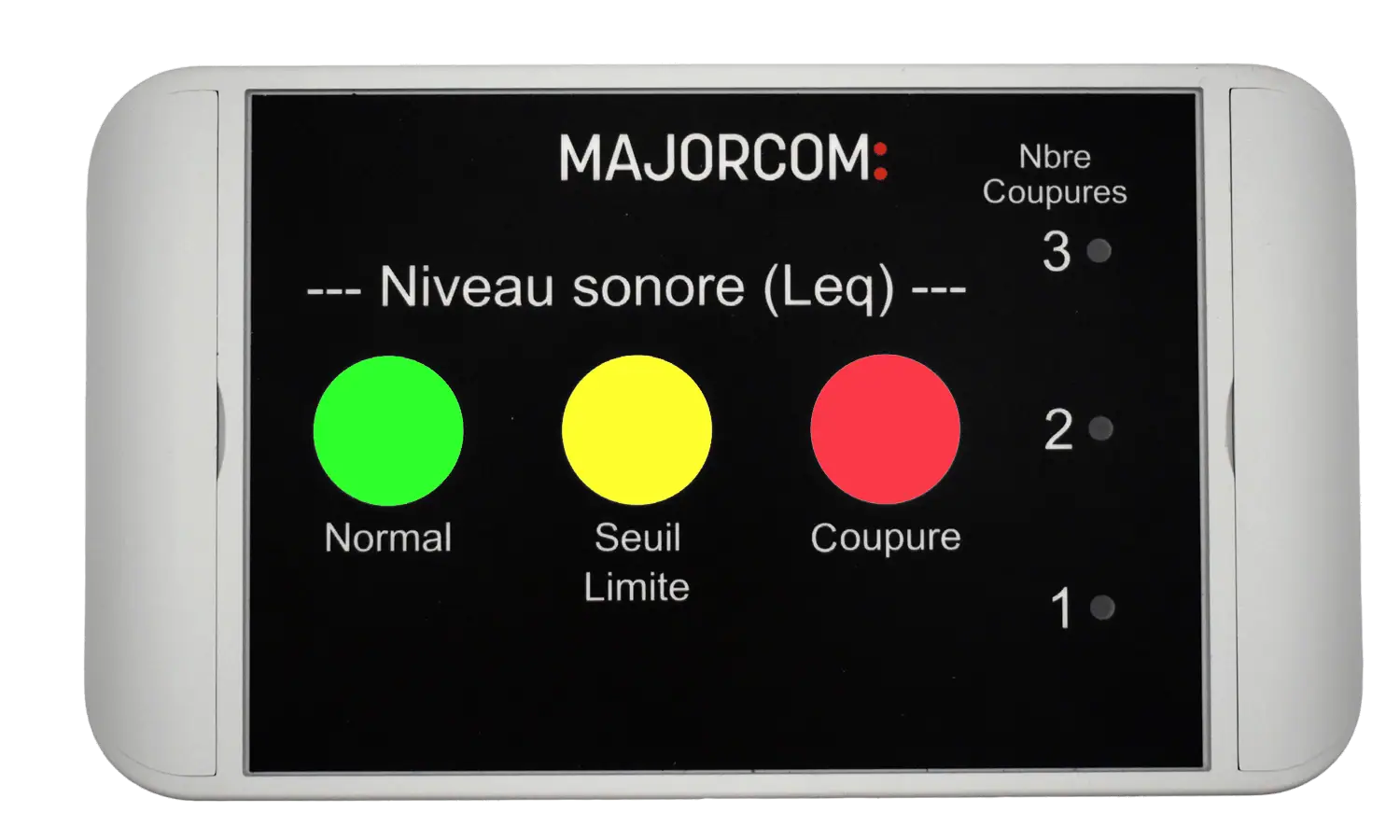

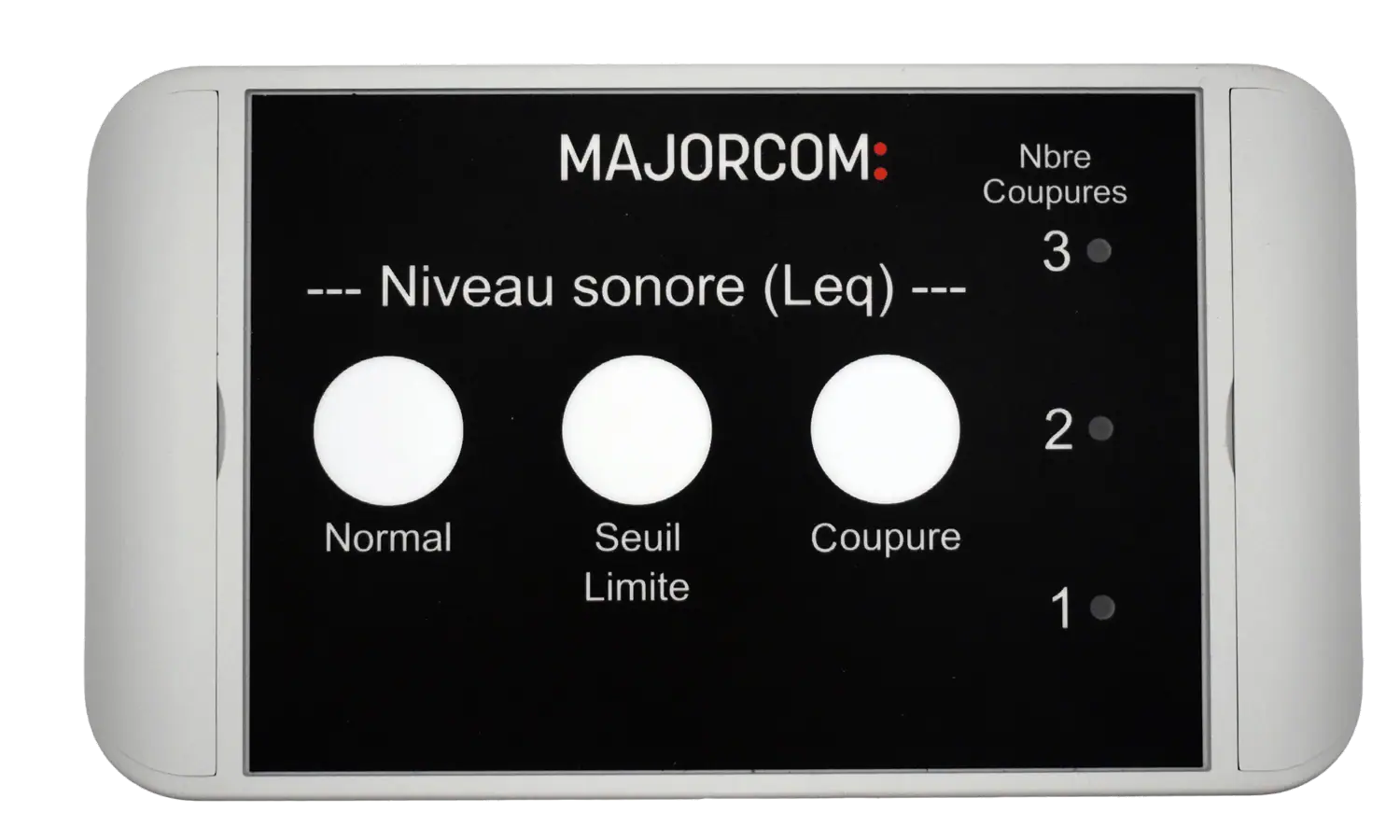

- The AF-LED1 is a compact SPL display compatible with our LC-1A-PACK1 and LC-1A-PACK2 to limit the noise level in public places.
- It uses various LEDs to display the sound level (normal / threshold / cut-off) and the number of electrical cuts made by the limiting system (maximum of 3 short cuts before a long cut).
- Made in France
All product details
Data Sheet
Specifications
| Display type | LED sound level indicator |
| Information displayed | Number of interruptions (3 red LEDs) + Sound level range (green LED = normal / yellow = threshold reached / red = exceeded) |
| Inputs | 6 controls + 5V power supply |
| Connections | 8-pin screw terminal block |
| Mounting | Wall-mounted using 4 screws |
| Power supply | 5V DC |
| Dimensions (W x D x H) | 160 x 90 x 50 mm |
| Weight | 0,275 kg |
| Housing material | Shockproof ABS |
| Protection index | IP66 |
