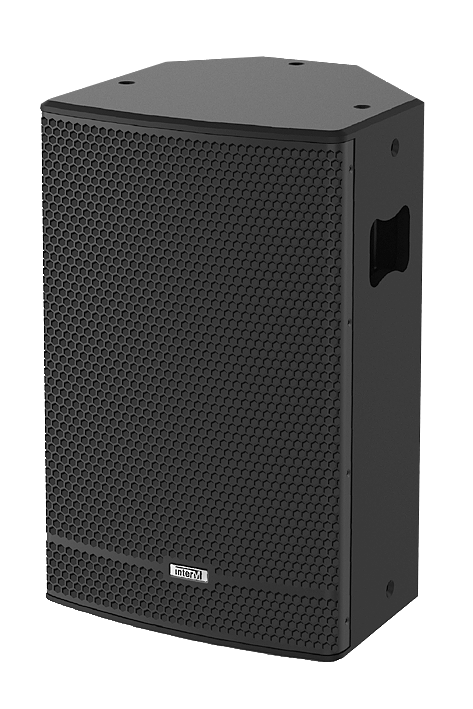

– The HE 12 is a passive 2-way loudspeaker with a high-performance
woofer and a high-power titanium cone driver that covers a wide
frequency range. This full-range speaker offers great clarity
and can be used in many environments.
– With its asymmetric waveguide providing horizontal directivity of
angle of 70° (far field) to 110° (near field) and a vertical directivity
angle of 30° (up) to 45° (down), and can even be used as a monitor.
can be adjusted to cover the required stage area.
In addition, the rotating waveguide allows precise coverage whether the loudspeaker is
whether the loudspeaker is mounted horizontally or vertically.
vertically.
– Computer-simulated loudspeaker tuning and passive crossover
and passive crossover tuning deliver linear frequency response, rich bass and well-balanced
definition.
All product details
Data Sheet
Specifications
| MODEL | HE 12 |
| Type | 12“ 2Way Passive Point Source |
| Frequency Response (±3dB) | 107Hz ~ 19kHz |
| Frequency Response (-10dB) | 51Hz ~ 20kHz |
| Rated Power (AES) | 400W |
| Rated Power (Peak) | 1600W |
| Sensitivity (1W/1m) | 94dB |
| Maximum SPL (Peak) | 126dB |
| Nominal Dispersion | 70° (narrow) ~ 110°(wide) H / 30° (up) ~ 45° (down) V |
| Nominal Impedance | 8Ω |

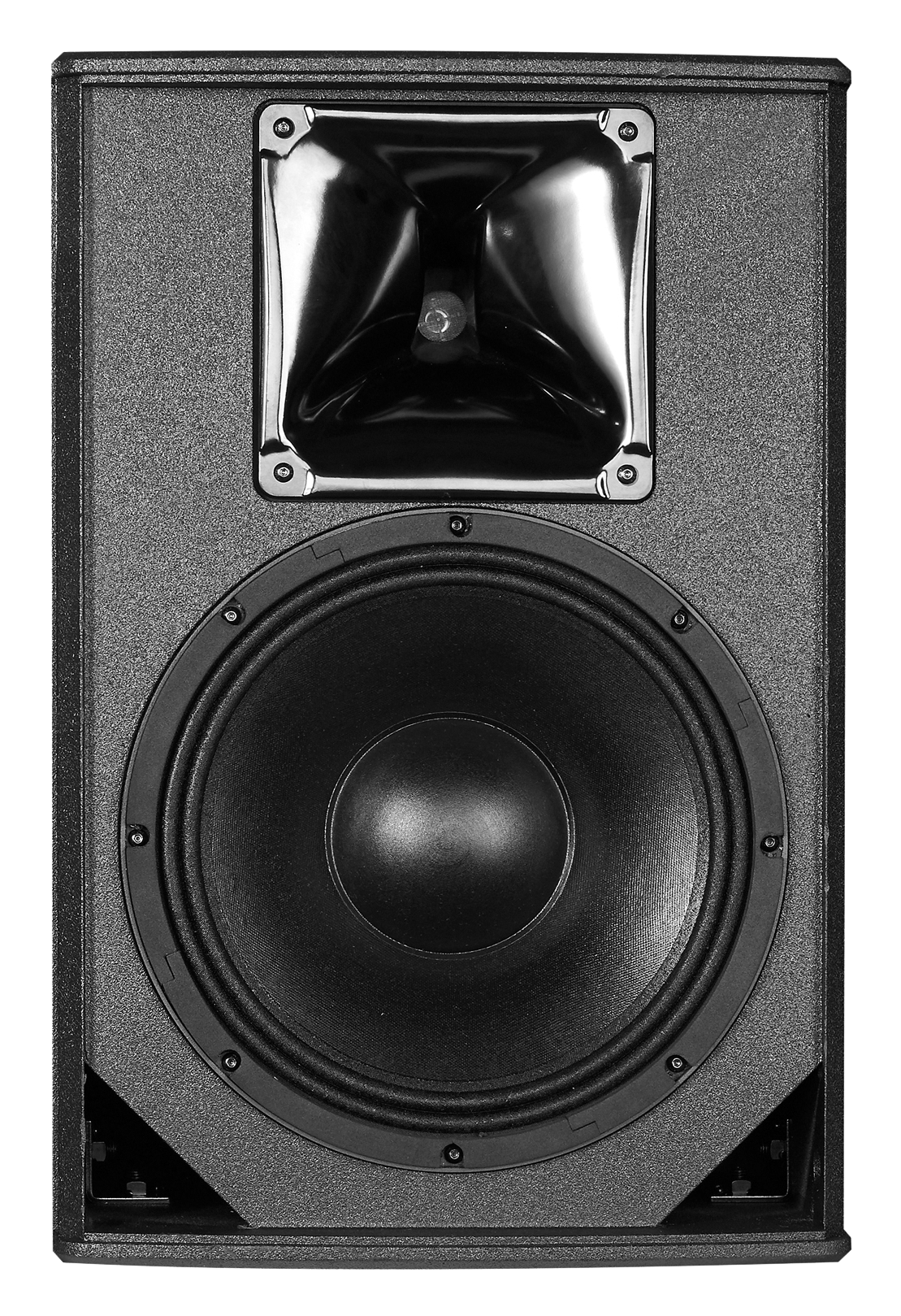

| LF Driver | 12“ Woofer, 3“ voice coil |
| HF Driver | 1“ Tweeter, 2.03“ voice coil |
| Horn | Asymmetrical Horn (Rotatable) |
| Enclosure Material | High-density MDF 15T, Polyurea Coating |
| Grill | SECC 1.5t, Powder Coating/ BLACK |

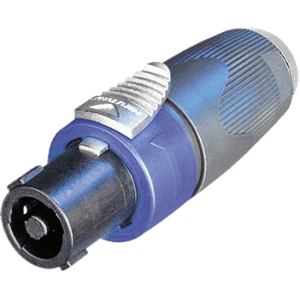

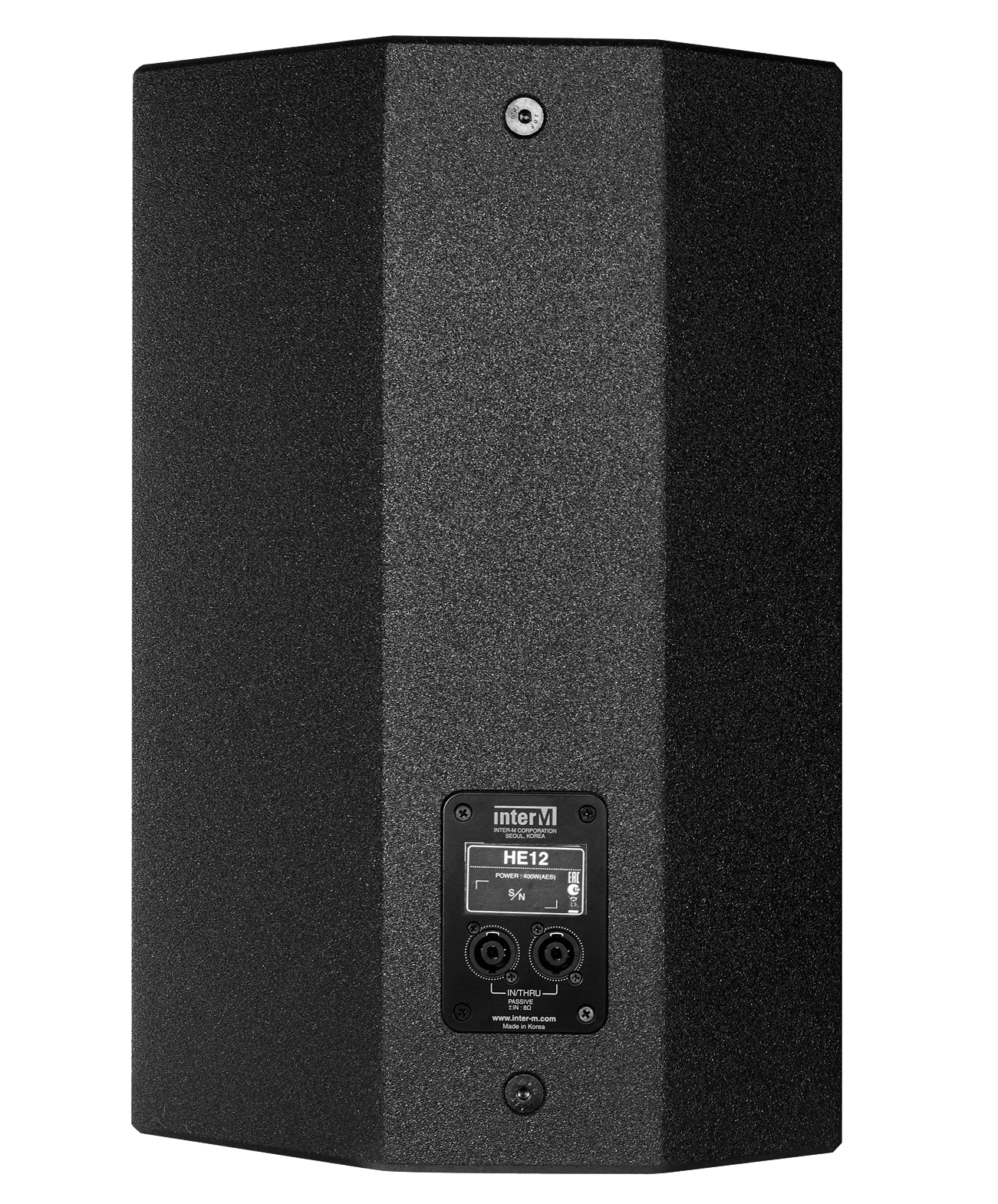

| Connection | 2 X SPEAKON(1+,1-) [Parallel] |
| Fittings/Suspension | 12xM10 inserts (3xtop, 3xbottom, 2xrear, 2xleft, 2xright) |
| Finish | Polyurea Coating |
| Color | Black |
| Weight (Net) | 26,44kg |
| Dimensions (W×H×D) | 380 × 570 × 380mm |
