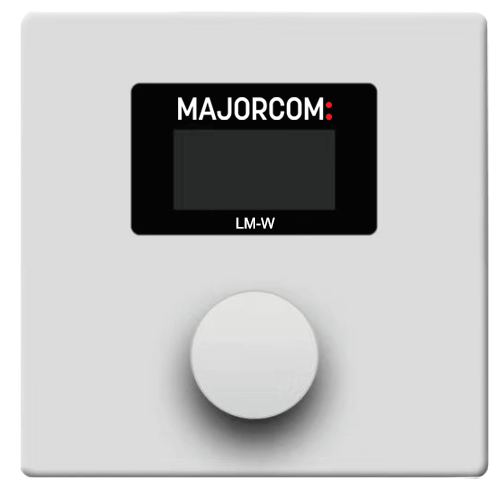

LM-W

Wall Control LCD Panel for DNM-1616,1616D,88,88D

Programmable IP/PoE wall control panel with custom editing control function, supporting up to 32 control functions :

  • Gain control
  • Mute
  • Presets
  • Matrixing
  • Built-in or surface-mounted

This wall control panel is ideally positioned and assigned to a zone in order to control the volume and the choice of sources remotely.

All product details

Specifications

Type of screenOLED
Screen size29.5mm x 14.5mm
Type of buttonRotary encoder with pressure selection
ConnectionEthernet

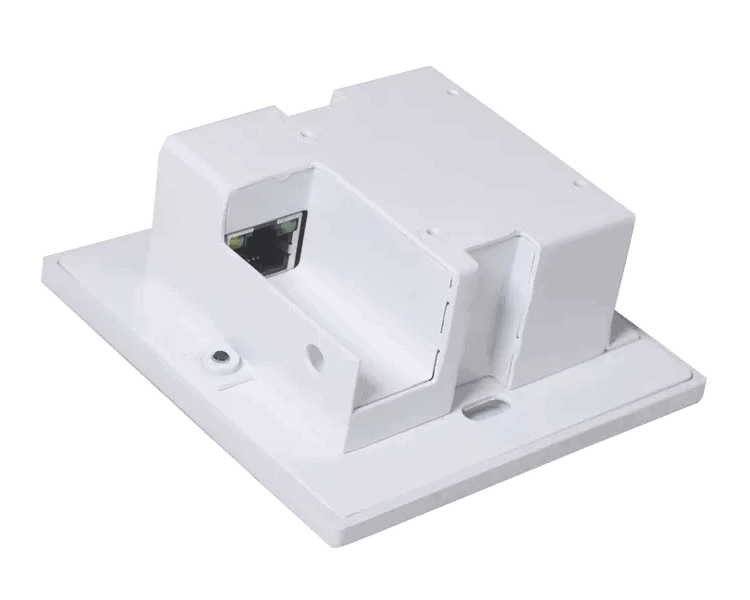

Type of connectionRJ45
PROGRAMMABLE CONTROL FUNCTIONS
Volume controlYes
Preset recallYes
Buttons controlYes
External controlsYes
MatrixYes
MECHANICS
PoE power requirementsPoE
Maximum power consumption100mW
Dimensions (HxWxD)62mm × 57mm × 30mm

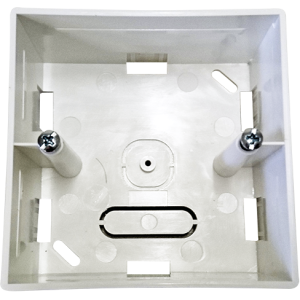

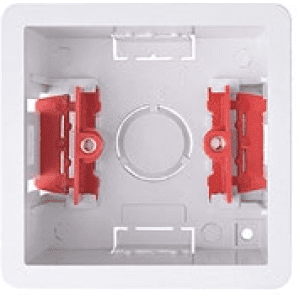

Wall box (HxWxD)83mm × 83mm × 50mm

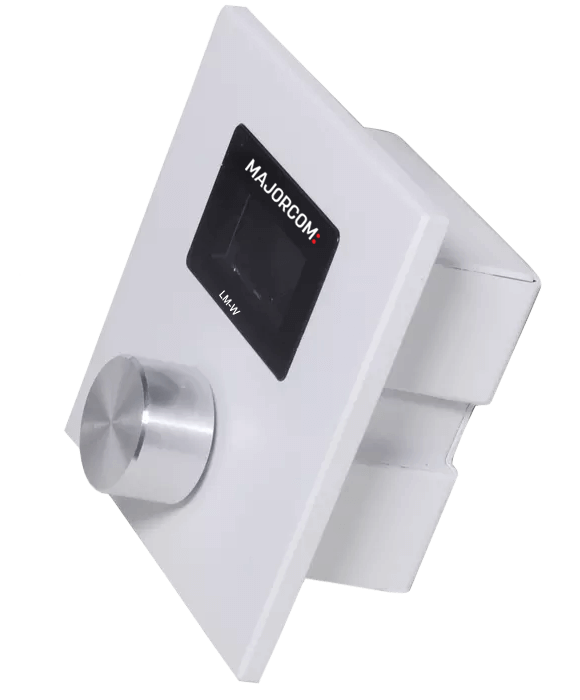

ColorWhite, with silver rotary encoder
Operating temperature0 - 40°C
Shipping weight0.4kg
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
