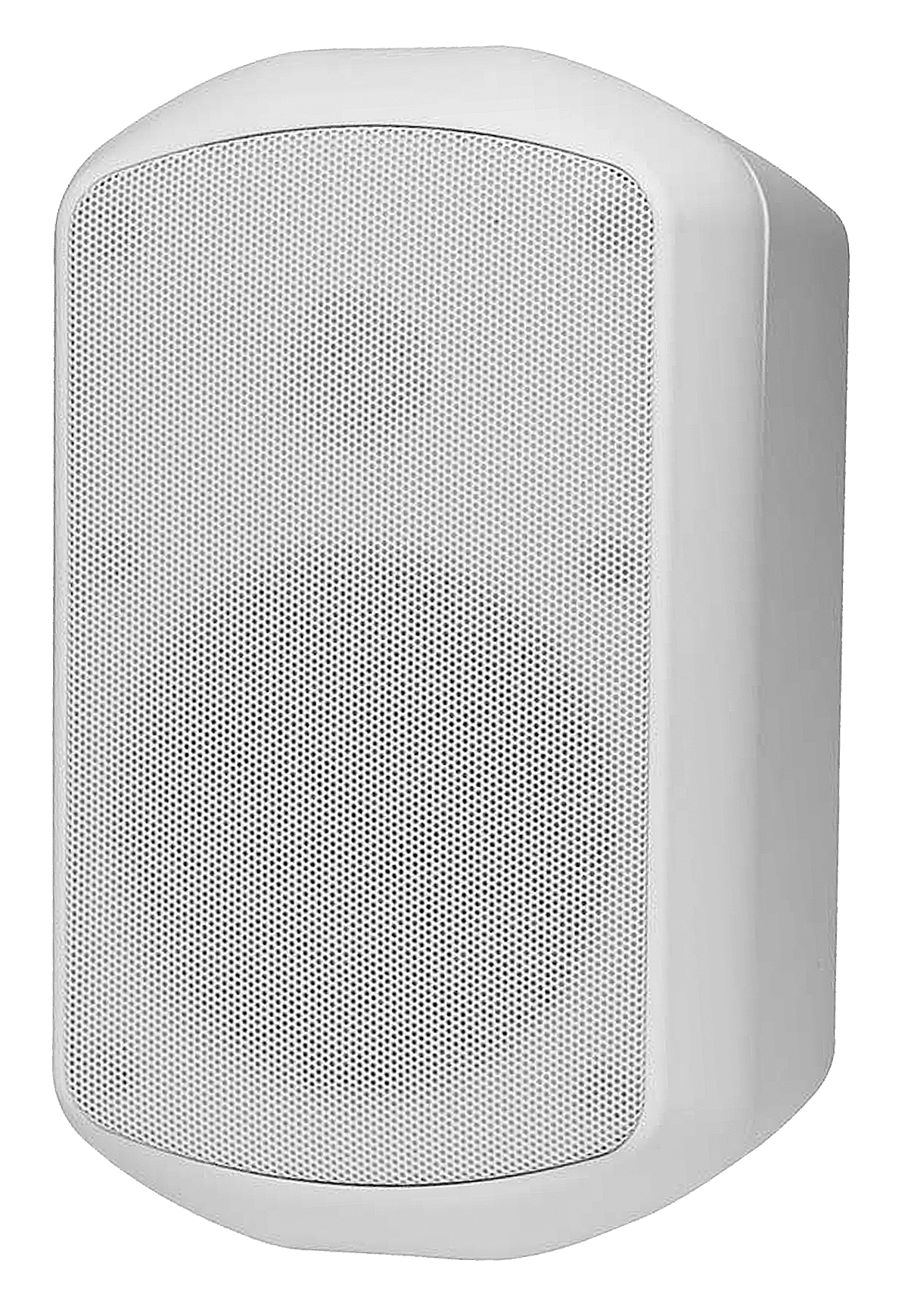

- The MS Serie compact wall speakers impress by a sophisticated design and by its powerful sound.
- Perfectly suitable for installations where high sound quality is needed..
- The 30W powered speaker is equipped with a high quality 2-way system and a 100V transformer with 3 power adjustments.
- The impact-resistant, UV-resistant ABS plastic housing assures enduring stability.
- For additional reliability, a thermal fuse and a wetness impregnation of the speaker is provided.
- The speaker is also secured with protection class IP65 against the risks of environmental influences.
All product details
Data Sheet
User Manual
EASE files
BIM files
Specifications
Body & grill | ABS |
Nominal power | 50 W |
Nominal Impedance | 200 Ω |
Power 100V Line | 50 / 25 / 12,5 / 6,25 W |
Impedance | 200 / 400 / 800 / 1 600 Ω |
Bandwidth | 52 – 25 000 Hz |
Sensitivity (1W/1m) | 88,8 dB |
SPL MAX 1m | 105,1 dB |
Directivity (H-V) @ 500Hz | 360° x 360° |
Directivity (H-V) @ 1kHz | 200° x 155° |
Directivity (H-V) @ 2kHz | 110° x 120° |
Directivity (H-V) @ 4kHz | 80° x 25° |
Speaker | 6’’ |
Dimensions (WxHxD) | 205 x 330 x 192 mm |
Weight | 3,65 kg |
Operating temperature | -25°C ~+70°C |
Protection Index | IP 65 – IK 09 |
