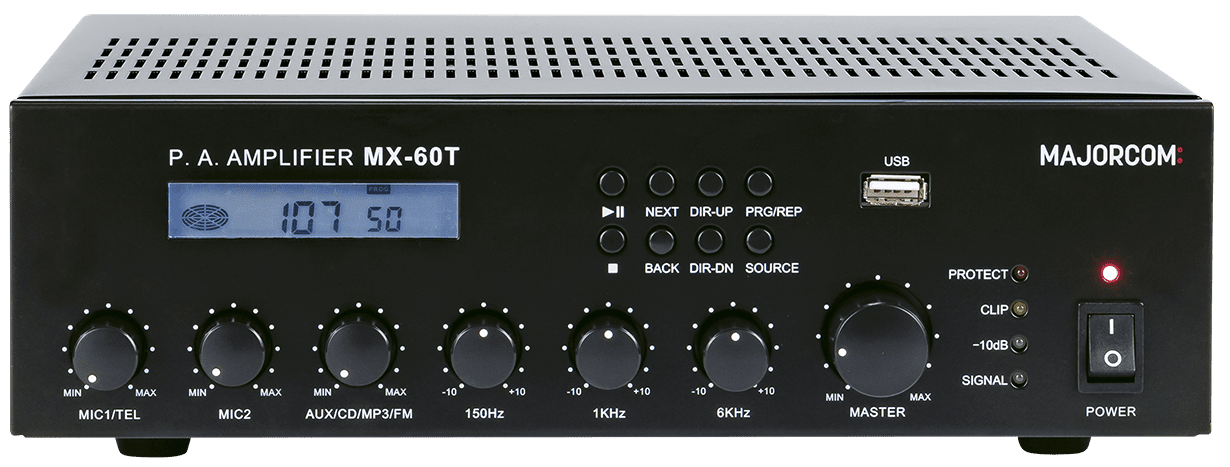

- 60W compact device with low impedance and 100V line outputs.
- It includes a AM/FM tuner with a 20-station memory and a USB port to play MP3 files contained in a USB key.
- It is fitted with a priority balanced microphone input that can be remote controlled with dry contact, an unbalanced microphone input, an AUX input and a CD input.
- A 3-band equalizer provides a perfect equalization of the tone.
Downloads
Data Sheet
User Manual
Specifications

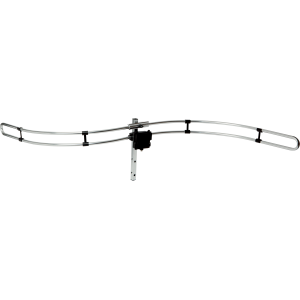

Accessories (Optional) | AFM |
Bandwidth (Hz) | 100 – 20000 |
Chime | No |
Dimensions (W x H x D) (mm) | 270 x 75 x 230 |
Equalizer | +/-10dB – 150Hz / 1KHz / 6KHz |
Input | 1 and 2 MIC – 3 AUX/CD/FM/USB |
Integreted source | FM – USB MP3 |
Output impedance | 15V/4Ω – 22V/8Ω – 31V/16Ω – 70V/82Ω – 100V/166Ω |
Output level / impedance | MUSIC ON HOLD |
Power | 60W |
Power source | 230VAC – 50/60Hz |
Priority | MIC 1 |
Signal / Noise | > 60dB |
THD | < 2,5% |
Weight (Kg) | 5 |
