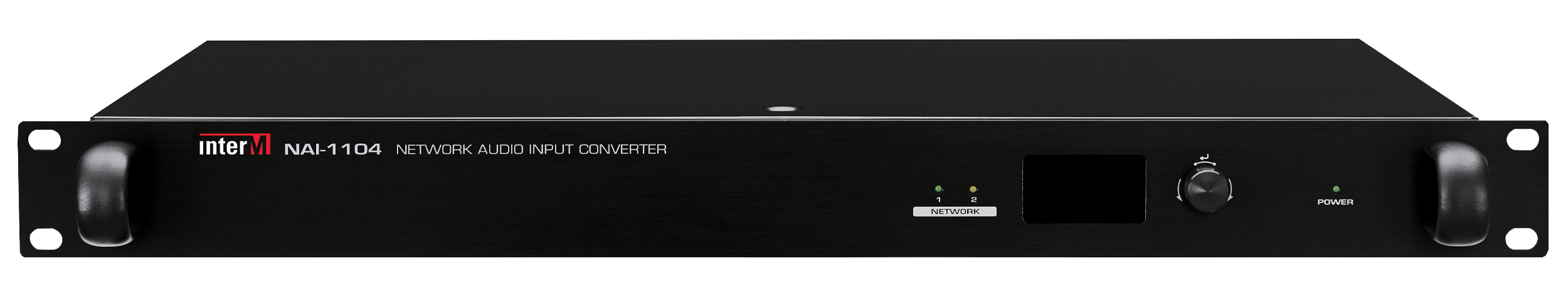

- The NAI-1104 allows up to 4 physical audio sources (CD player, radio tuner, etc.) to be added to the IP speaker system.
- 4-channel line-level balanced audio IP conversion for the IP speaker system.
- 4 Dry contact inputs (NO: normally open) inputs for scenario triggering and activation.
- AC/DC power supply.
- Proprietary audio and data transport protocol over network (AOE).
All product details
Data Sheet
Leaflet
Specifications
Audio input sensitivity | LINE : 0dBV, MIC : -60dBV |
Nominal output | 0dBV |
Phantom power | +24V / 14mA |
THD @ 1kHz input, 0dBV output | LINE : less than 0.04%, MIC : less than 0.2% |
MIC: Less than 0.2% S/N at 1kHz, 0dBV output, A-WTD | LINE : Over 70dB, MIC : Over 65dB |
Bandwidth | LINE : 20Hz~20kHz, MIC : 20Hz~20kHz |
Network communication | 100/1000 base-T (RJ-45) |
Network cable length | MAX 100m |
Dry contact | 4-channel input |
Operating temperature | -10℃ ~ +40 |
Power supply | AC 120-240V ~, 50/60Hz, 0.43A, DC +24V, 800mA |
Power consumption | 22W |
Weight | 3.1kg |
Dimensions (WxHxD) | 482 x 44 x 280 mm |
