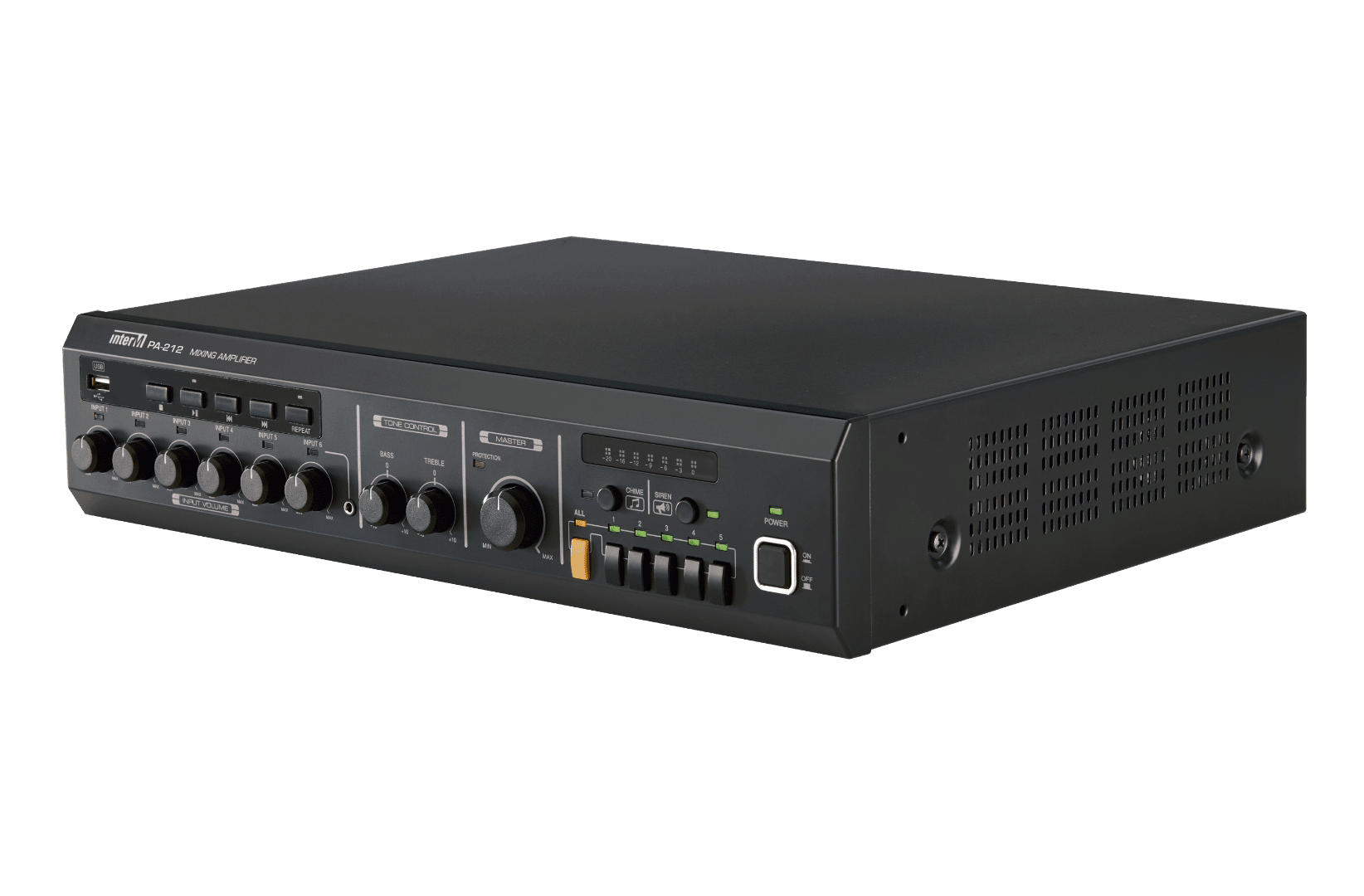

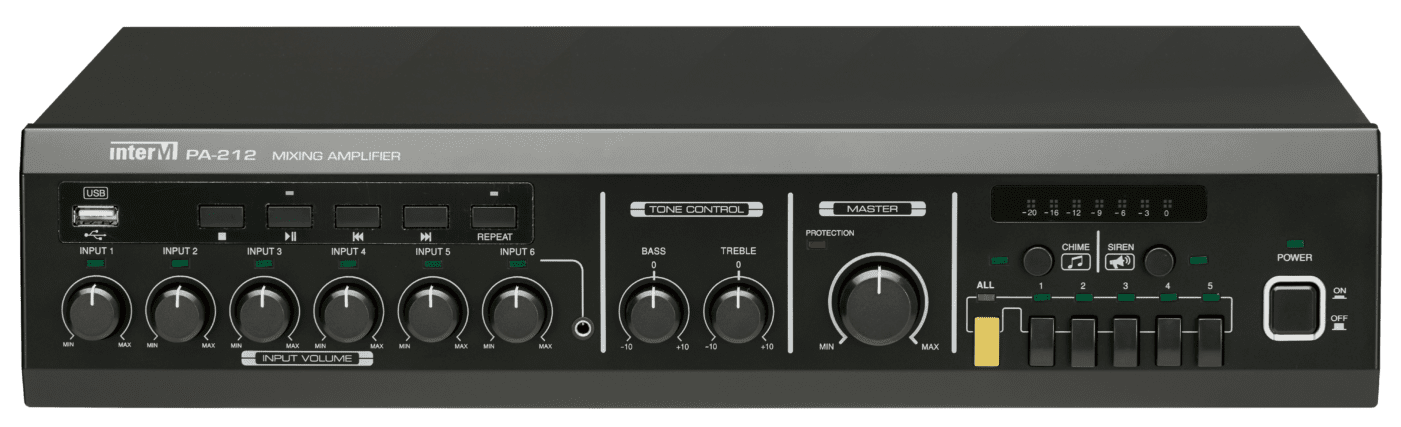

PA-212

120W / 100V / 70W / 4Ω Preamp / Preamp Ampli

  • 120W / 100V / 70W / 4Ω Preamp / Preamp Ampli
  • Class-D amplifiers with output power of 120W
  • HIGH-Z (100V / 70V) and Low-Z (8Ω / 4Ω)
  • Multiple inputs (three microphones / lines, two lines, two stereo / line inputs, such in, USB) and a function to control the volume of each channel

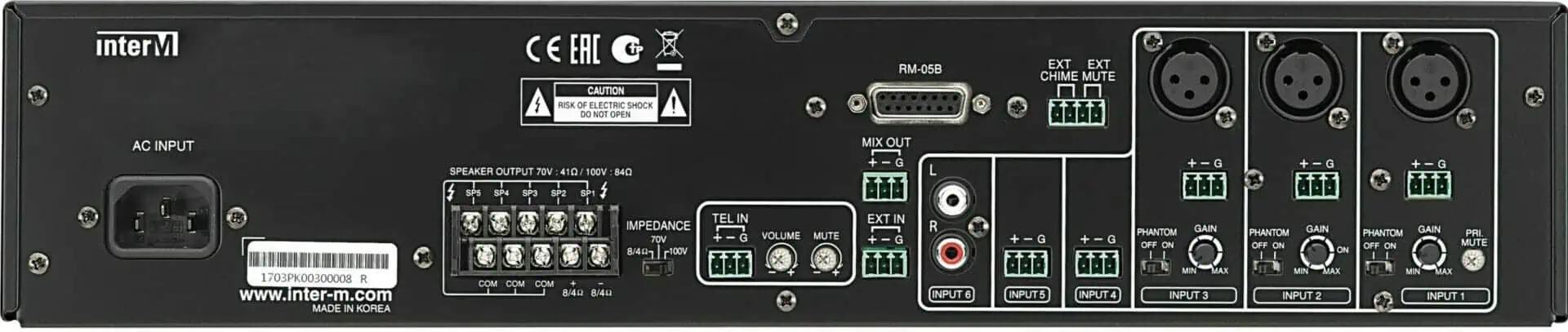

  • Ext in in and mix out
  • Display of the input signal controlled by the channel and the level of the output LED
  • Tone control (severe / acute)
  • 5 Switches (zone selection switch)
  • Broadcasting in priority
  • TEL IN> INPUT 1> INPUT 2 = INPUT 3 = Input 4 = Input 5 = INPUT 6
  • External sound cut and external carillon
  • Carillon and siren
  • Optional set of brackets for racking PA-212 / PA-224 amplifiers in 19’’ racks (BKT-A120)

Specifications

Dimension (LxHxP)420(W) x 88(H) x 318.7(D)mm
Frequency response80Hz-17kHz
Input sensibility-20 ~ 0dBu/10kΩ
Operating temperature-10°C~+40°C
Output power120W
Power consumption60W
S/N ratio70dB
THDLess than 1%
Tonality control±10dB
Weight (Kg)7.32kg
