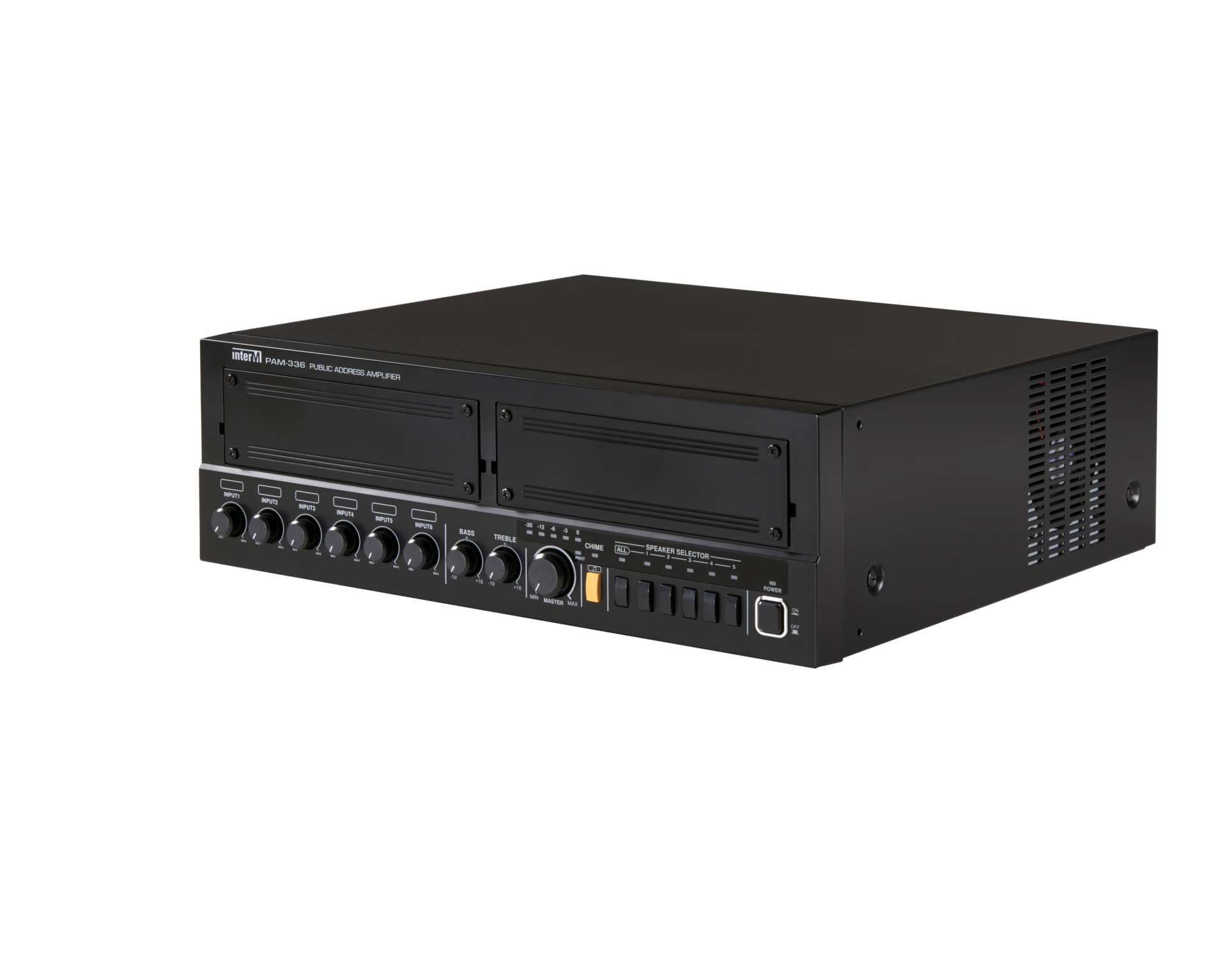

- 360W preamp amp, 5 zones, 2 source modules
- Mounting the module from the front 2 locations.
- 6 entries including 2 priorities + the entry such in super priority.
- Various inputs and connectors: MIC / MIC + PHANTOM / LINE, RCA, EUROBLOCK.
- 5 spear line line activatable or not on the front front to make selective call via the micro RM-05 console in 5 areas.
- Multi-level priority broadcast: (em> such in> rm, entrance 1 & 2> entrance 3 to 6> modules).
- Adjustable tone according to the operating environment (Bass / Treble).
- Chime, extin input for mixer or external preamp and mix out for external amp (booster).
- Ghost power supply.

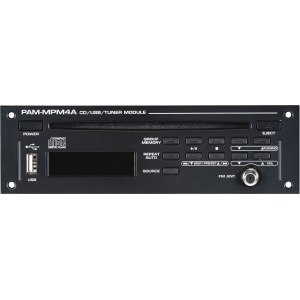

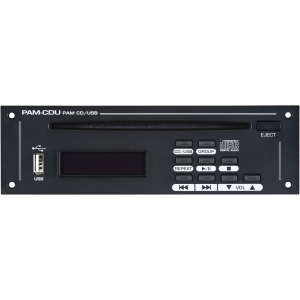

- Option Modules Sources: CD, USB, Bluetooth, SD, FM Radio …

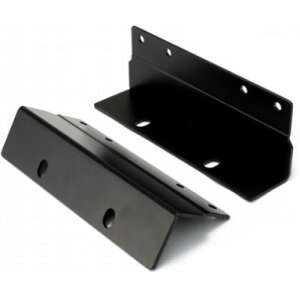

- Set of brackets for racking PAM-312 / PAM-336 / PAM-348 amplifiers in 19’’ racks are included (BKT-PA4000A)
Downloads
Data Sheet
User Manual
Leaflet
CAD Files
Specifications
| Dimensions (LxPxH) (mm) | 420 (l) x 132 (h) x 358 (p) mm |
| Frequency response | 100Hz~15kHz |
| MIX OUT | 0dBV (Balanced) |
| Power | 360W |
| Power consumption | 97W |
| Power source | AC 120V, 50/60Hz or AC 220-240V, 50/60Hz |
| Temperature | -10°C ~ +40°C |
| Tonality control | ±10dB |
| Weight | 6.93kg |
