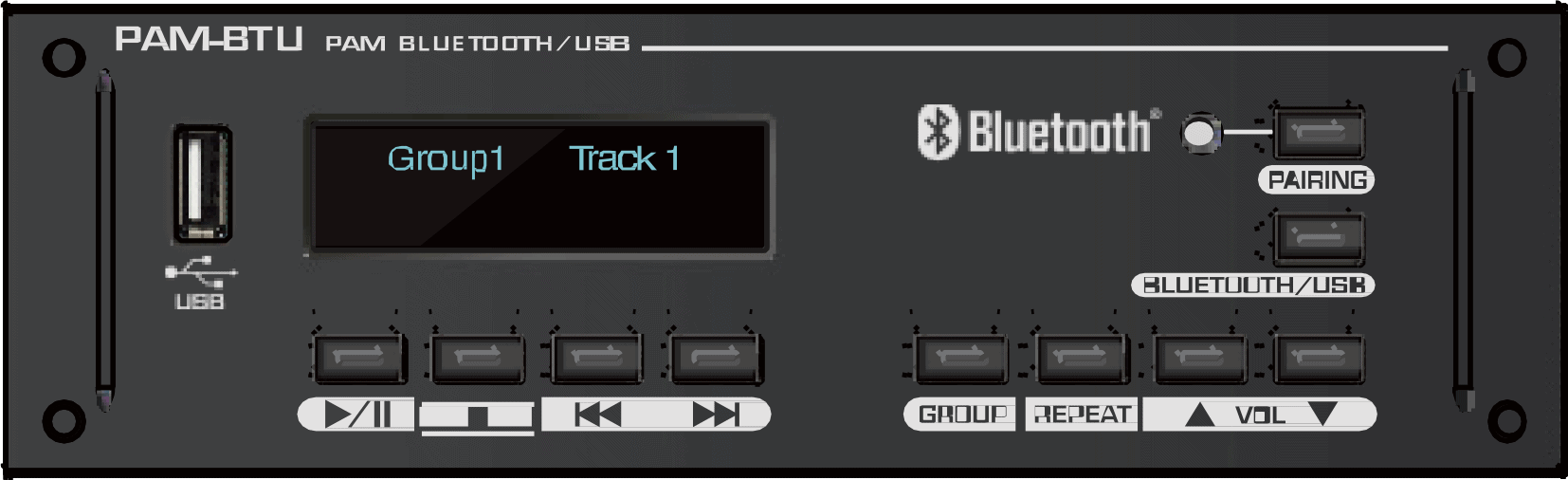

PAM-BTU

Bluetooth / USB module for PAM-3XX

  • Source module (Bluetooth & USB) dedicated for the amplifiers of the PAM series.
  • Front facade insert installation without disassembly of the cover (only with PAM-312 / 324/336/348)
  • PAM-510/520 / 340A / 480A amplifiers are not compatible with frontal mounting. You must remove the top cover from these models and connect it to the internal connector
    It can not be used in the PAM-120A left drawer location
  • Bluetooth wireless audio and USB drive
  • OLED screen
  • Codecs supported for USB: MP3, WMA

Specifications

Output level0 dBV ±3 dB
Signal / Noise73 dB
THD< 0,2 %
Operating temperature-10°C ~ +40°C
Operating power (from PAM series amplifier)24 V DC
Weight0,46 kg
Dimensions (W×H×D)184 x 55 x 182 mm
