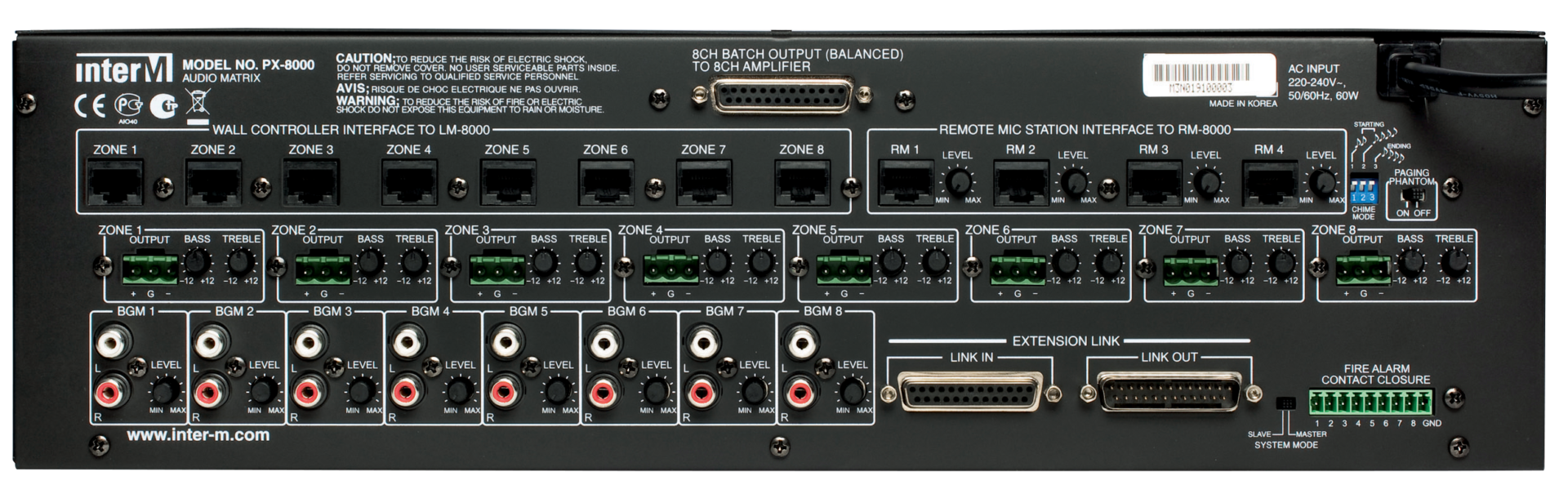

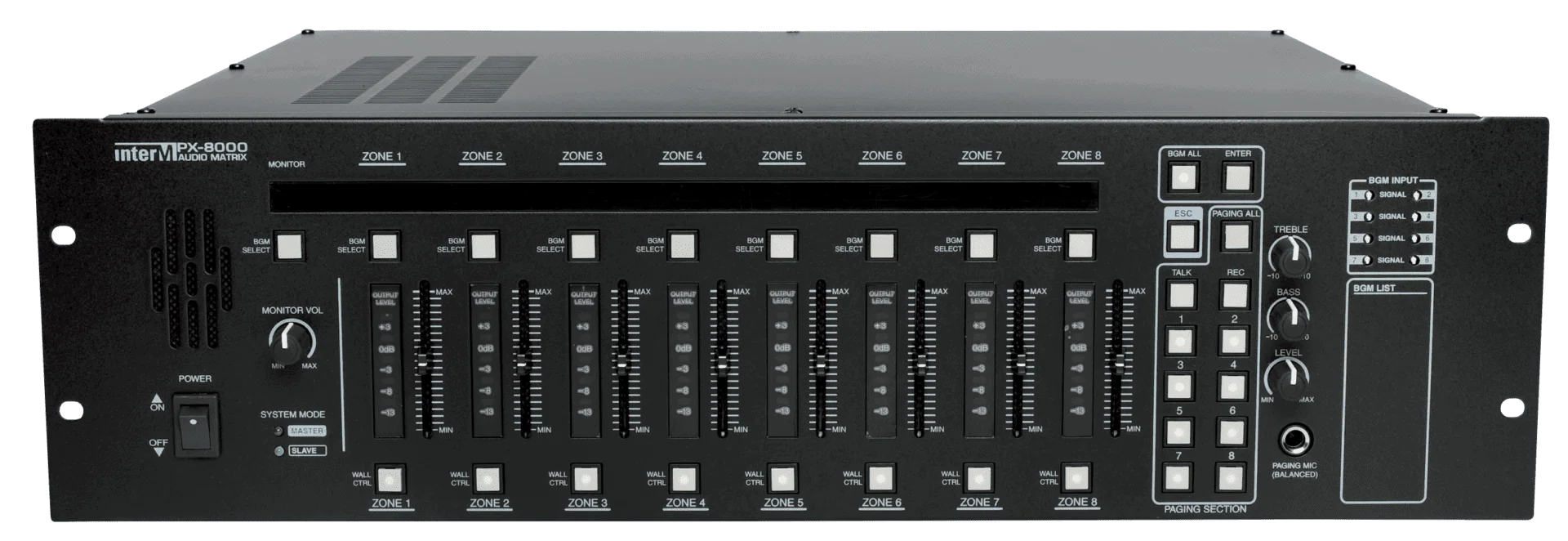

8×8 digital matrix
• Audio matrix for the sound system and emergency message dissemination
 • Priority Management
 • Monitoring Speaker
 • Many audio entries (music, micro desk, local audio source, microphone)
 • Easy installation without configuration of the ID
 • Recording the message from a microphone and reading of the message triggered by dry zone area.
 • Communication via RS-422 special long distances
 • Selectable Carillon Dissemination (PRE / POST ANNOUNCEMENT)
 • Tone control on outputs (low / acute)
 • Display of the input and output level
Downloads
Data Sheet
User Manual
Leaflet
CAD Files
Specifications
| Bandwidth (Hz) | BGM : 60 – 15000Hz – MICRO : 100 – 10000 |
| Communication | RS-422 |
| Dimensions (W x H x D) (mm) | 482 x 132 x 380 – 3U |
| Input | CH1 to 8 BGM |

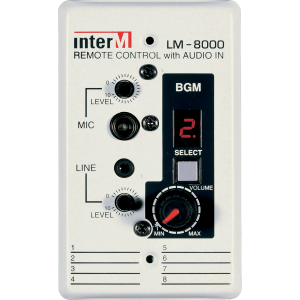

| Local audio source | 8 LM-8000 |

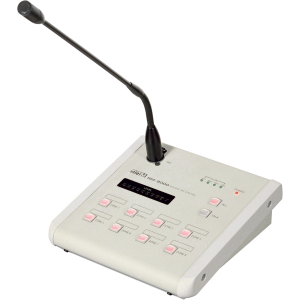

| Microphone station | 4 RM-8000 |
| Output | 8 |
| Power source | 100-120VAC or 220-240VAC – 50/60Hz |
| Priority | MICRO > DRP > RM1 > RM2 > RM3 > RM4 > LM-8000 > BGM |
| Signal / Noise | >75dB |
| THD | <0,05% |
| Weight (Kg) | 7.5 |
