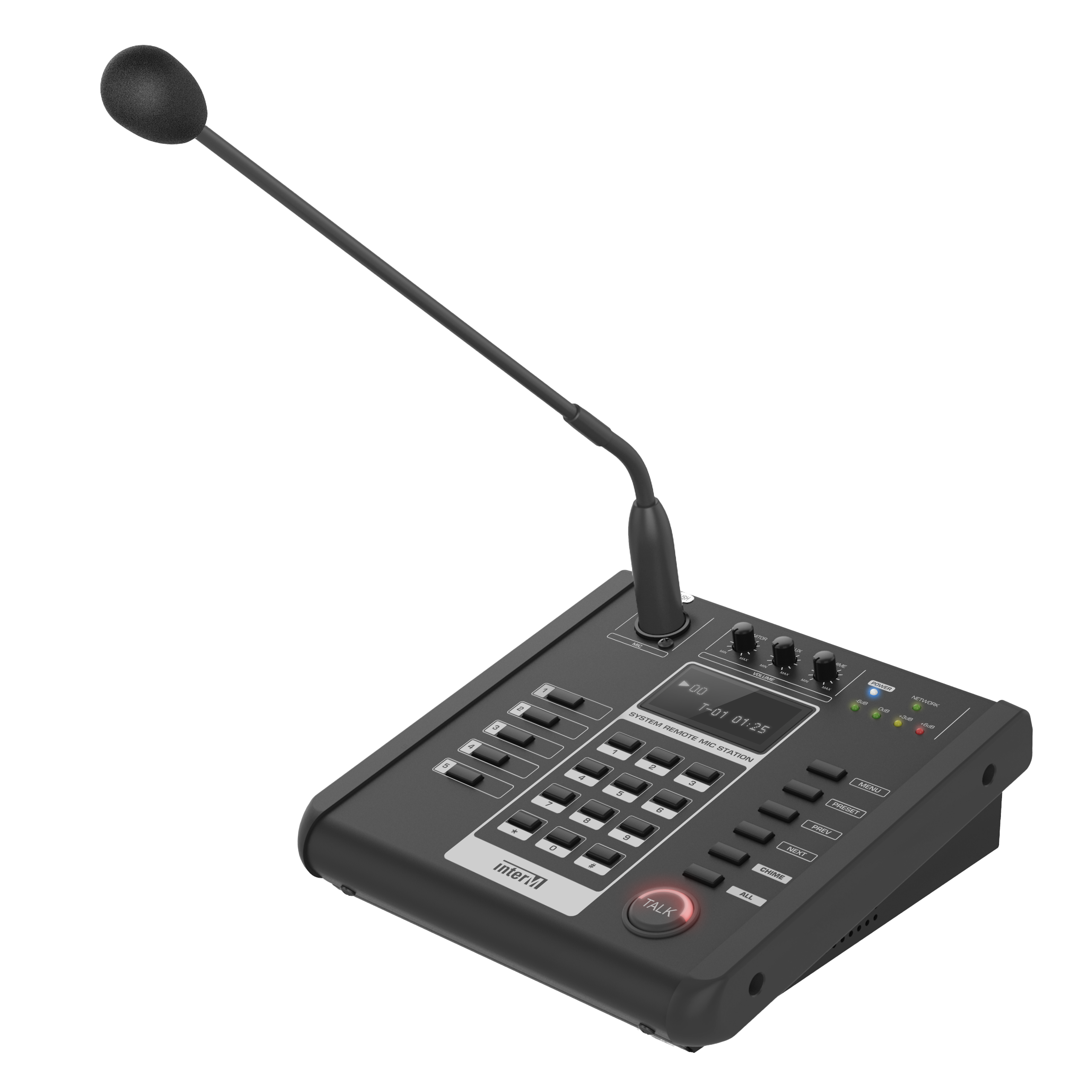

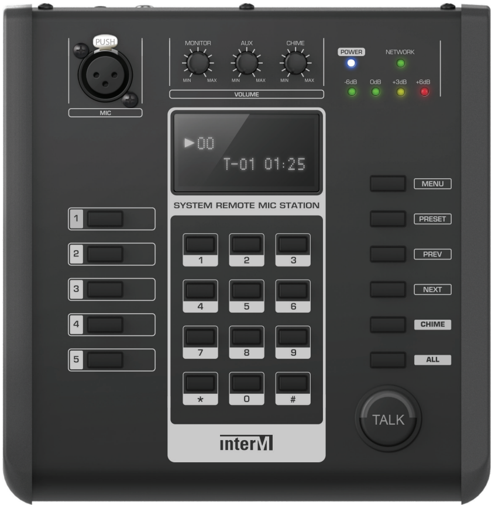

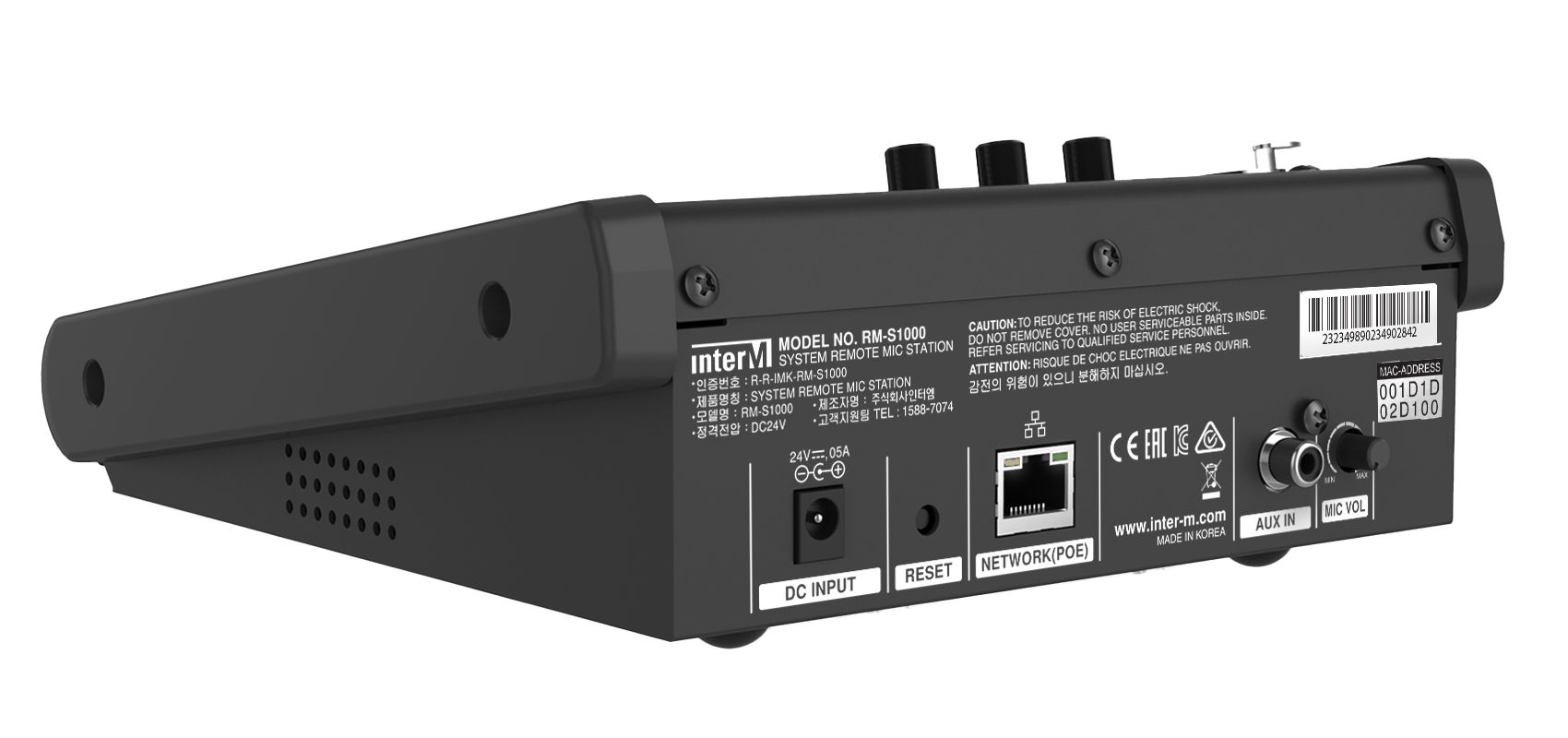

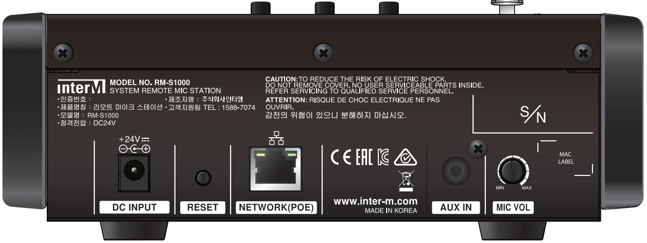

RM-S1000

SIP mic station

  • Paging broadcast through the network
  • Can be used with Inter-M IP speaker/IPA system
  • Inter-M AOE-based network audio transceiver
  • SIP (Session Initiation Protocol) support
  • Support eco canceler for bidirectional calls
  • Audio input/output volume control
  • Monitor audio output through speakers and level meters
  • Powered by POE or DC24V

All product details

Specifications

MICInput sensitivityMIC Vol. Max : -48dBV ± 3dB
MIC Vol. Min : -10dBV ± 3dB
Signal-to-noise Ratio
(20kHzLPF, A-wt)
> 65dB
THD (20kHzLPF)< 0,1%
Frequency Response
100Hz ~ 6kHz
(Input : -48dBV, 1kHz)
0dB ± 3dB
AUXInput sensitivity-10dBV ± 3dB
Signal-to-noise Ratio
(20kHzLPF, A-wt)
> 75dB
THD (20kHzLPF)< 0,1%
Frequency Response
100Hz ~ 18kHz
(Input : -10dBV, 1kHz)
0dB ± 3dB
Network communication100/1000 BASE-T(RJ-45)
Operating Temperature-10°C ~ +40°C
Power SourceDC24V (not included)
POE (IEEE 802.3af) : 44~57VDC
Power ConsumptionMax 12W
Weight1,3 kg
Dimensions (W x H x D)200 x 73 x 206 mm
