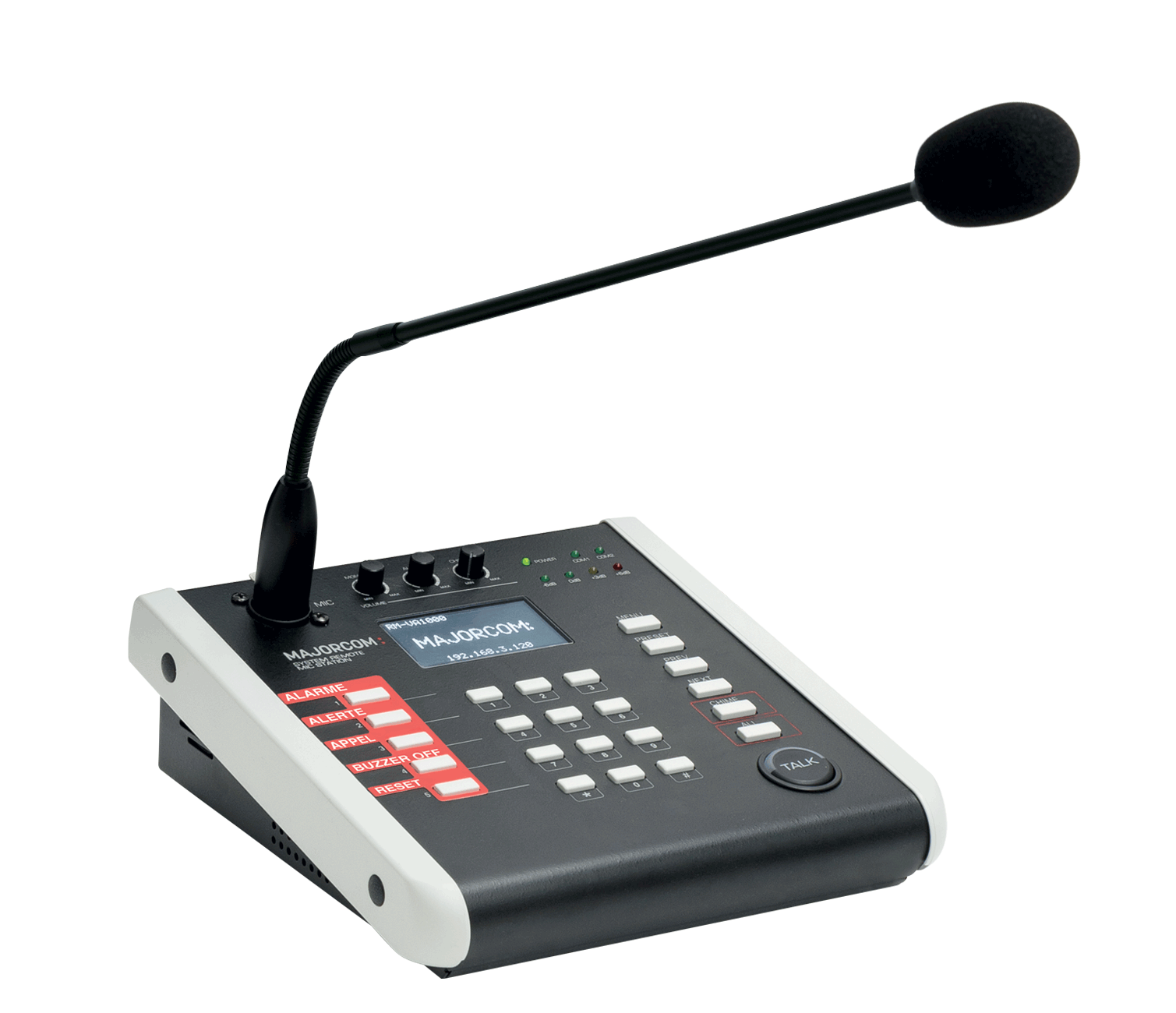

The RM-VA1000 call station is intended for use with EVAMATRIX VA or PA sound systems. It can be configured in security mode (VA) via the supplied kit (sticker and rear cable protection cover) or in public address mode (PA). It is easy to install and simple to use with its LCD screen that provides clear feedback on the configuration of a call.
The RM-VA 1000 only requires a connection to an IPnetwork with a power supply via Ethernet 24VDC from EAE for use in or a simple 230VAC/24VDC adapter supplied for use in comfort mode. In VA mode, the call station is fully supervised and can launch an emergency call, ALARM, ALERT. The LCD screen gives the operator optimal control and permanent feedback.
• The RM-VA1000 call station can be configured for VA or PA.
• Connection to the IP network via a shielded Cat5e cable

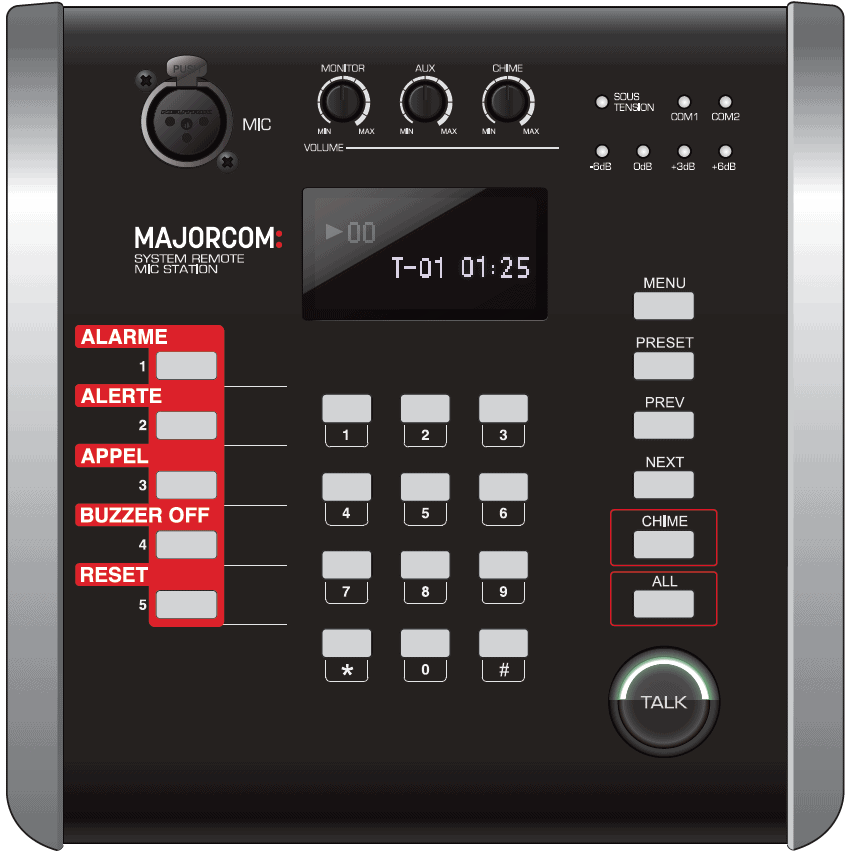

• The 2.3“ LCD display (with function menu navigation key) provides instructions and comments during the emergency call process, pre-recorded messages (ALARM/ALERT).
• Built-in monitor speaker with volume control.
• Local audio line input (mono) for connecting an external audio source in comfort mode only. The audio channel is available on the network and can be assigned to any speaker zone.
• Up to 128 microphone consoles can be connected to the EVAMATRIX system, of which up to 4 are VA consoles.
• The call station is fully compliant with EN54-16 standards for evacuation applications.
• All critical alarm functions are accessible according to access levels. The 2.3“ display provides information on the system status.
• Control of all critical functions; signal and audio assignment is controlled, as well as communication with the network.
• The EVAMATRIX system integrates the SNMP V2c protocol (Simple Network Management Protocol) which allows a management and monitoring software to report any type of fault and status of the sound equipment.
• The EVAMATRIX system integrates seamless security (HTTPS, TLS1.2, SHA256, SSL, AES256 encryption and elliptic curve cryptography).
All product details
Specifications
MODEL | RM-VA 1000 |
Power supply | 24VDC |
Consumption | Max. 10W |
Frequency response | 100Hz – 18kHz à -3dB @ 1kHz |
Signal to Noise Ratio | > 65dB |
Harmonic distortion rate (THD) | < 0,1 % |
MIC | |
AUX input sensitivity | -50dBV |
Output sensitivity | 0dBV |
Signal-to-noise ratio (< 20 kHz LPF, A-WT.) | 70dB or more |
T.H.D (< 22 kHz LPF) | 0,1 % or less |
Frequency response 100Hz ~ 18kHz Input: -50 dBV, 1kHz based) | 0dB ± 3dB |
AUX | |
AUX input sensitivity | -10dBV |
Output sensitivity | 0dBV |
Signal-to-noise ratio (< 20 kHz LPF, A-WT.) | 80 dB or more |
T.H.D (< 22 kHz LPF) | 0,1 % or less |
Frequency response 100Hz ~ 18kHz Input: -10 dBV, 1kHz based) | 0dB ± 3dB |
General | |
Ethernet (LAN) | RJ45, TCP/IP protocol 100/1000 Base-T |
LAN Extension | Output to EVAMATRIX on RJ45 (Dante®) – Input from EVAMATRIX on RJ45 (Dante®) CAT5 cable Maximum distance: 100m |
MTTF availability | Average failure time greater than 100,000 hours |
MTTR availability | Average repair time less than 20 minutes |
AES/EAE emergency power input | 24VDC |
OLED screen | 2,42“ |
Operating temperature | -10°C ~ +40°C – Humidity: 5 ~ 95% |
Weight | 1,29kg |
Dimensions (WxHxD) | 200 x 73 x 206 mm |
Accessories | AC power cord, Adapter, Gooseneck microphone, Euroblock termina |
Protocol and encryption | TCP/IP, Http, Https, SNMP V2c, IPv4, TLS1.2, SHA256, SSL, AES-256, Elliptic curve cryptography |
