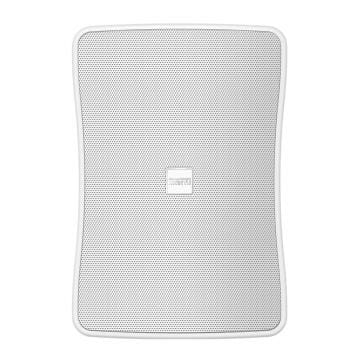

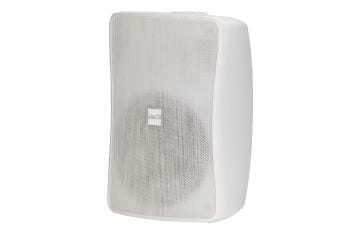

WS-80T/W

Speaker 10/20 / 40 / 80W 100V 8Ω – 6.5″ 2 Way

  • The WS range consists of elegant speaker suitable for the sound of places that require special care in terms of pure design and sound quality (bar, restaurant, reception room, conference room). This new range is optimized for the broadcast of atmosphere music and precise voice reproduction.
  • The WS range has 4 models from wideband WS-15T (2.5 '') to the 2-way WS-80T (6.5 '').
  • This range has been designed from broadband, low frequency and high frequency transducers, recently developed to produce a pure sound of high power and without distortion. In addition, 2-way models adopt an asymmetrical broadcast design to perfectly cover the audience area.
  • Thanks to the rear face selector, all 100V / 70V and 8 Ω powers can be adjusted.
  • They have an IP 54 protection index allowing their implementation as well indoors and outdoors.

Specifications

70V Transformer Taps80/40/20/10W
100V Transformer Taps80/40/20/10W
ConnectorScrew terminal 2P
Dimensions (W x H x D) (mm)210x311x169
Directivity @ 1 KHzHorizontal: 120° (Near Field) , 60° (Far Field) Vertical: +20° to -40° (on axis)
Frequency range100 Hz ~20 kHz
MaterialABS RESIN
Maximum SPL115dB
Nominal Impedance8 Ω
Power80W (AES)
Protection ratingIP54, IK08
Sensitivity dB (1W/1m)90
Type6.5" 2 way passive
Weight (Kg)3.57
Certification ce - Majorcom
Certification rohs - Majorcom
Certification bureau veritas - Majorcom
Certification iso - Majorcom
Certification dante - Majorcom
Certification EN54 - Majorcom
