Line array with 4 loudspeakers for voice alarm applications certified according to EN 54-24, suitable for voice announcements and music with excellent sound quality outdoors.
- Waveguide Technology

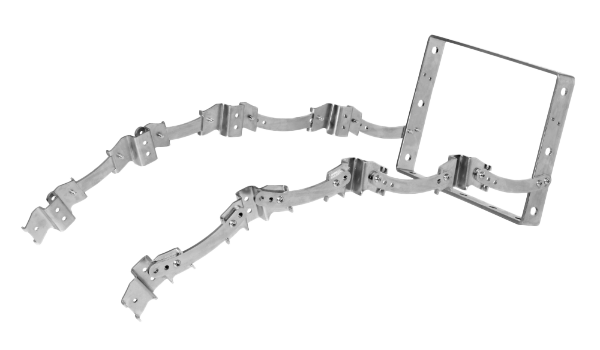

- Adjustable steel bracket
- IP66
These loudspeakers are also available individually (XS 100T VA).
All product details
Data Sheet
Specifications
| Power | 4 x 100/50/25 W |
| Impedance (100V) | 4 x 100/200/400 or 1×4 Ω |
| Bandwidth | 50-22.000 Hz (Tweeter 0dB) |
| Sensitivity (1W/1m) | 92 dB |
| Directivity (H-V) -6dB, 500Hz | 182°- 62° |
| Directivity (H-V) -6dB, 1KHz | 78° – 30° |
| Directivity (H-V) -6dB, 2KHz | 82° – 11° |
| Directivity(H-V) -6dB, 4KHz | 175° – 10° |
| Dimensions | 0° : 341 x 852 x 274 mm | 45° : 341 x 765 x 430 mm |
| IP Rating | IP66 |
| Weight | 30 kg |
| Mounting | Mounting bracket (included) |
| Connector | Screw terminal |
| Terminal diameter | 2,3 mm |
| Maximum cable passage | 4 mm² |
| Colour | White |
