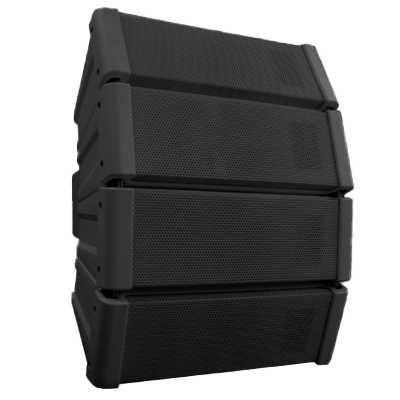

Compact line array speaker configured with 4 pre-assembled modules for high power and quality.
- Adjustable directivity to optimize the sound dispersion angle.
- Can be used both indoors and outdoors.
- Perfect for sports facilities (gyms, small stadiums, etc.) and lobbies (stations, airports, etc.).
All product details
Data Sheet
User Manual
Specifications
| Enclosure | Sealed or bass-reflex (removable sealing plate) |
| Power Handling Capacity | Continuous pink noise : 200 W | Continuous program : 600 W |
| Rated Impedance | 8Ω |
| Sensitivity (1W, 1m) | 96dB (60° mode), 97dB (45° mode), 98dB (30° mode), 99dB (15° mode) |
| Frequency Response | 70 – 20,000Hz (60° mode), 75 – 20,000Hz (45° mode), 80 – 20,000Hz (30° mode), 85 – 20,000Hz (15°mode) |
| Crossover Frequency | 4kHz |
| Directivity Angle | Horizontal : 100° (> 2000Hz) | Vertical : 60° (> 800Hz), 45° (> 1.2kHz), 30° (> 1.6kHz), 15° (> 3.2kHz) variable |
| Speaker Component | Low frequency : 12cm (5″) cone-type × 4 | High frequency : balanced dome-type × 12 |
| Input Terminal | 2-pin connector |
| Water Protection | IPX4( (install with the every speaker module downward) |
| Finish | Polypropylene, black |
| Dimensions (WxHxD) | 408 x 546 x 342 mm |
| Weight | 16 kg |
| Operating Temperature | –15°C to +50°C |
