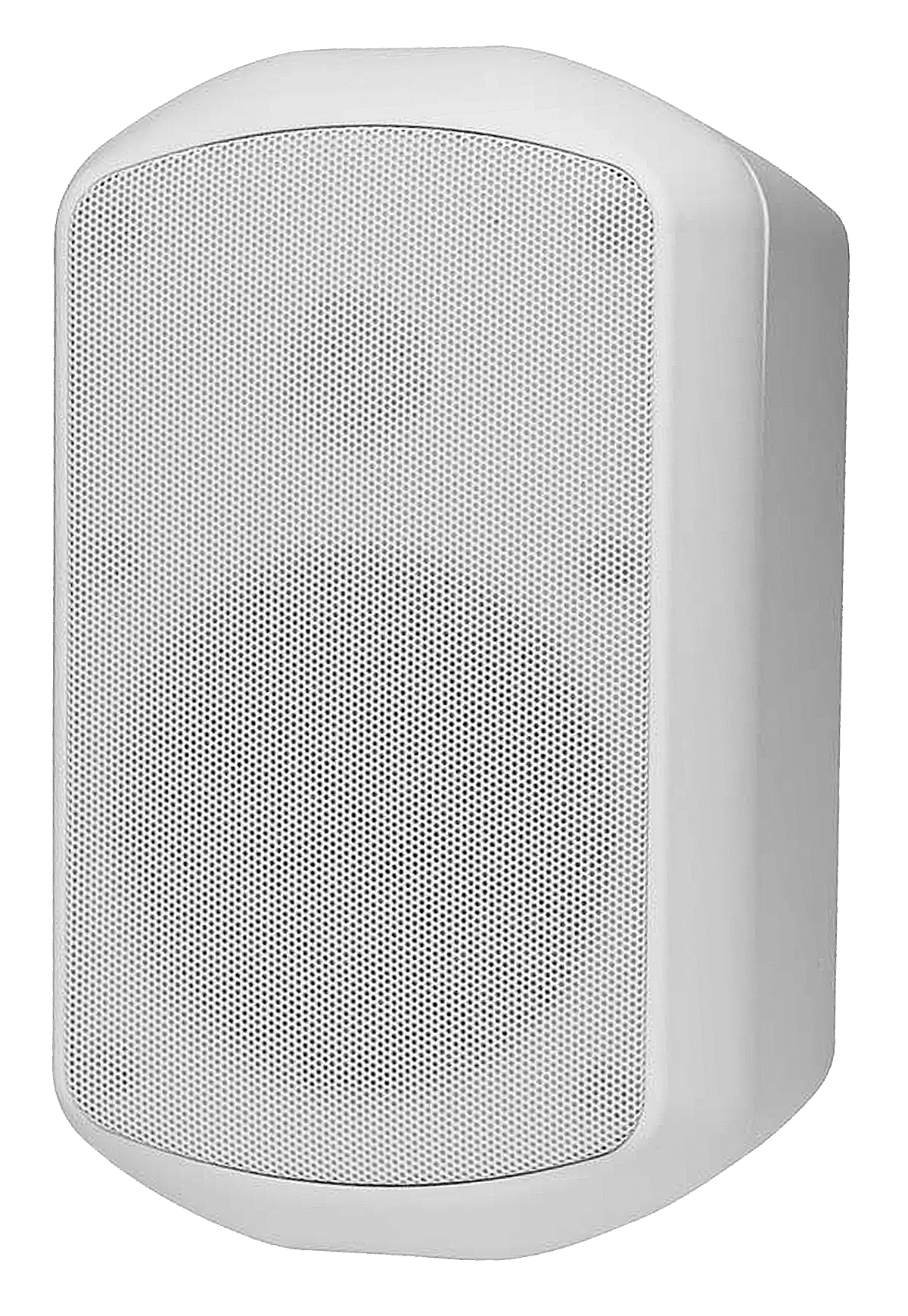

- The MS Serie compact wall speakers impress by a sophisticated design and by its powerful sound.
- Perfectly suitable for installations where high sound quality is needed..
- The 30W powered speaker is equipped with a high quality 2-way system and a 100V transformer with 3 power adjustments.
- The impact-resistant, UV-resistant ABS plastic housing assures enduring stability.
- For additional reliability, a thermal fuse and a wetness impregnation of the speaker is provided.
- The speaker is also secured with protection class IP65 against the risks of environmental influences.
All product details
Data Sheet
User Manual
EASE files
BIM files
Specifications
| Body & grill | ABS |
| Nominal power | 30 W |
| Nominal Impedance | 333 Ω |
| Power 100V Line | 30 / 15 / 7,5/ 3,75 W |
| Impedance | 333 / 667 / 1 333 / 4 000 Ω |
| Bandwidth | 50 – 23 500 Hz |
| Sensitivity (1W/1m) | 85 dB |
| SPL MAX 1m | 105,6 dB |
| Directivity (H-V) @ 500Hz | 360° – 360° |
| Directivity (H-V) @ 1kHz | 200° – 160° |
| Directivity (H-V) @ 2kHz | 130° – 100° |
| Directivity (H-V) @ 4kHz | 120° – 40° |
| Speaker | 5’’ |
| Dimensions (WxHxD) | 160 x 262 x 153 mm |
| Weight | 2,5 kg |
| Operating temperature | -25°C ~+70°C |
| Protection Index | IP 65 – IK 09 |
