- The WS range consists of elegant speaker suitable for the sound of places that require special care in terms of pure design and sound quality (bar, restaurant, reception room, conference room). This new range is optimized for the broadcast of atmosphere music and precise voice reproduction.

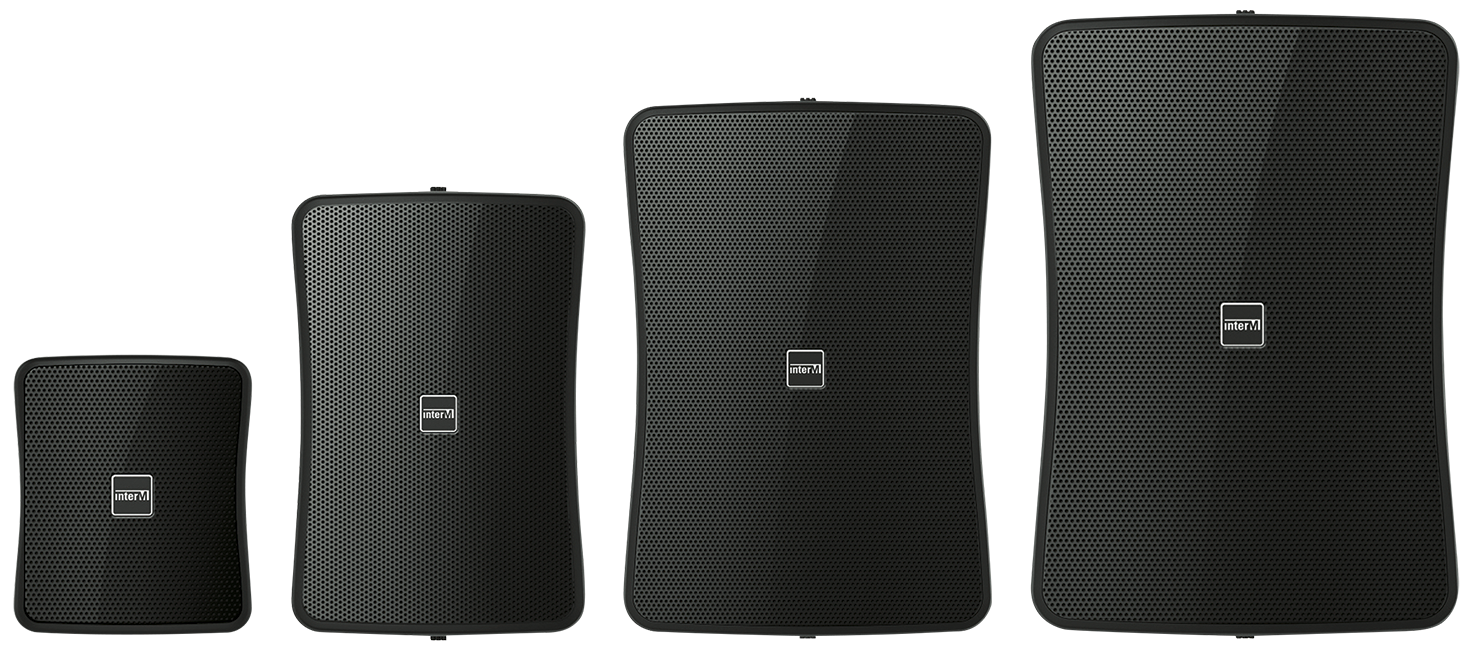

- The WS range has 4 models from wideband WS-15T (2.5 ”) to the 2-way WS-80T (6.5 ”).
- This range has been designed from broadband, low frequency and high frequency transducers, recently developed to produce a pure sound of high power and without distortion. In addition, 2-way models adopt an asymmetrical broadcast design to perfectly cover the audience area.
- Thanks to the rear face selector, all 100V / 70V and 8 Ω powers can be adjusted.
- They have an IP 54 protection index allowing their implementation as well indoors and outdoors.
Downloads
Data Sheet
CAD Files
Specifications
| 70V Transformer Taps | 15/10/5/3W |
| 100V Transformer Taps | 15/10/5/3W |
| Connector | Screw terminal 2P |
| Dimensions (W x H x D) (mm) | 92x120x114 |
| Directivity | 90° |
| Frequency range | 110 Hz~20 kHz (-10dB) |
| Material | ABS RESIN |
| Maximum SPL | 102dB |
| Nominal Impedance | 8 Ω |
| Power | 15W (AES) |
| Protection rating | IP54 |
| Sensitivity dB (1W/1m) | 84 |

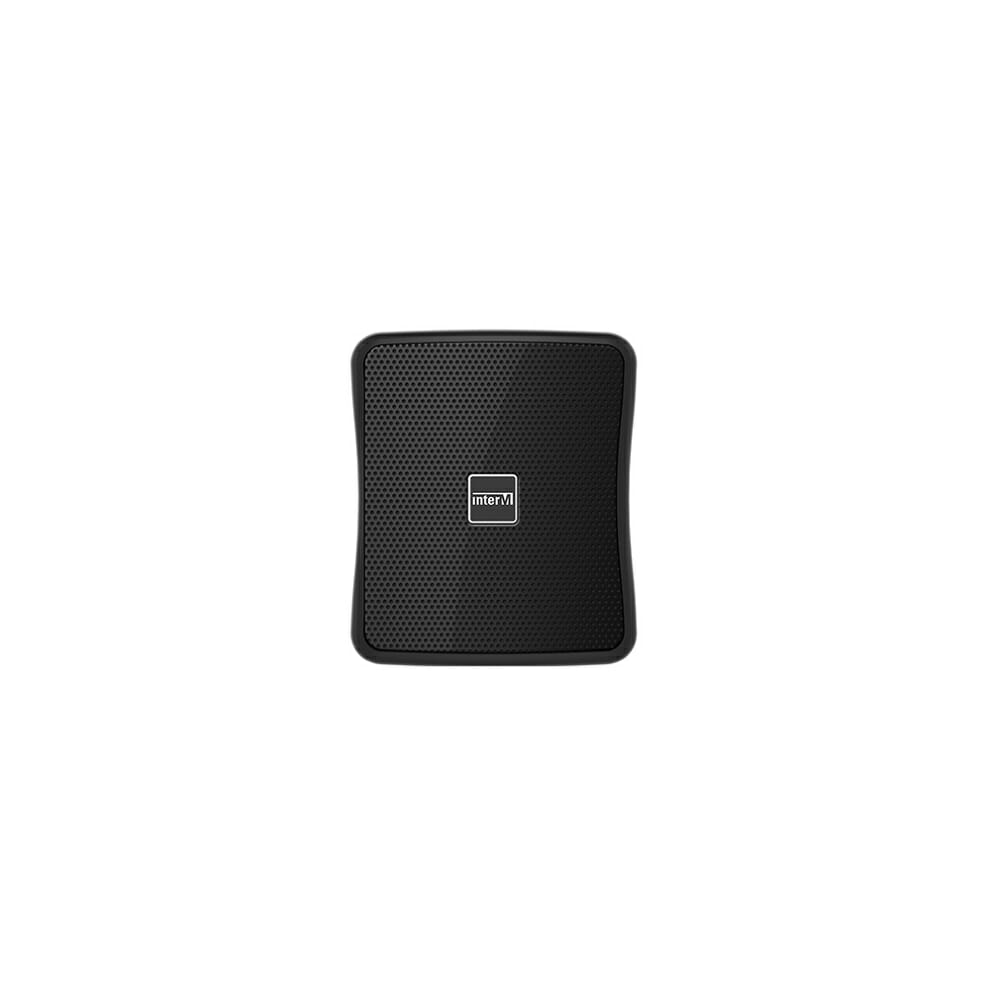

| Type | 2.5” 1 way full range |
| Weight (Kg) | 0.9 |
