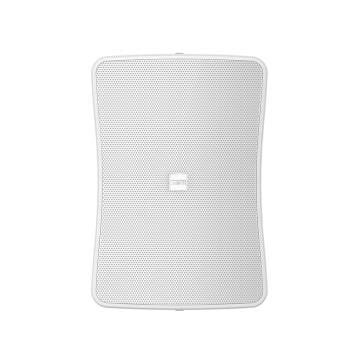

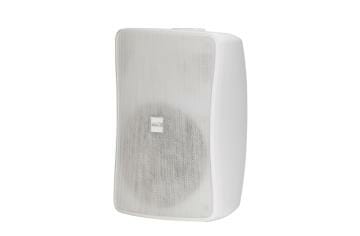

WS-50T/W

Speaker 6.5 / 13/25 / 50W 100V 8Ω – 5″ 2 Way

  • The WS range consists of elegant speaker suitable for the sound of places that require special care in terms of pure design and sound quality (bar, restaurant, reception room, conference room). This new range is optimized for the broadcast of atmosphere music and precise voice reproduction.
  • The WS range has 4 models from wideband WS-15T (2.5 ”) to the 2-way WS-80T (6.5 ”).
  • This range has been designed from broadband, low frequency and high frequency transducers, recently developed to produce a pure sound of high power and without distortion. In addition, 2-way models adopt an asymmetrical broadcast design to perfectly cover the audience area.
  • Thanks to the rear face selector, all 100V / 70V and 8 Ω powers can be adjusted.
  • They have an IP 54 protection index allowing their implementation as well indoors and outdoors.

Downloads

Data Sheet

FT WS SERIE EN

CAD Files

WS-50T_CAD

Specifications

70V Transformer Taps50/25/13/6.5/3.3W
100V Transformer Taps50/25/13/6.5W
ConnectorScrew terminal 2P
Dimensions (W x H x D) (mm)173x250x150
Directivity @ 1 KHzHorizontal: 120° (Near Field) , 60° (Far Field) Vertical: +20° to -40° (on axis)
Frequency range100 Hz ~20 kHz
MaterialABS RESIN
Maximum SPL110dB
Nominal Impedance8 Ω
Power50W AES
Protection ratingIP54
Sensitivity dB (1W/1m)87
Type5” 2 way passive
Weight2.37
