The audio DSP shall be a 1 RU rack mountable chassis and include configurable signal processing, including but not limited to: signal routing and mixing, equalization, filtering, dynamics, delay, as well as Automatic Gain Control (AGC), Ambient Noise Compensation (ANC), Adaptive Feedback Control (AFC), Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS) and Automatic Voice Tracking Camera Control with no additional licenses. The audio DSP shall be controlled, configured, and monitored via DNM software, UDP or serial control.
The audio DSP shall be compliant to UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition), UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), and IEC/EN 62368-1 (2nd edition); EN 55032:2015, EN 61000-3-2:2014, EN 61000- 3-3:2013, EN 55035:2017, FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, and CISPR13.

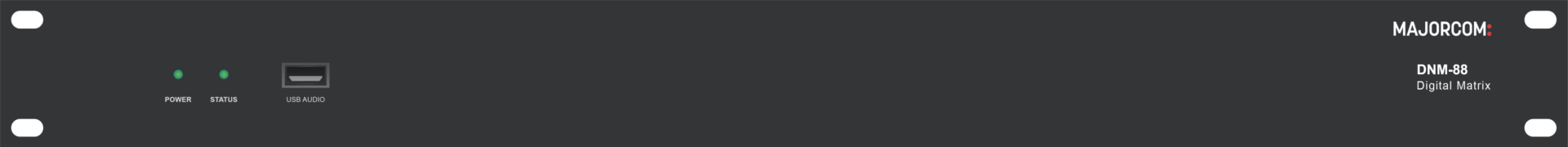

Warranty shall be 2 years. The audio DSP shall be MAJORCOM matrix DNM-88.
|Processor||ADI SHARC 21489 @450 MHz SIMD|
|Sampling rate/quantification bits||48K/24bit|
|Number of analog input and output channels||8x8|
|Input gain||0/3/6/9/12/15/18/21/24/27/30 33/36/39/42/45/48 dBu|
|Phantom power supply||+48V/10mA max|
|Frequency response (20 ~ 20kHz)||±0.3dB|
|Input dynamic range||110dB|
|Output dynamic range||112dB|
|Channel isolation at 1kHz||108dB|
|Input impedance (balanced connection)||5.4KΩ|
|Output impedance (balanced connection)||600Ω|
|Power supply||AC110~240V, 50Hz/60Hz|
|Dimensions (W x D x H)||482x260x45mm|
|Weight with packaging||4 KG|
