The DNM matrices embed Analog Device’s SHARC 21489, a powerful digital audio signal processing platform based on a 64-bit floating-point DSP engine. This series offers a wide range of digital processing tools for designing, configuring and optimizing audio systems. The software can fully control and manage the entire DNM series, as well as all their processing functions, including :
- AFC (adaptive anti-feedback control),
- AEC (acoustic echo cancellation),
- ANS (automatic noise cancellation),
- ANC (ambient noise compensation),
- “Bessel”, “Butterworth” and “Linkwitz-Riley” filters,
- AGC (automatic gain control),
- Ducker (multiple priority management by modulation detection),
- PEQ,
- GEQ,
- Delay,
- Crossover,
- Automatic mixing with gain sharing,
- And much more !
The DNM software offers an intuitive graphical user interface, which provides quick and easy access to all channels in a single window. In this user-friendly environment, the audio system designer or installer can clearly view and adjust all input levels, DSP audio processing parameters, mastering and output levels.
All product details
Data Sheet
User Manual
Prescription text
The audio DSP shall have 8 balanced inputs and 8 balanced output channels for microphone or line-level analog audio signals, each independently controllable with removable euro block connectors. The DSP shall have an Ethernet connection for control and programming on a separate RJ-45 jack, USB audio, and 8 channels of configurable GPIO and 2 serial ports on a removable euro block.
The audio DSP shall be a 1 RU rack mountable chassis and include configurable signal processing, including but not limited to: signal routing and mixing, equalization, filtering, dynamics, delay, as well as Automatic Gain Control (AGC), Ambient Noise Compensation (ANC), Adaptive Feedback Control (AFC), Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS) and Automatic Voice Tracking Camera Control with no additional licenses. The audio DSP shall be controlled, configured, and monitored via DNM software, UDP or serial control.
The audio DSP shall be compliant to UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition), UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), and IEC/EN 62368-1 (2nd edition); EN 55032:2015, EN 61000-3-2:2014, EN 61000- 3-3:2013, EN 55035:2017, FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, and CISPR13.

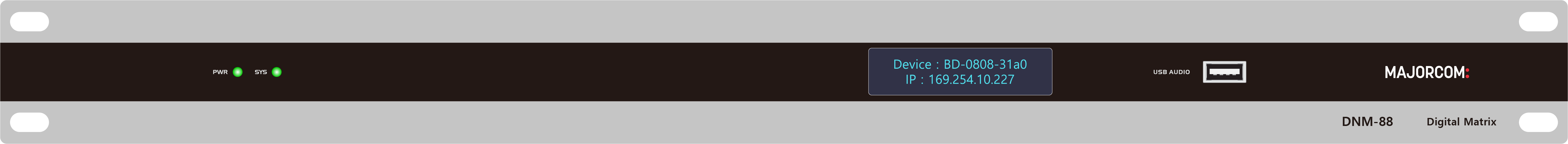

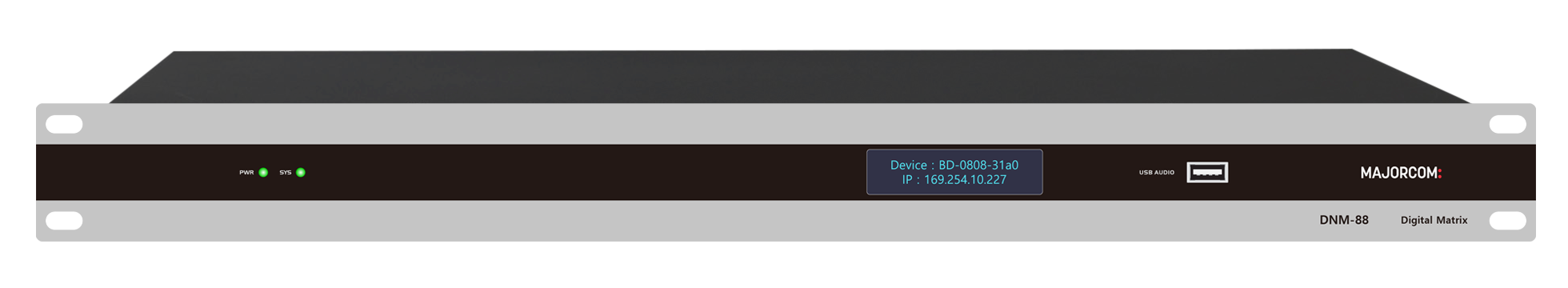

Warranty shall be 2 years. The audio DSP shall be MAJORCOM matrix DNM-88.
Specifications
| Processor | ADI SHARC 21489 @450 MHz SIMD |
| Sampling rate/quantification bits | 48K/24bit |
| Number of analog input and output channels | 8×8 |
| Input gain | 0/3/6/9/12/15/18/21/24/27/30 33/36/39/42/45/48 dBu |
| Phantom power supply | +48V/10mA max |
| Frequency response (20 ~ 20kHz) | ±0.3dB |
| Maximum level | +18dBu |
| THD+N | <-94dB @4dBu |
| Input dynamic range | 110dB |
| Output dynamic range | 112dB |
| Channel isolation at 1kHz | 108dB |
| Input impedance (balanced connection) | 5.4KΩ |
| Output impedance (balanced connection) | 600Ω |
| System delay | <3ms |
| Power supply | AC110~240V, 50Hz/60Hz |
| Dimensions (W x D x H) | 482x260x45mm |
| Weight with packaging | 4 KG |
